KY-032 KY 032 IR INFRARED AVOIDANCE SENSOR MODULE INFRARED 4 PIN

Detail KY-032 KY 032 IR INFRARED AVOIDANCE SENSOR MODULE INFRARED 4 PIN

Hi #RekanEasyWare ...
EasyWare Part#: EP000678

Sensing distance 2-40 cm, distance, good anti-jamming capability. (Note: The infrared sensor can not detect all objects get the same distance, objects of different colors of light reflectance of different objects closer darker black shorter distance detected, the sensor 2-40 cm is measured against the white wall of)
Speed, suitable for smart car obstacle avoidance, black and white line tracking, anti-drop, product counters, cutting lines, liquid level detection.
This sensor is made with black and white lines tracing the car ran without black line on white paper, available in concrete The yellow complex environment such as the black line patrol track. As long as the black line around the slightly lighter color than black can, eliminating the traditional moves, so that environmental layout easier.

SPESIFIKASI :
- Working voltage: DC 3.3V-5V
- Working current: 20mA
- Working temperature: -10degree+50degree
- Detection distance : 2-40cm
- IO interface: 4 line (-/+/S/EN
- Output signal: TTL Level
- Adjusting mode: Multi resistance regulatio
- Effective angle: 35°
- Size: 4.5x1.1cm(approx)

KELENGKAPAN :
- 1pcs KY-032 Obstacle Avoidance Sensor Module

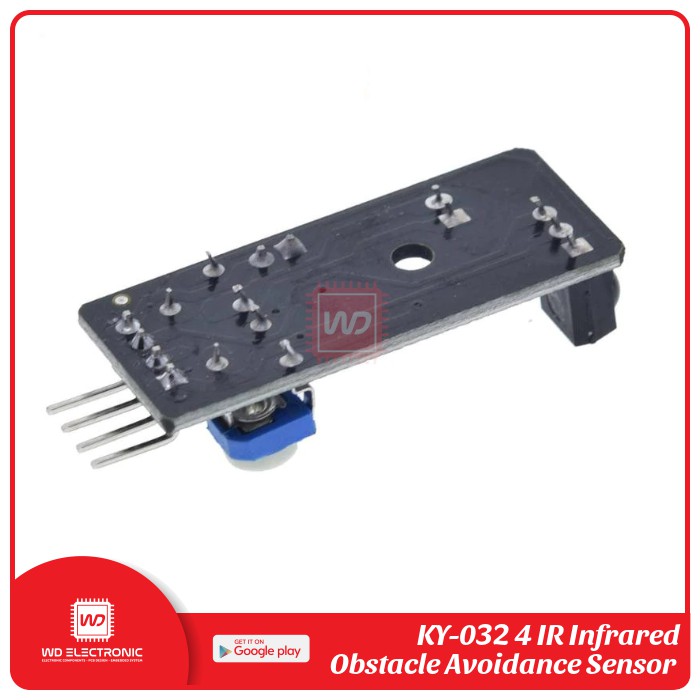

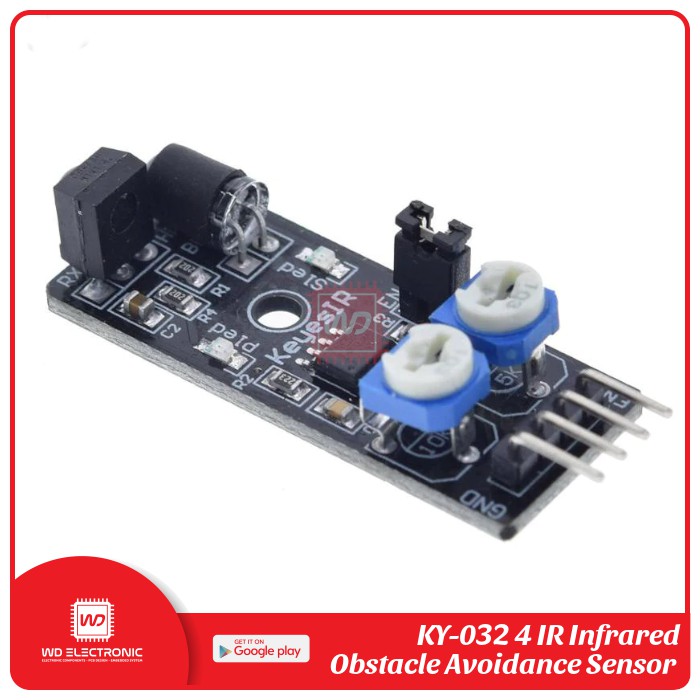

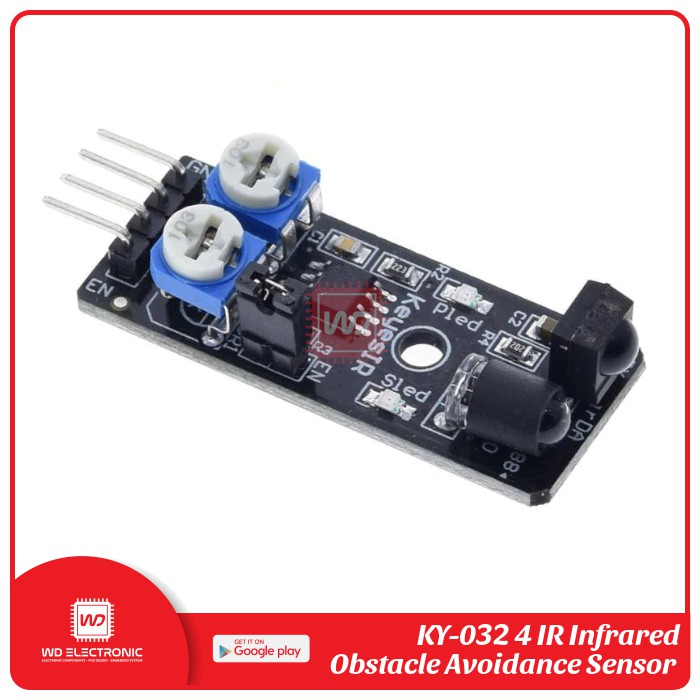

Gambar produk
