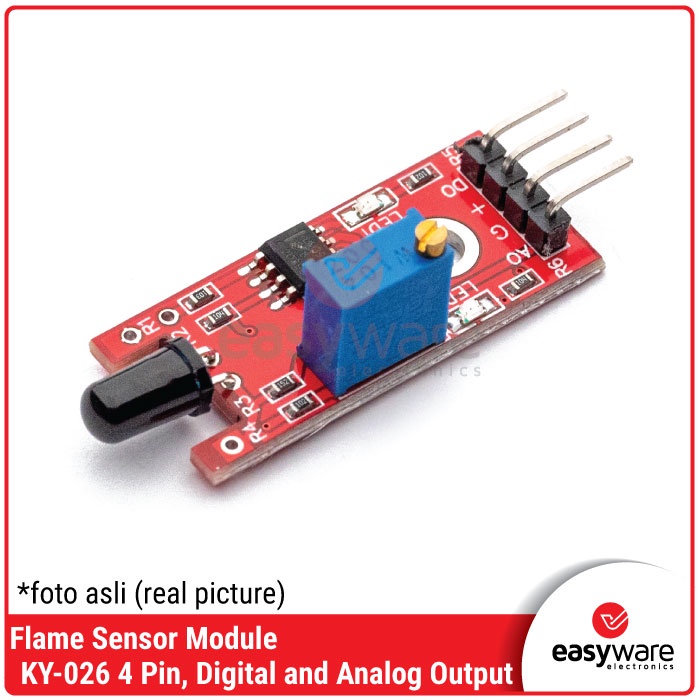

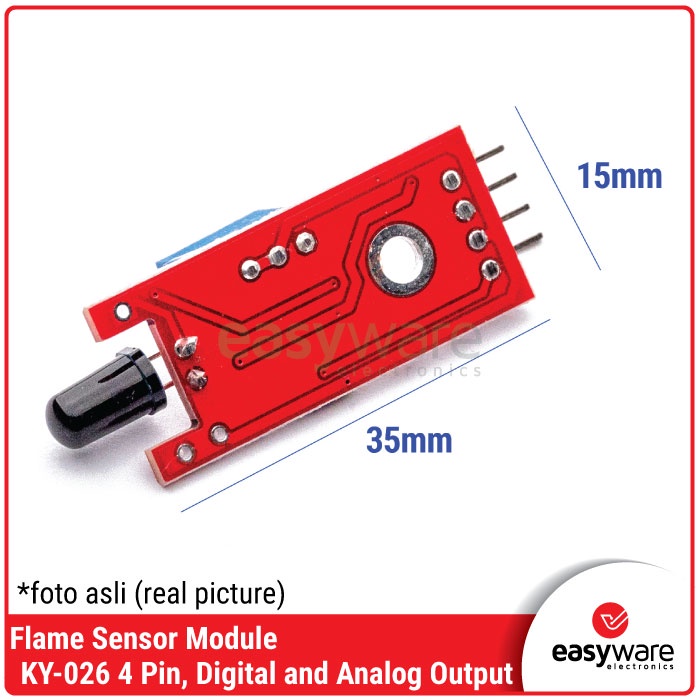

Detail KY-026 Flame Sensor Module 4 Pin Sensor Api Module 4P KY 026
Hi #RekanEasyWare ... EasyWare Part#: EP000593
The Flame Sensor Module can detect flames in the 760 – 1100 nanometer wavelength range. Small flames like a lighter flame can be detected at roughly 0.8m. The detection angle is roughly 60 degrees and the sensor is particularly sensitive to the flame spectrum. An on-board LM393 op-amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output and sensitivity can be adjusted via the blue potentiometer.
Fitur: - High Photo Sensitivity. - Fast Response Time. - Sensitivity adjustable. - Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm. - Detection range: up to 100 cm. - Adjustable detection range. - Detection angle about 60 degrees, it is sensitive to the flame spectrum. - Comparator chip LM393 makes module readings stable. - Operating voltage 3.3V-5V. - Digital and Analog Output. - Power indicator and digital switch output indicator.
