Detail KY-022 INFRARED SENSOR RECEIVER MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP000641

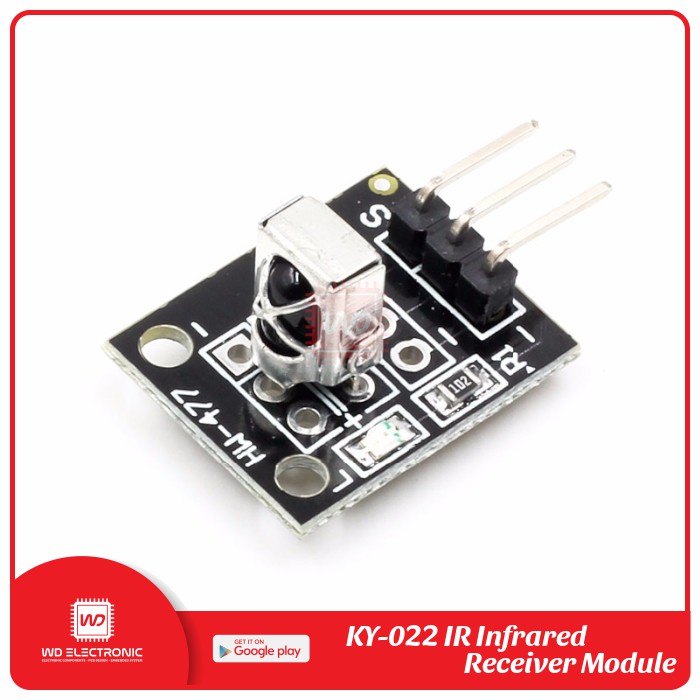

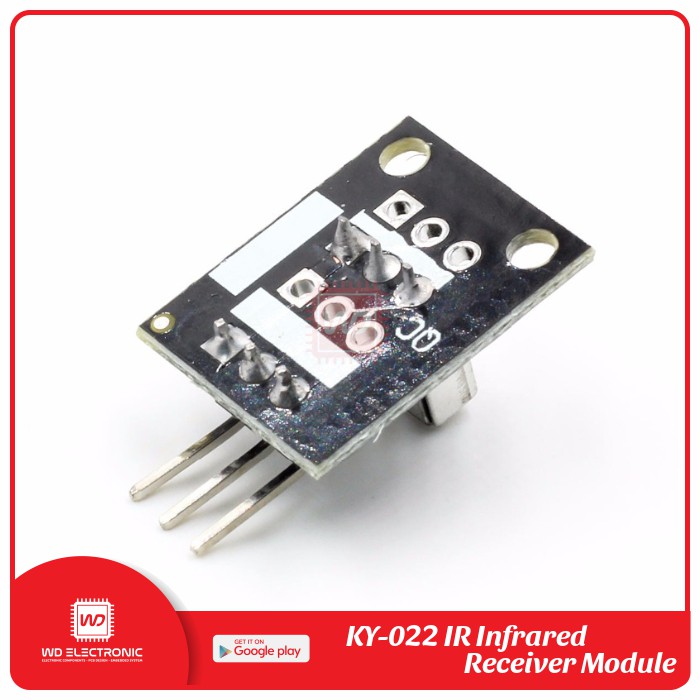

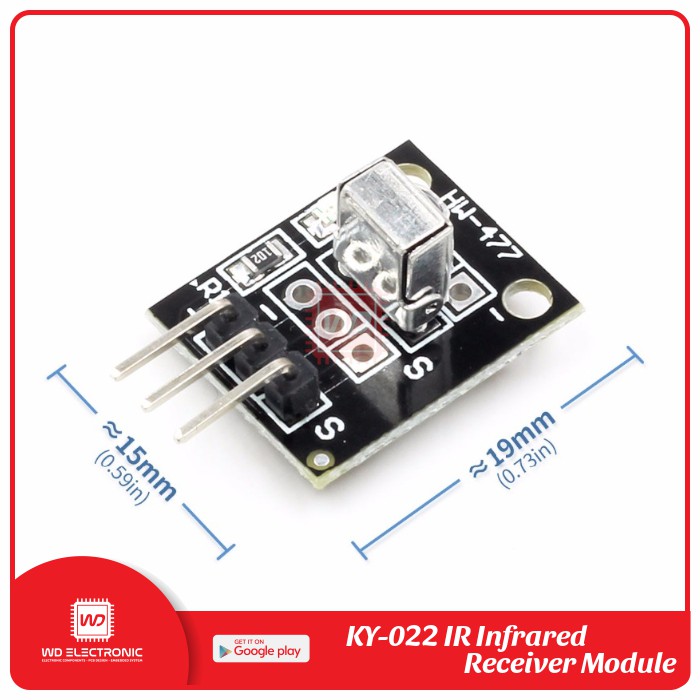

This module consists of a 1838 IR receiver, a 1k resistor and a LED. It works together with the KY-005 IR transmitter module. Compatible with popular electronic platforms like Arduino, Raspberry Pi and ESP8266.

Fitur dan Spesifikasi:
* Operating Voltage: 2.7 to 5.5V
* Operating Current: 0.4 to 1.5mA
* Reception Distance: 18m
* Reception Angle: 45
* Carrier Frequency: 38KHz
* Low Level Voltage: 0.4V
* High Level Voltage: 4.5V
* Ambient Light Filter: up to 500LUX

Kelengkapan:
* 1pcs KY-022 INFRARED SENSOR RECEIVER MODULE
