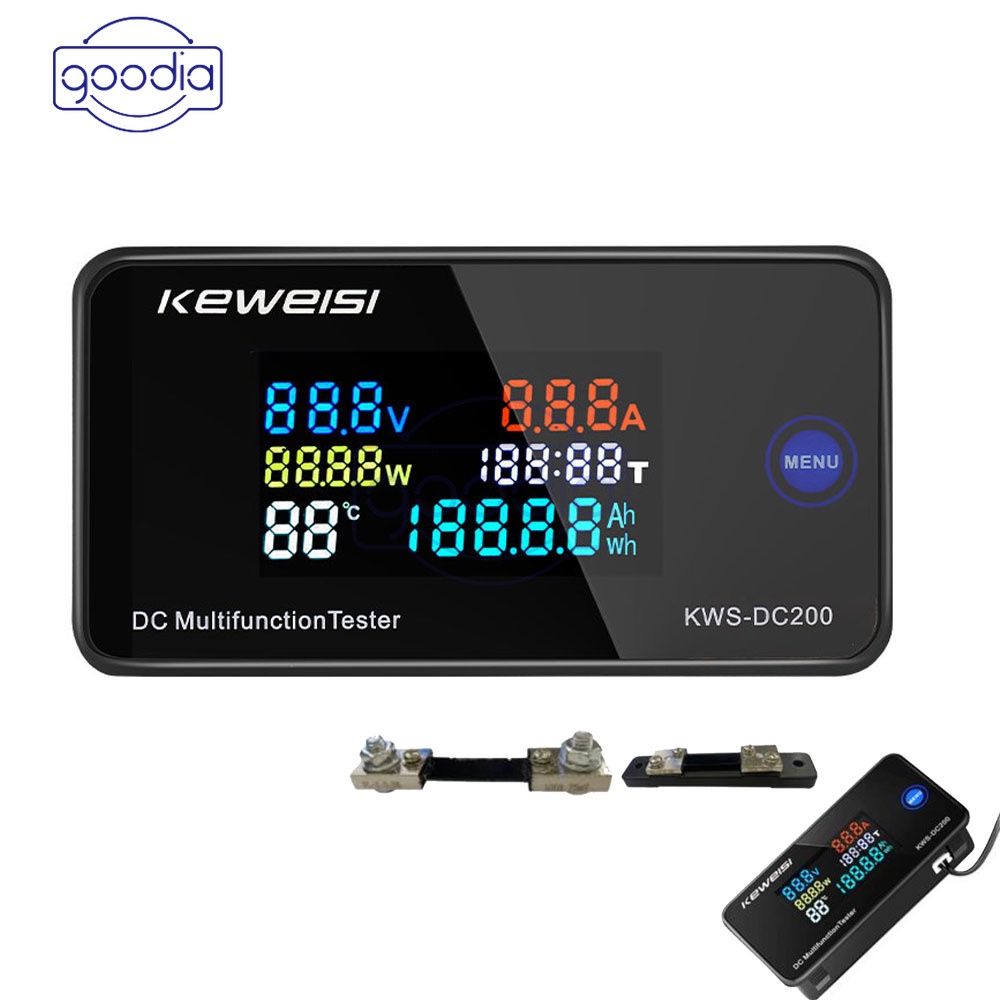

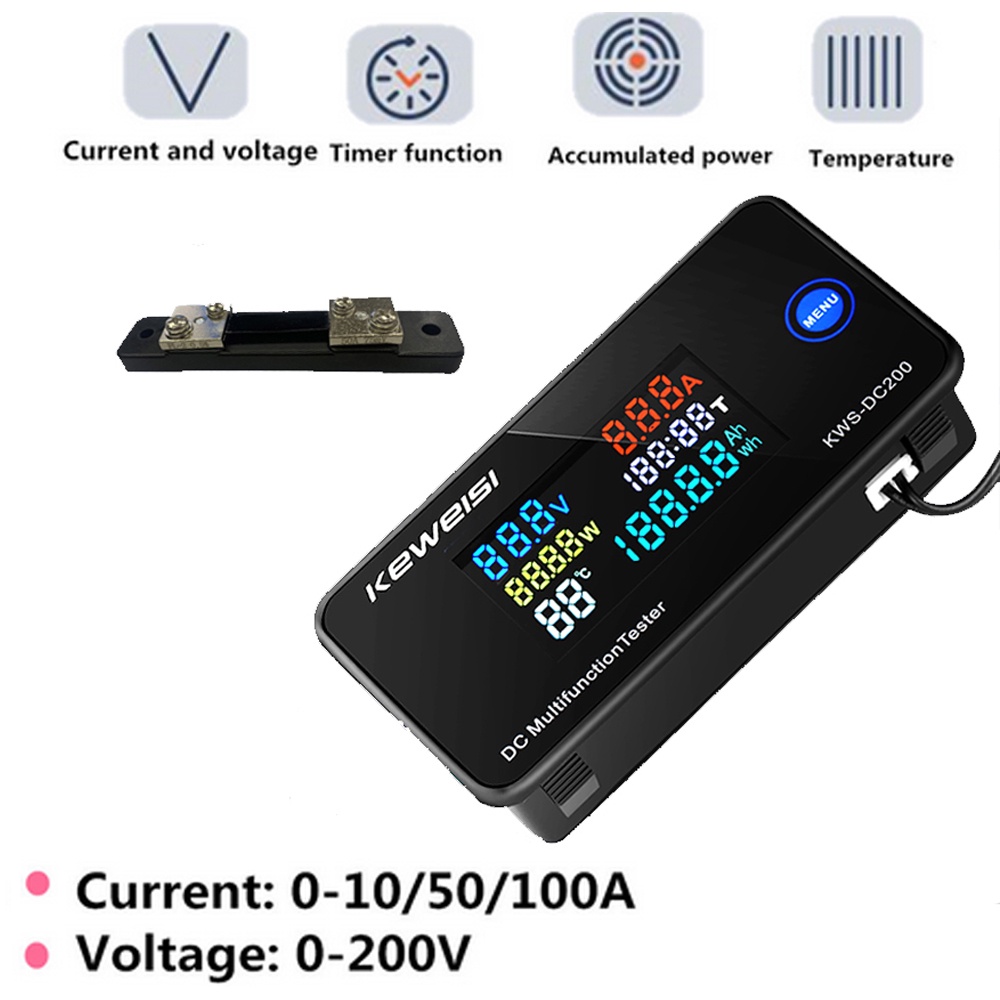

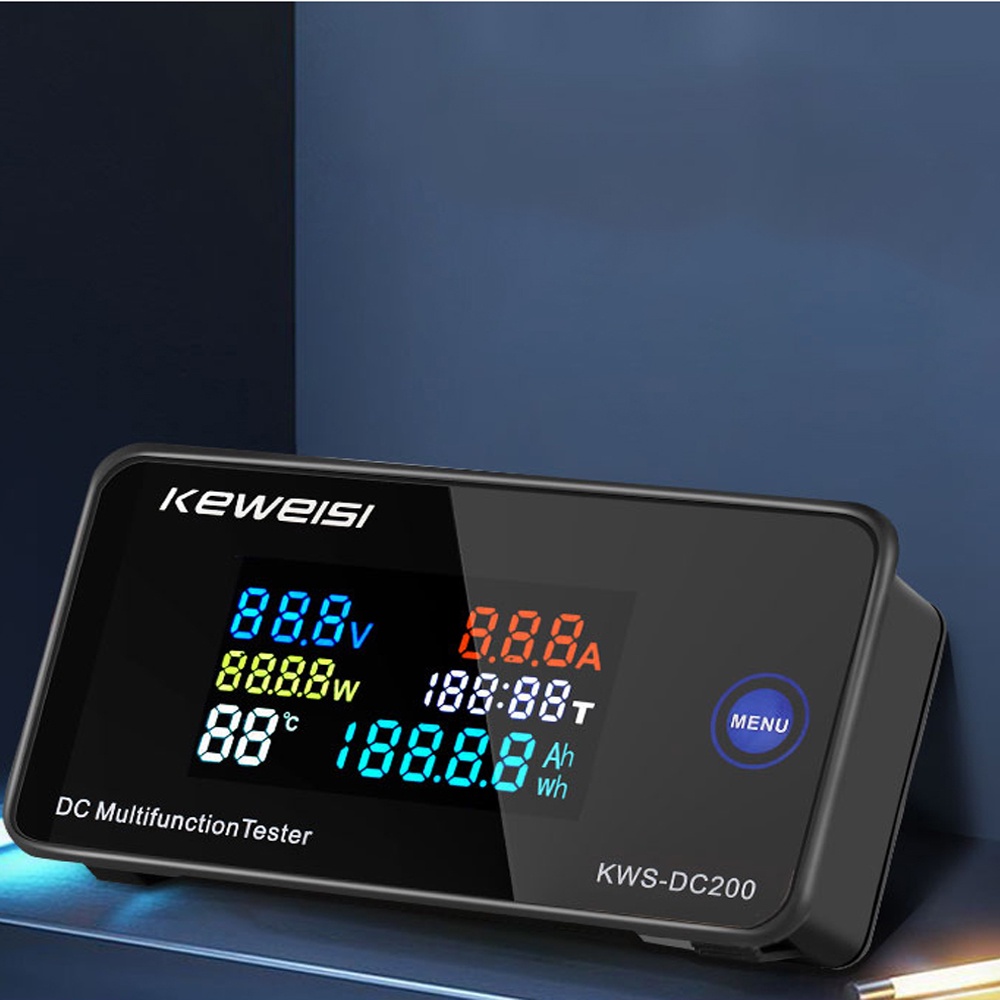

KWS-DC200 DC 0-200V 10/50/100A LED Voltage Current Temperature Digital Meter Built-in Shunt

Detail KWS-DC200 DC 0-200V 10/50/100A LED Voltage Current Temperature Digital Meter Built-in Shunt

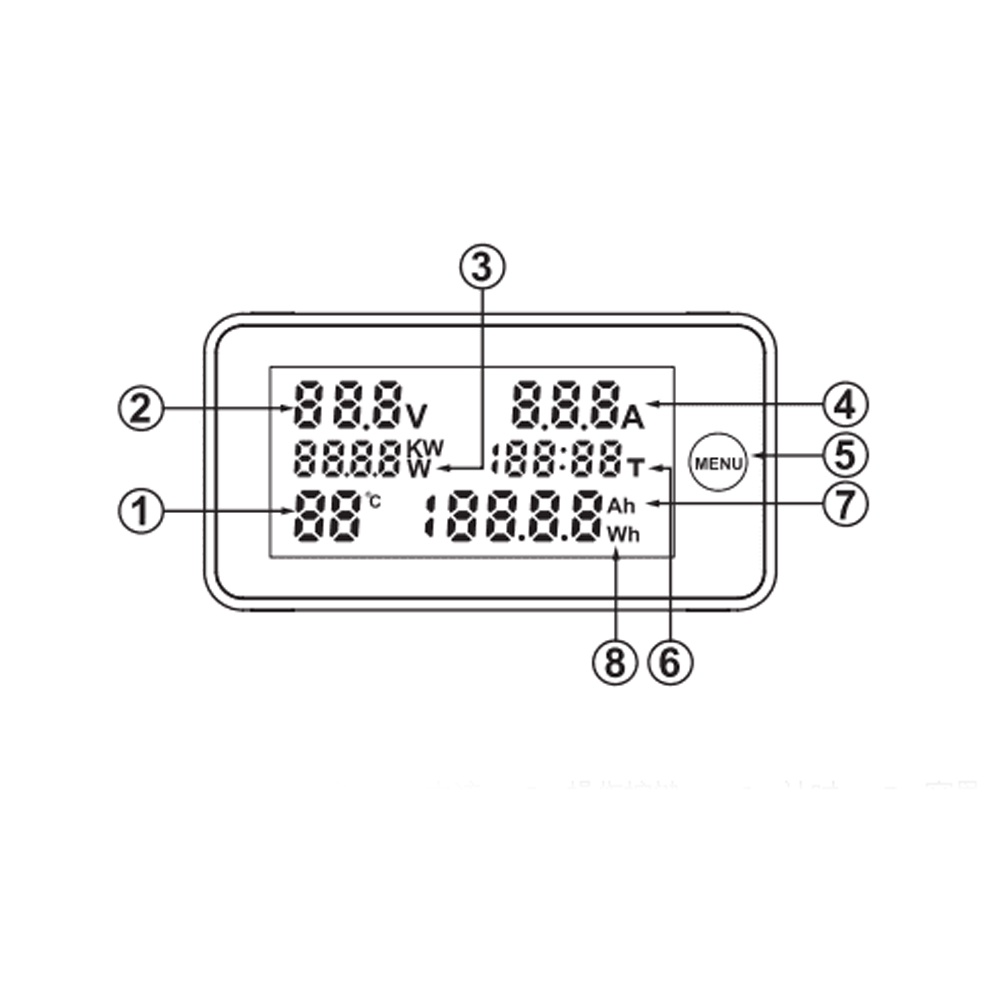

Description:
①: Temperature
②: Voltage
③: Power
④: Current
⑤: Operating buttons
⑥: Timing
⑦: Capacity
⑧: Electricity

DC0-200V 10A Built-in shunt

Product Features:

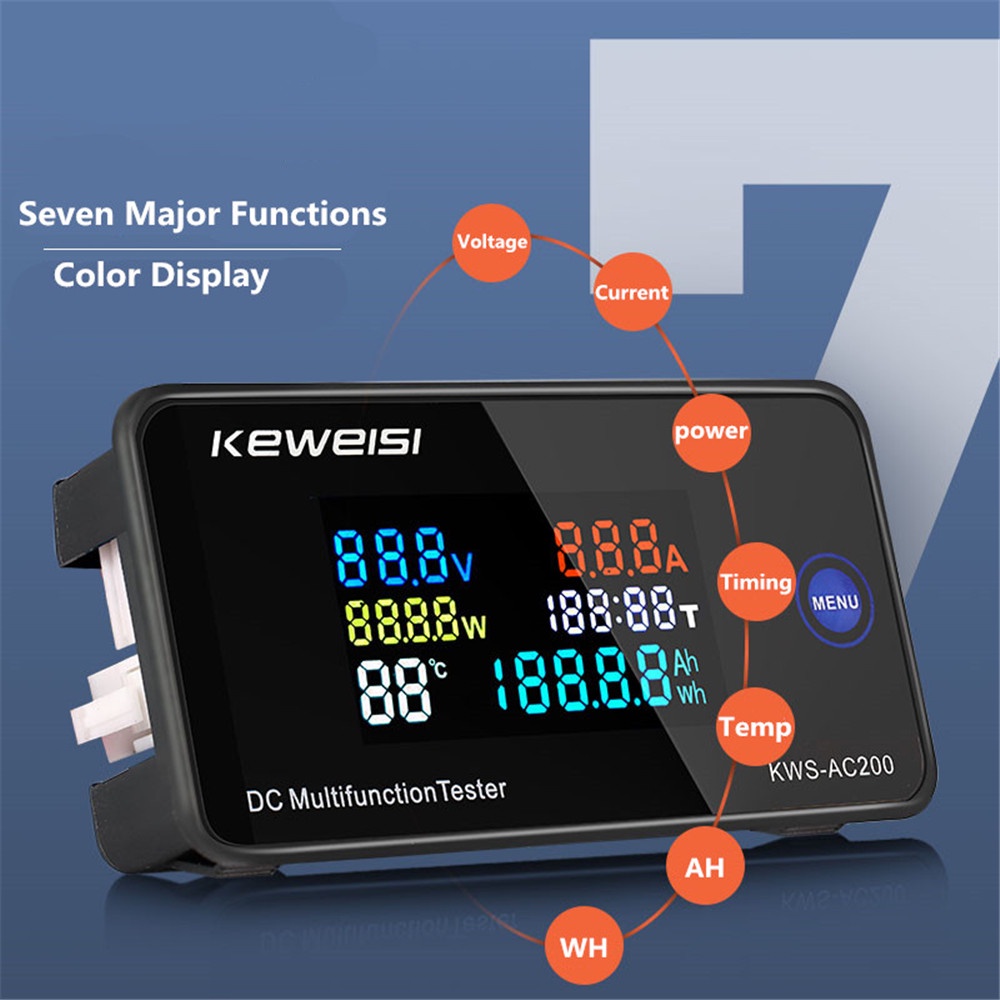

1. Voltage, current, power, timing, temperature, capacity, electricity.
2. The capacity, power, and timing can be cleared.
3. Timing, capacity and power have power-off memory function.
4. The direct power supply of this product can measure 8-120V, and the external power supply can measure 0-200V.
Power supply voltage: 8-120V
Test voltage: 0-200v
Current: 0-10A
Work rate: 0-2000w
Ampere hour: 0-19999Ah
Time: 0-200H
Temperature: -9℃-99℃
Instructions:
Click the MENU button on the panel to view the ampere-hour and watt-hour usage.
Long press the MENU button for 3 seconds to reset the three data of timing, ampere-hour, and watt-hour to zero.
The direct power supply of this product can measure 8-120V.
It can measure 0-200V when using external power supply.


*******************************************

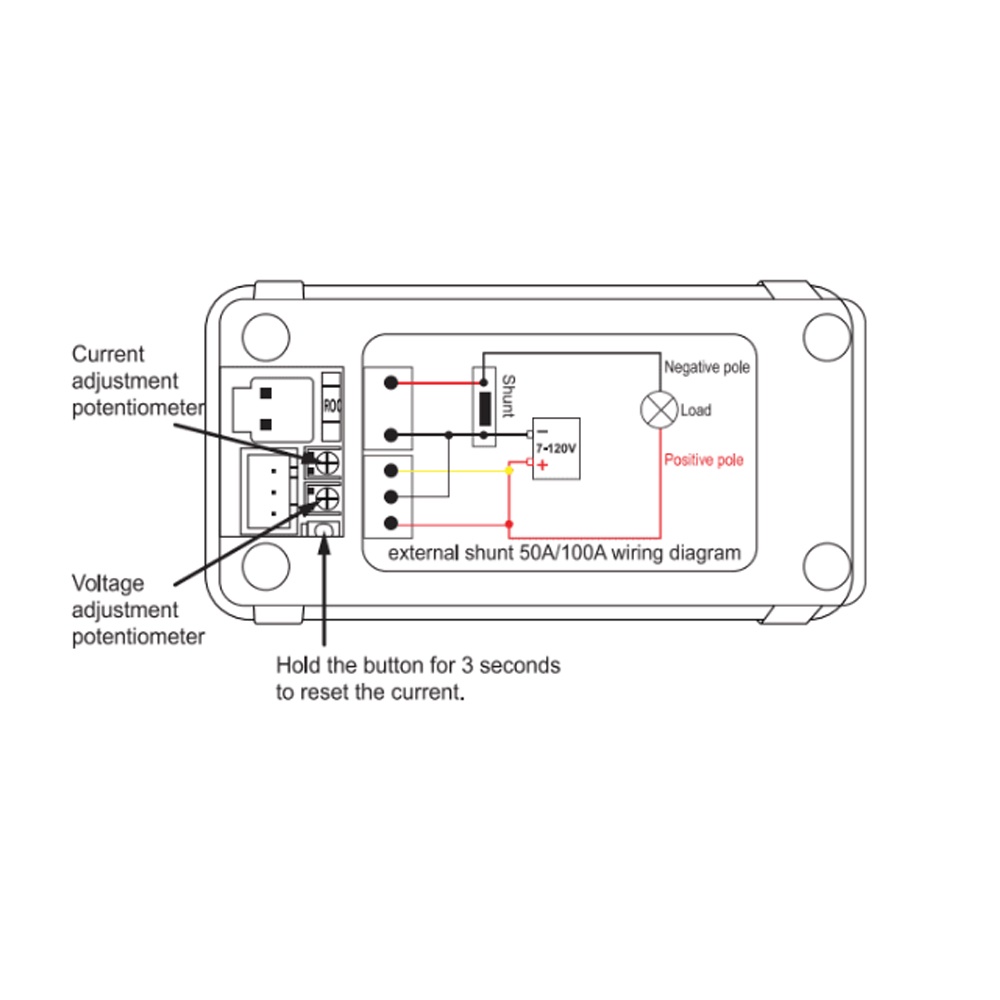

DC0-200V with 50A shunt

Product Features:
1. Voltage, current, power, timing, temperature, capacity, electricity.
2. The capacity, power, and timing can be cleared.
3. Timing, capacity and power have power-off memory function.
4. The direct power supply of this product can measure 8-120V, and the external power supply can measure 0-200V.

Power supply voltage: 8-120V
Test voltage: 0-200v
Current: 0-50A
Work rate: 0-10000w
Ampere hour: 0-19999Ah
Time: 0-200H
Temperature: -9℃-99℃

Instructions:
Click the MENU button on the panel to view the ampere-hour and watt-hour usage.
Long press the MENU button for 3 seconds to reset the three data of timing, ampere-hour, and watt-hour to zero.
The direct power supply of this product can measure 8-120V.
It can measure 0-200V when using external power supply.



***********************************************

DC0-200V with 100A shunt

Product Features:
1. Voltage, current, power, timing, temperature, capacity, electricity.
2. The capacity, power, and timing can be cleared.
3. Timing, capacity and power have power-off memory function.
4. The direct power supply of this product can measure 8-120V, and the external power
supply can measure 0-200V.

Power supply voltage: 8-120V
Test voltage: 0-200v
Current: 0-100A
Power: 0-20000w
Ampere hour: 0-19999Ah
Timing: 0-200H
Temperature: -9℃-99℃

Instructions:
Click the MENU button on the panel to view the ampere-hour and watt-hour usage.
Long press the MENU button for 3 seconds to reset the three data of timing, ampere-hour, and watt-hour to zero.
The direct power supply of this product can measure 8-120V.
It can measure 0-200V when using external power supply.
