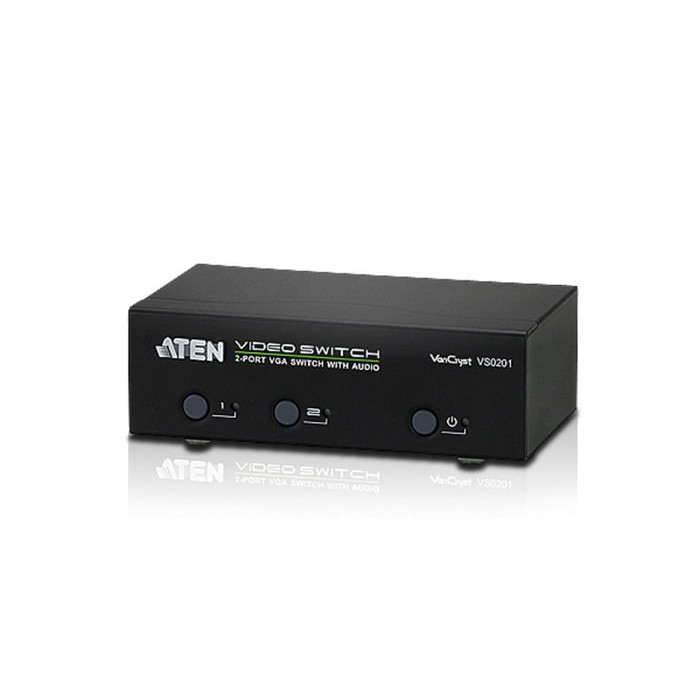

KVM - Aten - 2-Port VGA/Audio Switch VS0201

Detail KVM - Aten - 2-Port VGA/Audio Switch VS0201

2-Port VGA/Audio Switch
VS0201
The VS0201 2-Port VGA Switch with Audio allows you to connect two audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.

VS0201 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0201 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection.

The VS0201 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display.

Package Contents

1x VS0201 2-Port VGA Switch with Audio
1x Power Adapter
1x User Instructions

Note: IR extension cable and IR Remote control sold separately.

Displays the video output of two computers on a single monitor or projector
Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
Superior video quality up to 1920 x 1440
Long-distance transmission up to 65 m *
Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
Video DynaSync Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Built-in bi-directional RS-232 serial port for high-end system control **
RS-232 Control:
Power On Detection if one VGA source is powered off, the VS0201 will automatically switch to the next powered-on
source
Auto Switching sets the priority for auto switching to a connected port
Pushbutton Lock locks use of the front panel pushbuttons
