Konverter Step Up Down Power Dc-Dc 20a 300w

Detail Konverter Step Up Down Power Dc-Dc 20a 300w

Characteristics:
With a wide range of Input Voltage of 6 V to 40 V. the Converter Reducer can accurately adjust the Output Voltage and current.
The Efficiency can be up to 96%, measured in 20a, convert 24 V to 12 V.
75 V / 80A is designed with large double mos Tube.
Electrolytic capacitor high frequency of low resistance, Low resistance, stable output.
Wiring is convenient with these large Screw Terminals 30A current.

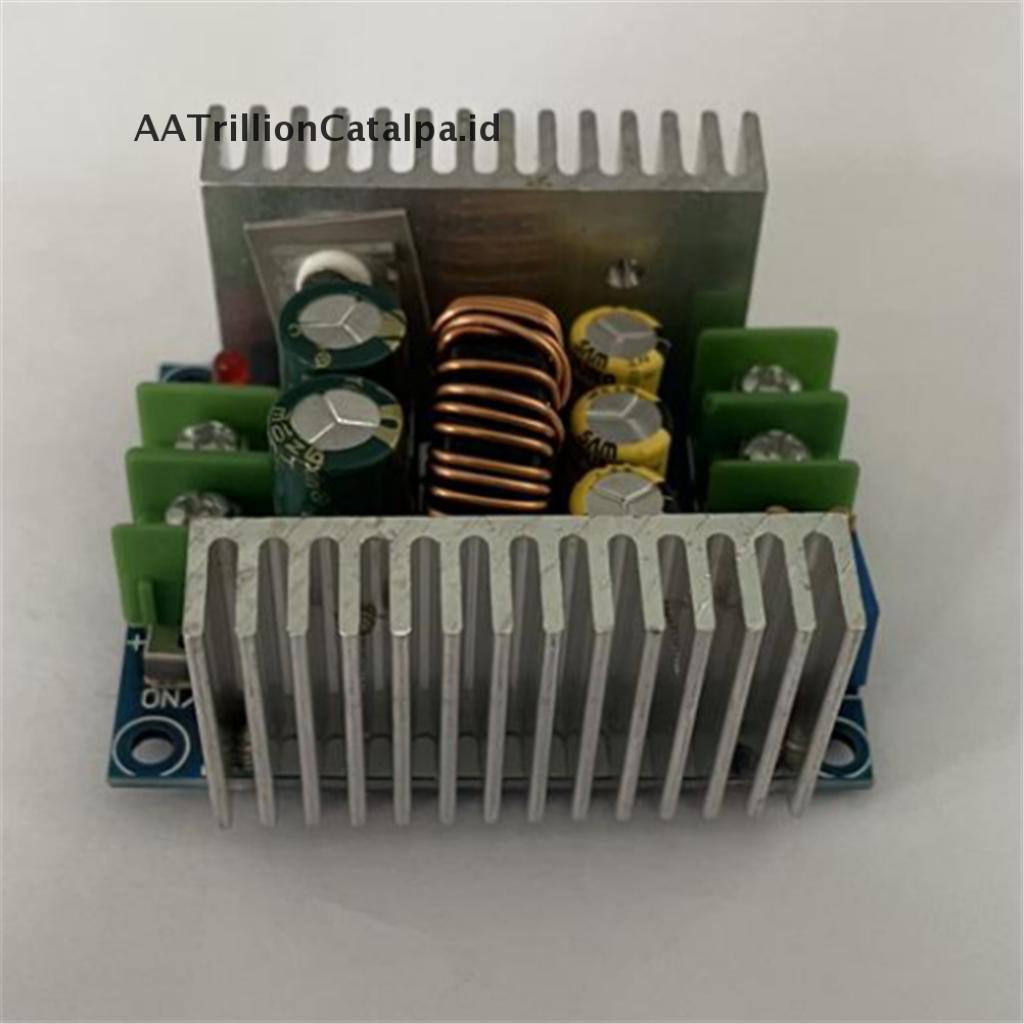

The Buck has 2 Module Heat Sink could improve the heat dissipation.
When there is a large difference between the input and Output Voltage, please reduce the power and current.
Specifications:
Input Voltage: 5 V to 40 V DC (10 V to 40 V. it is suggested)
Output Voltage: 1.2 V to 36 V DC
Output Current: 20a (max.), 15th (suggested)
Efficiency: 95% (24 V to 12 V, 20a)
Ripple output: < = 50mV
Method: Wiring terminal
Short Circuit Protection: Self recovering (can not short Long)

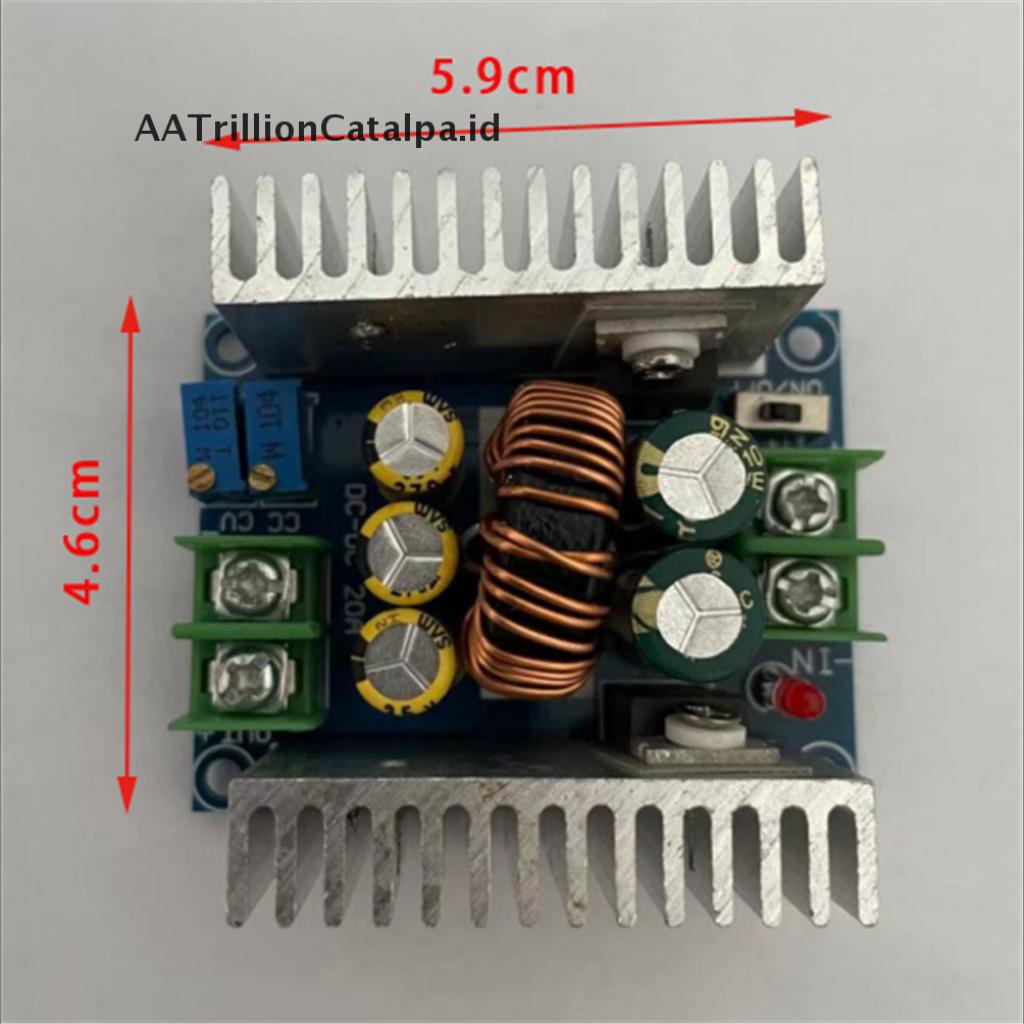

Size: 60x53x27mm / 2.36x2.08x1.06 "
Positive output Vo +:
Vo: negative output
+: Positive input
- negative input
HP: adjustment of Output Voltage
CC: adjustment of Output Current
Is to enable the low Output Voltage OF VOLTAGE level; suspension, High Voltage level is effective
When the input and output are common to Earth, Constant Voltage Output CV without load, Constant Current DC OUTPUT
Package includes:
1x300 W 20a adjustable Constant Current Buck Converter Module of tension Reducer
