Konverter Mikro Sdi to Hdmi + Sdi Ke Sdi 2 Routes Output Mini Hd 1080p Usb Converter Micro SDI to HDMI / SDI

Detail Konverter Mikro Sdi to Hdmi + Sdi Ke Sdi 2 Routes Output Mini Hd 1080p Usb Converter Micro SDI to HDMI / SDI

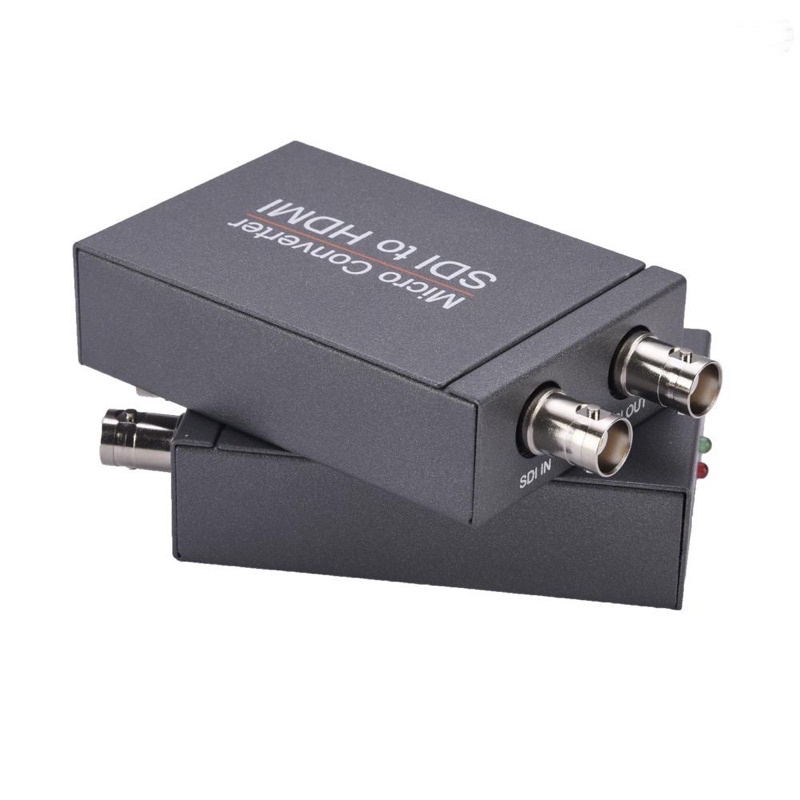

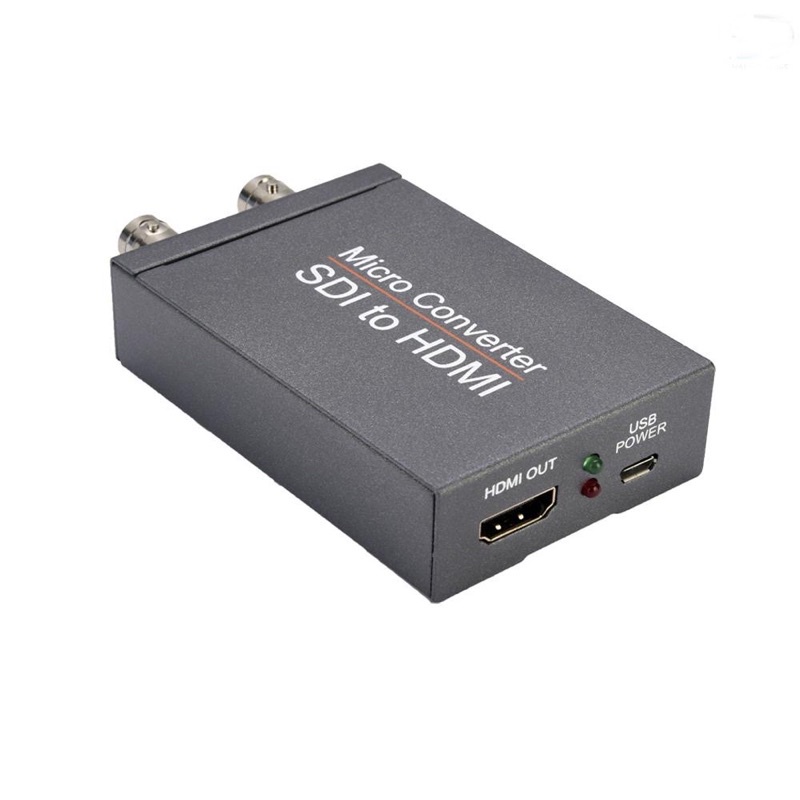

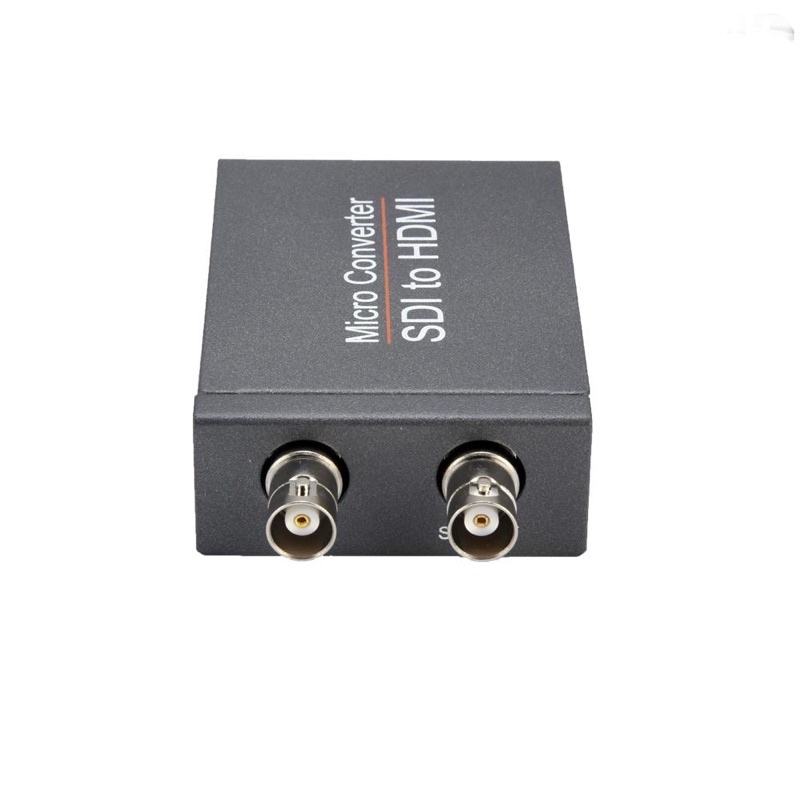

Micro SDI Converter SDI to HDMI/SDI to SDI 2 Routes Output Mini HD 1080P USB Powered Converter NK-M008 Micro SDI Converter SDI to HDMI/SDI to SDI 2 Routes Output Mini HD 1080P USB Powered Converter



Features:
SDI to HDMI Converter
The SDI to HDMI converter allows HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss.
Note:This is not a bi-directional converter. DO NOT use for HDMI to SDI conversion.
Display/TV to be SDI Monitor
The HDMI display or TV can be used as SDI monitor,synchronization of video and audio playing.
SDI Converter,2 Routes Output
Connect to the HD monitor,SDI and HDMI interface display devices are displayed simultaneously.
HD 1080P Convert
High definition 1080P,capture the details clearly.
Long distance Signal
Support connect with other units to extend your signal over long distances.
Specification:
Model: NK-M008
Color: Grey
Input Port: 1 x BNC (HD-SDI/3G-SDI)
Output Port:1 x HDMI 1*SDI
SDI Transmission Rates: 2.970 Gbit/s
In/Output Resolution: 720p\1080i\1080p
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumption (Max): 5W
Operation at 2.970Gbit/s, 1.485Gbit/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Item Size: 9.7*5.5*2.3cm/3.8*2.2*0.9in
Item Weight: 127g/4.5oz
Package Size: 11*9*6cm/4.3*3.5*2.4in
Package Weight: 193g/6.8oz

Package List:
1*Converter
1*Cable
1*User Manual
