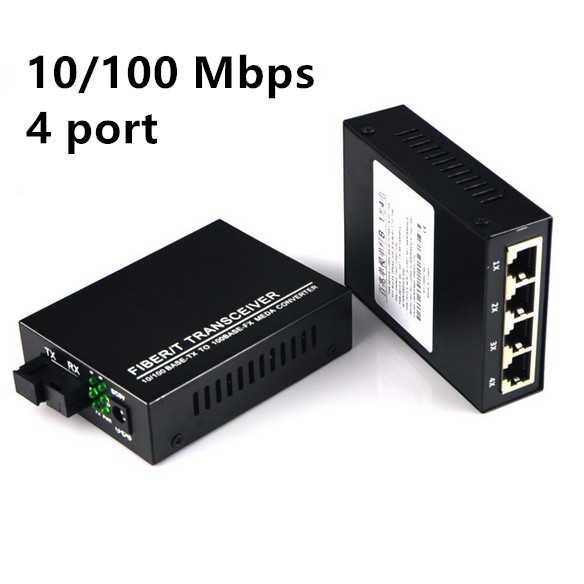

Konverter Fiber optic media Sc to lan rj45 4 port single mode 10/100 base tx-fx - converter

Detail Konverter Fiber optic media Sc to lan rj45 4 port single mode 10/100 base tx-fx - converter

Features:
1, Provide one fiber connector and 4 UTP connector
2, Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
3, Auto-detection of half/full duplex transfer mode for TX port
4, Auto-negotiation of 10/100Mbps rate and Auto-MDI/MDIX for TX port
5, Provide switch configuration of half/full duplex transfer mode for FX port
6, Extend fiber-optic distance up to 120km with single-mode fiber
7, Easy-to-view LED indicators provides status to easily monitor network activityInternal power supply.

Product parameters:
Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards
10/100Mbps data transfer rate
Support full-duplex and half-duplex way of working

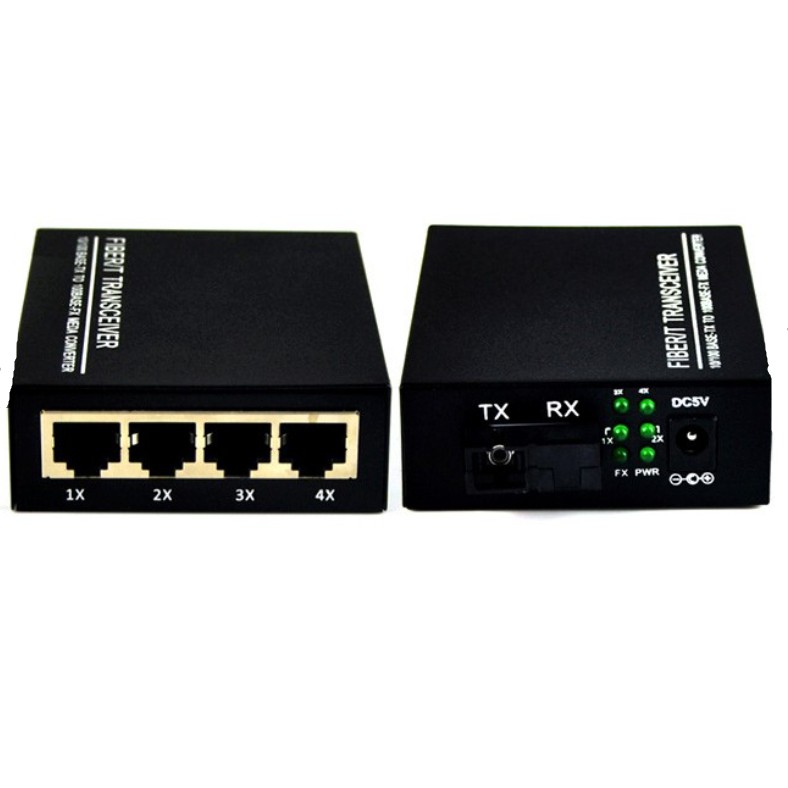

Provides four standard RJ45 interface and one SC fiber interface
RJ45 interface supports both 10Mbps and 100Mbps auto-negotiation function
RJ45 interface with fast switch function
EMI Certification: CE, FCC, VCCI, C-Tick

Fiber Type Singlemode
SC fiber optic interface type
Wavelength 1310nm 1550nm
Transmission distance up to 25Km
Maximum transmit optical power -12.0 dBm
Minimum emission power -19.0 dBm
Sensitivity -34.0 dBm
15.0 dBm optical fiber link loss
