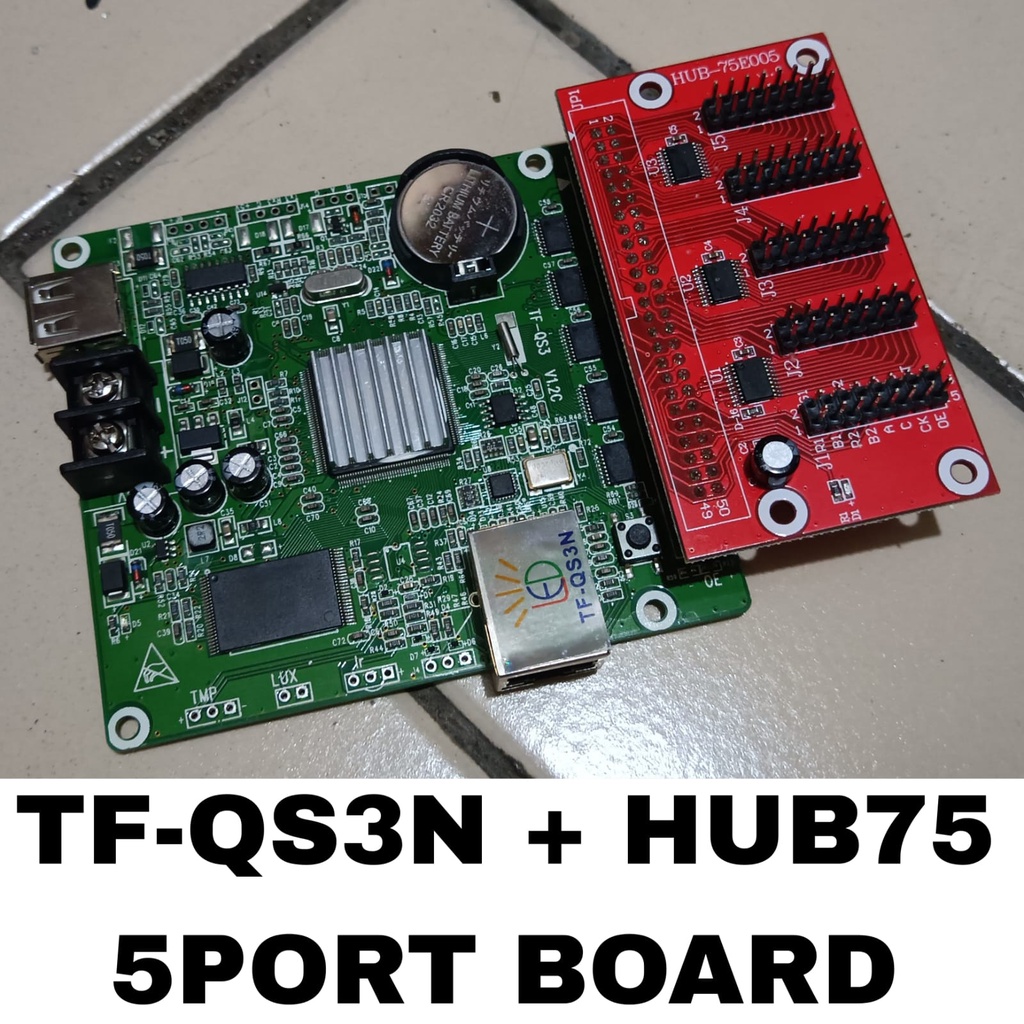

Kontroler Videotron Full Color TF-QS3N USB & Ethernet + hub75 adapter board

Detail Kontroler Videotron Full Color TF-QS3N USB & Ethernet + hub75 adapter board

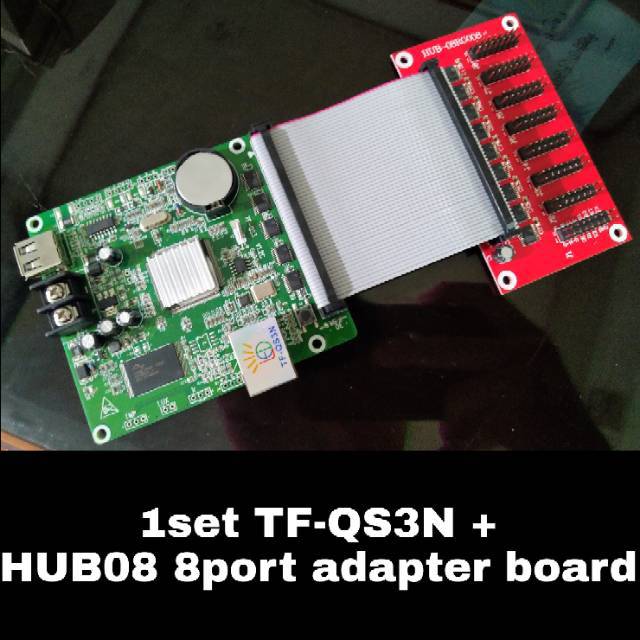

Kontroler TF-QS3N + hub08 8 port adapter board
Untuk panel LED p13

Spesifikasi produk:
Model:
TF-QS3N
Function:
Arbitrary partition,Multi partition arbitrary superposition,Program background animation,,Streamer word,Text strokes,U-disk Smart scan pixels,support cross screen. Support infrared remote function
Interface:
Gigabit Ethernet + U-disk
U-disk function:
support U-disk uopdate program,U-disk adjust brightness,U-disk set the screen parameter.
Control range:
Full color 160x128 320x64,Width max 640,Height max 160
HUB board:
1 50pin
Scan type:
Support 1/32,1/16,1/8,1/4,1/2,static,support smart settings,U-disk smart scan.
Memory:
128M
Program QTY:
Maximum support 200 programs,support 16 partitions play at the same time,Partitions can overlap,each widow support 200 texts
Electrical parameters:
+5V DC(4.5V~5.5V),working 3W
Working temperature:
-3070
Physical size:
96mm84mm

Gambar produk
