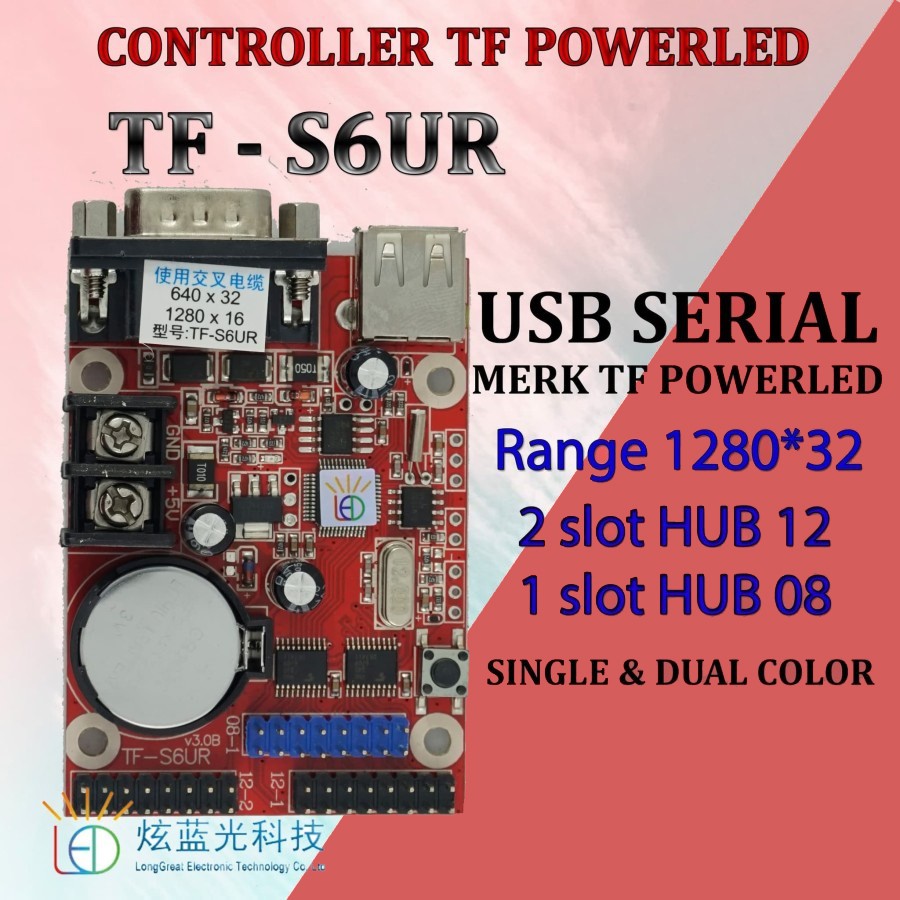

KONTROLER RUNNING TEXT TF S6UR Serial USB

Detail KONTROLER RUNNING TEXT TF S6UR Serial USB

Kontroler USB & Serial
Bisa disambung ke TF-RMT

Model : TF-S6UR/TF-S5UR
State : Batch supply
Function introduction: Multi-area displays,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.
Usage : indoor/outdoor
USB function: USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Pixel : Single colour:1280x16,640x32
Double colour:640x16,320x32
Ports : one 08 port;two 12 ports
Scanning mode : support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage : 2M
Program number : Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.""'Quantity in storage space under the premise of memory""
Display : rain,fountain,scroll and much more
Border : support many Color border,Picture border
Flash format : support GIF,SWF
Image format : support BMP,JPG,GIF,WMF,ICO
Brightness : Level 16 highlighted,support manual
screen switch : manual
Test buttons : Test buttons on-board,can switch over to test mode and color test mode.
Extension function: Temperature sensor,Temperature&humidity sensor,Brightness sensor.(Diagram for connection)

Electrical parameters : +5V DC(4.5V"''6V),Power consumption 0 .5W
Working temperature: -30'""''70'"
Size : 70mm*50mm
