Detail Kontroler Dioda Tenaga Surya 50a 9-80v Anti Arus Balik
Description:80V50A high power ideal diode
Performance introduction:
Allowable operating voltage range: 9-80V
Static operating current: 0.6-1.5 mA, is negligible for the entire system.
Single MOS aluminum substrate 2 milliohms
Continuous working current 25A (with no heat sink) within 60 ℃, backing large area heat sink forced air cooling 50A.
Anti-reverse function, it is not easy to burn the board
circuit board size: 44*18mm
Copper foil thickness: 2oz
The list price already contains a list of accessories: ideal diode motherboard *1 + 2 * wiring ears
The package include:
1x DC9-80V 50A Ideal Diode Solar Anti-backflow Protection Module 2 mΩ (Ri)

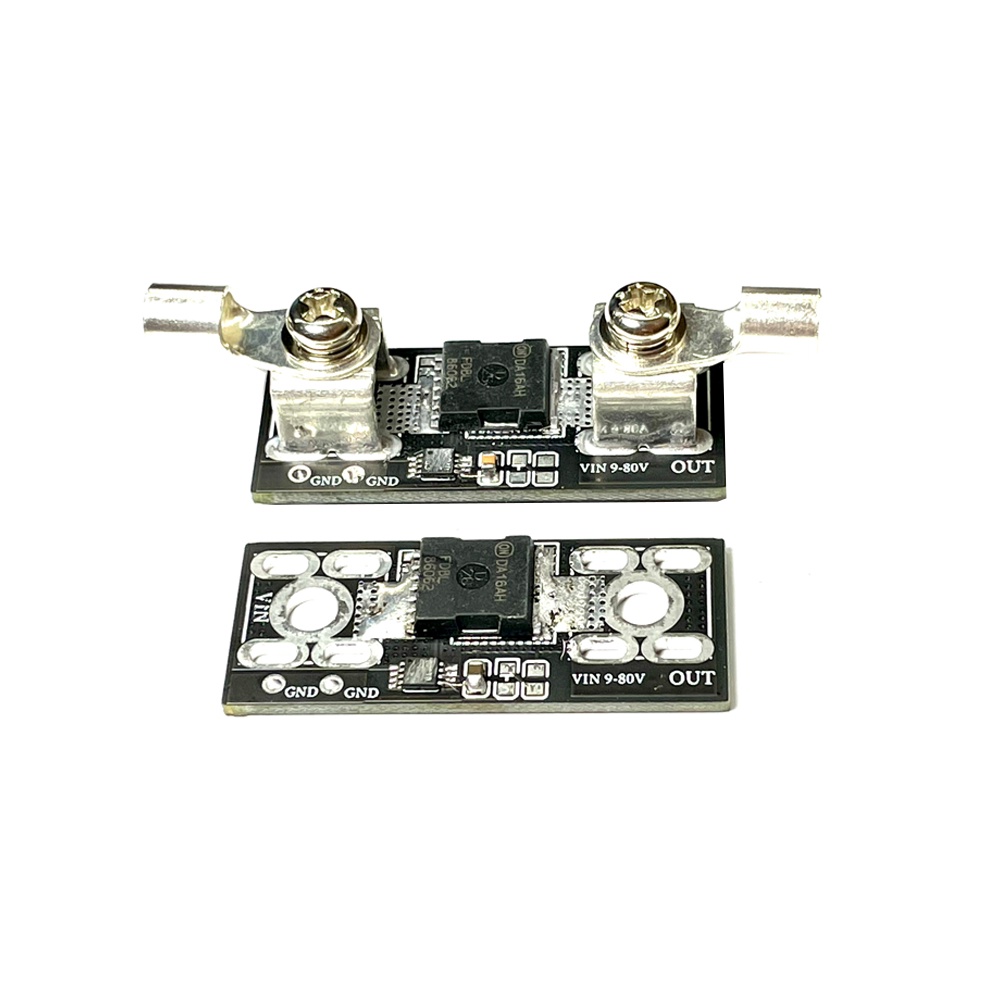

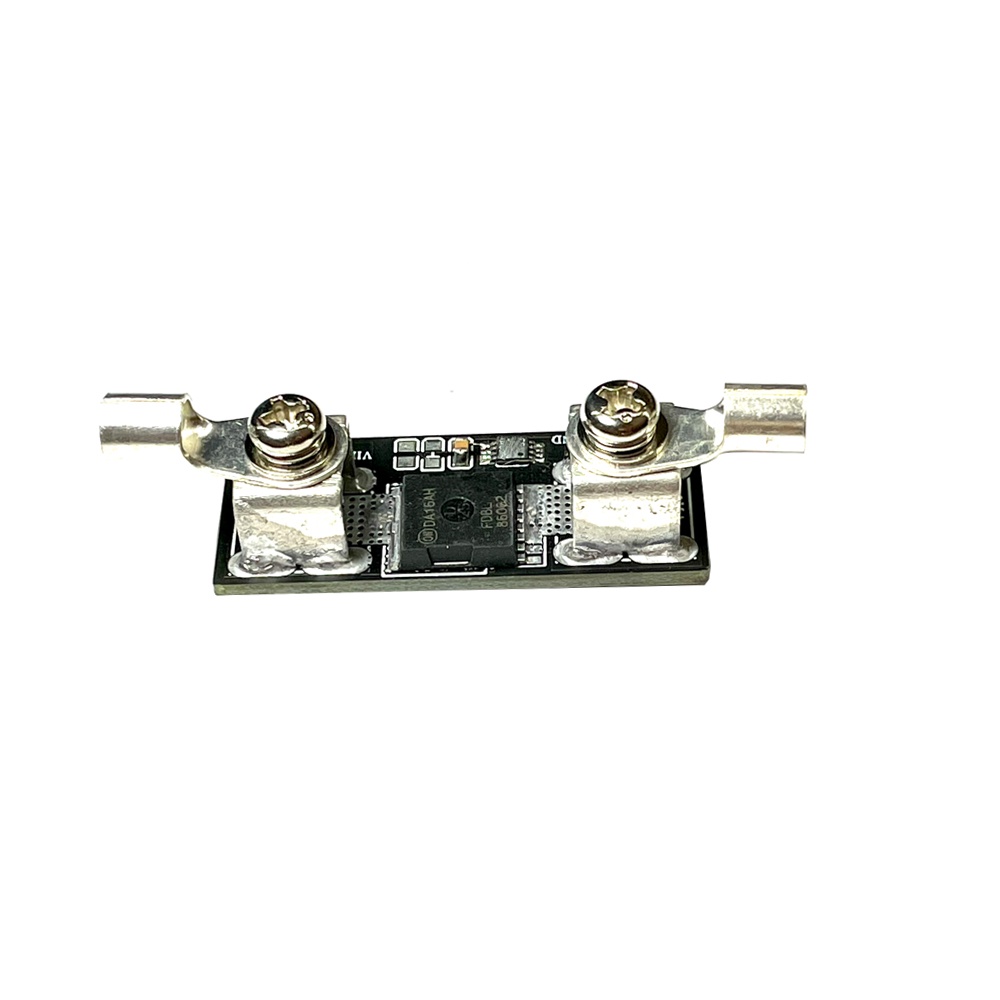

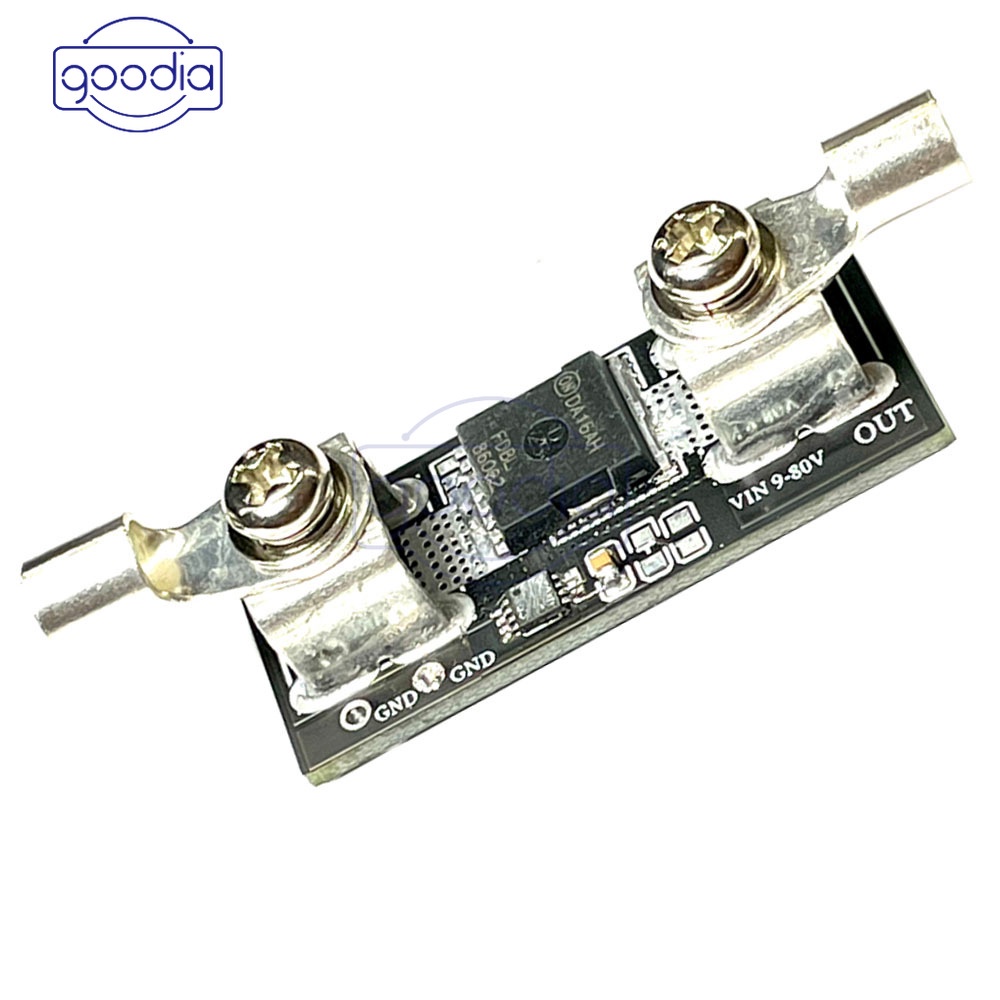

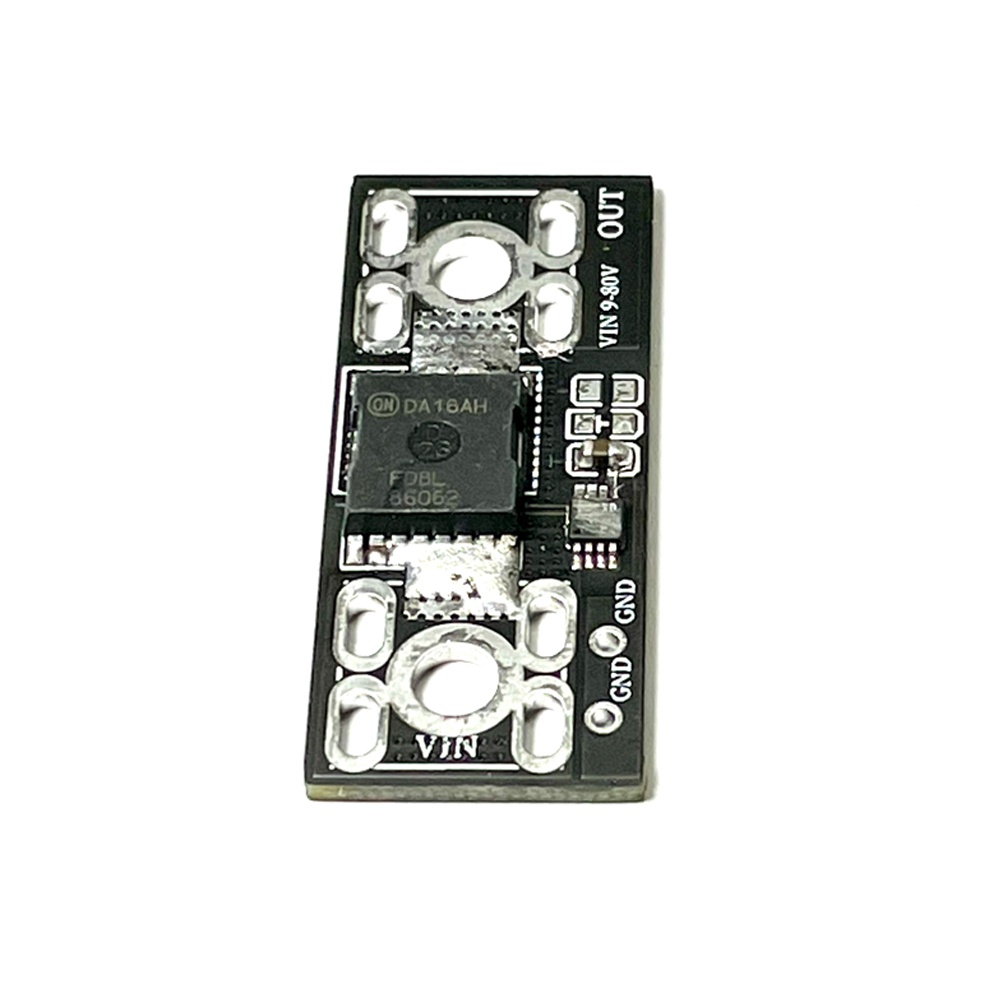

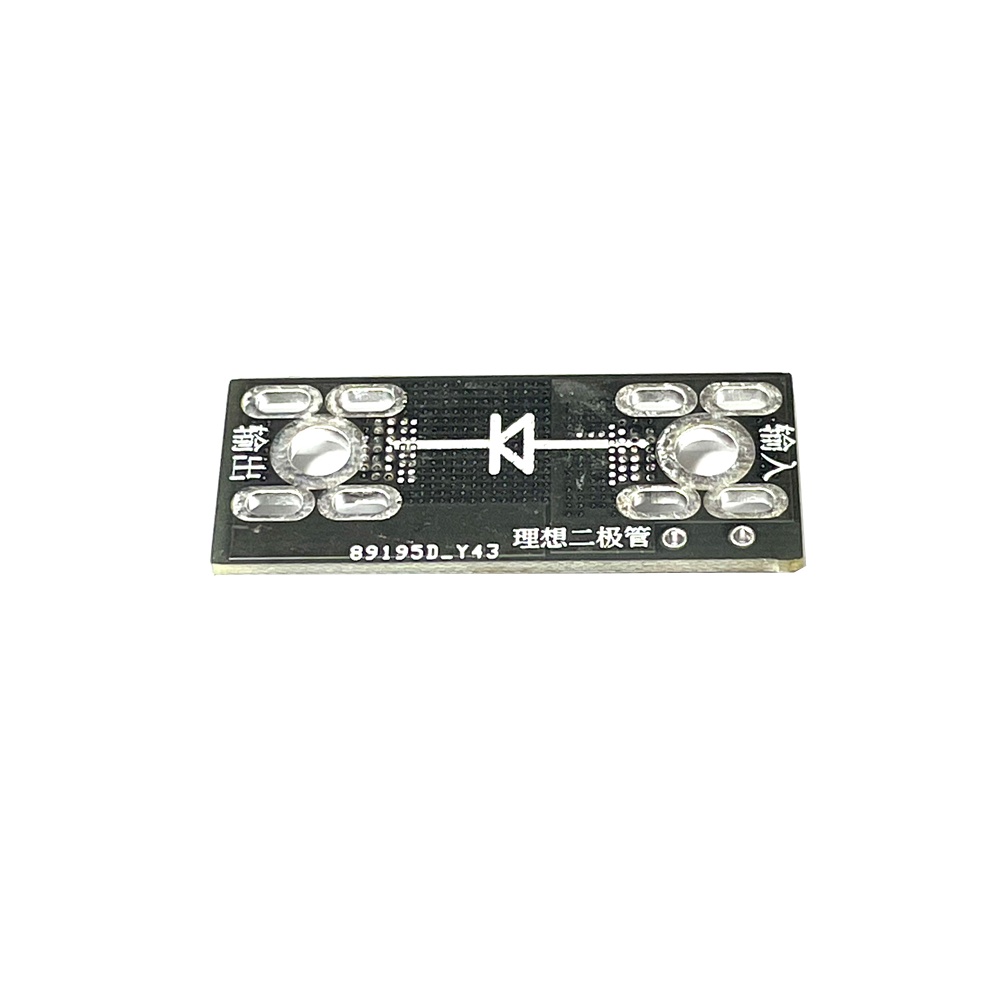

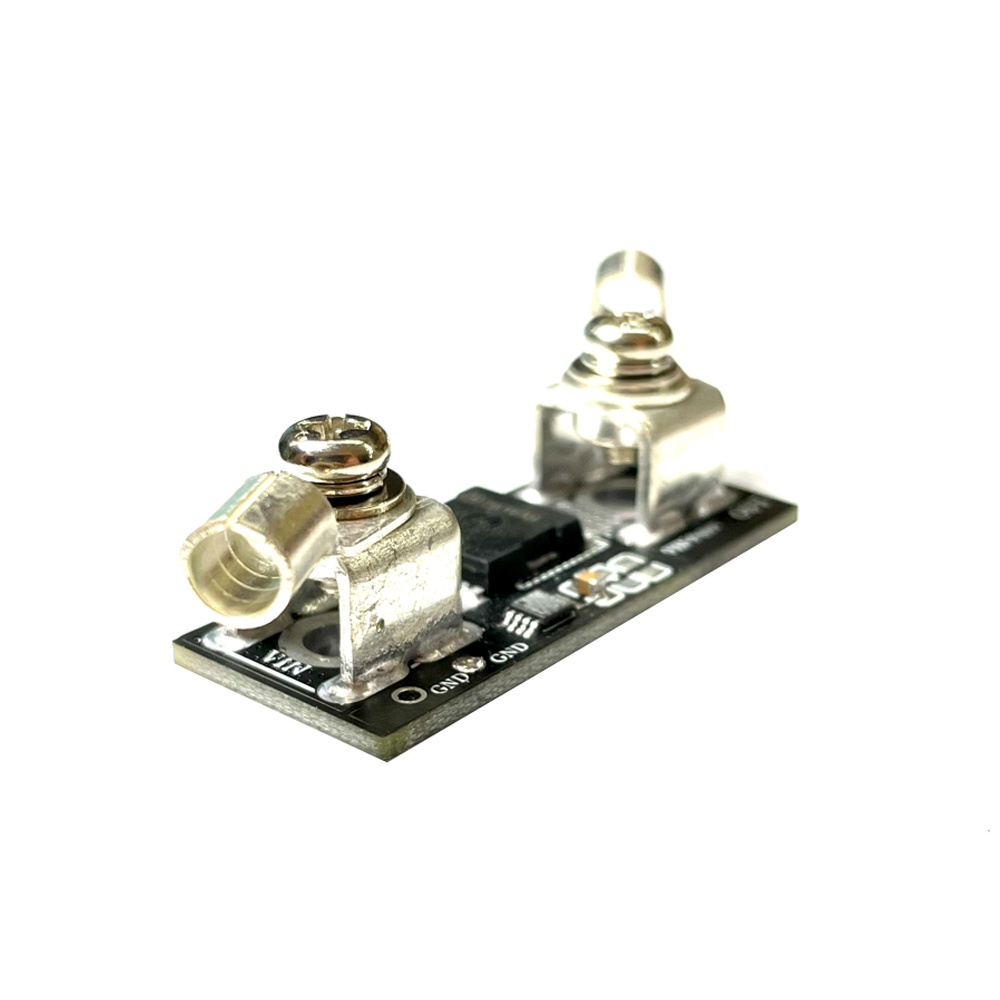

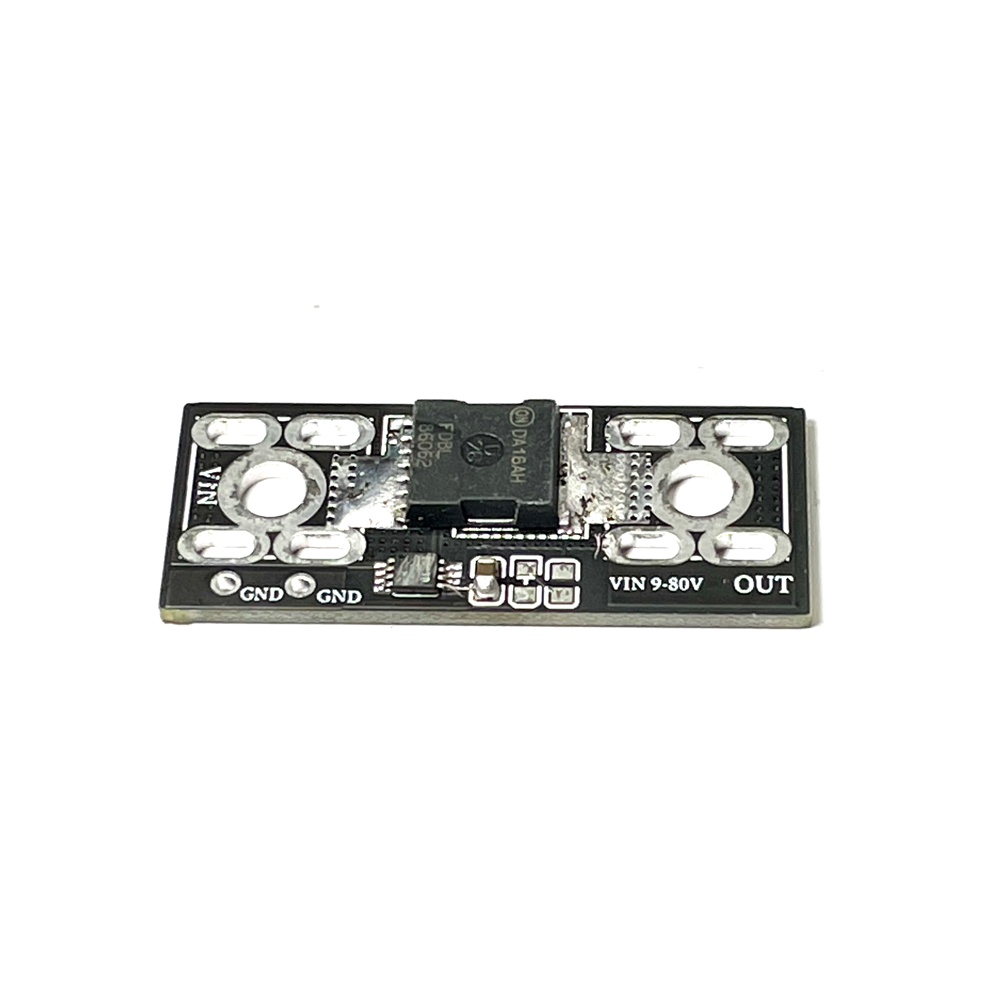

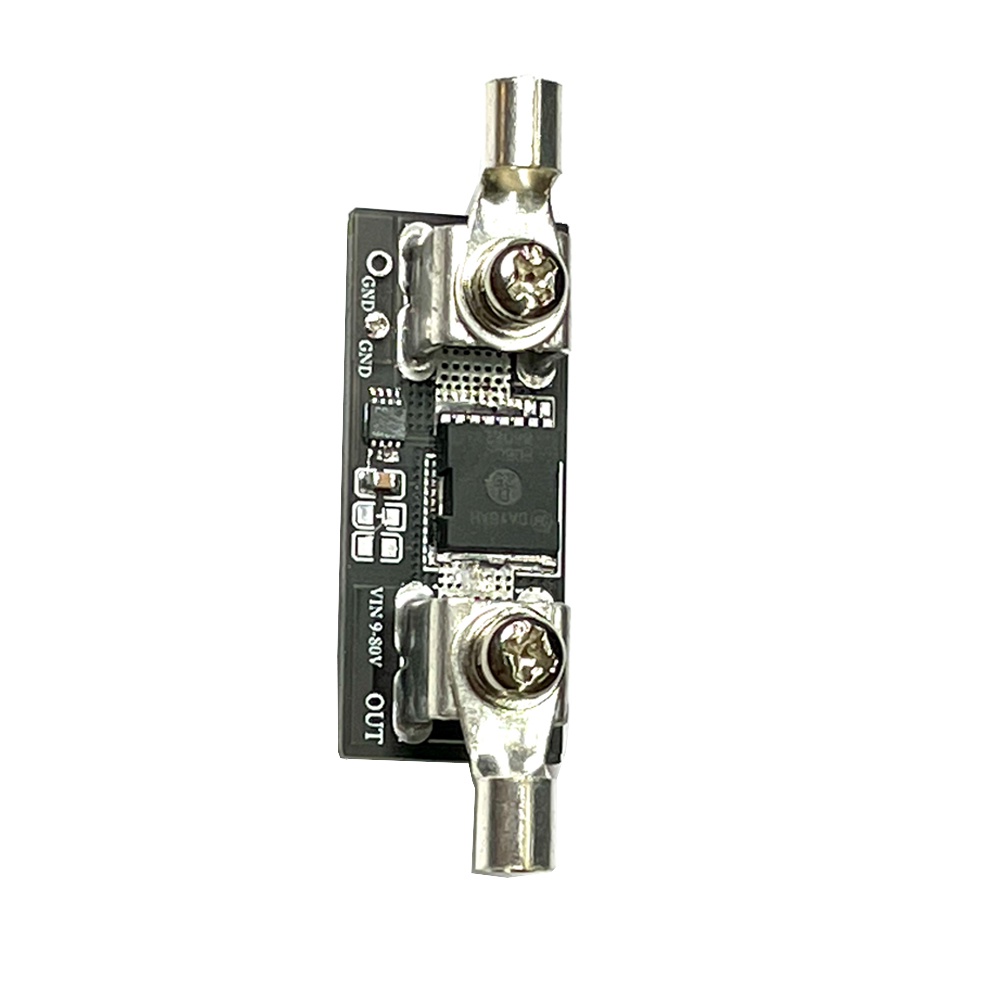

Gambar produk
