Konektor WKH207 125A 500V Distribution Box DIN Rail Terminal Block JUNCTION BOX

Detail Konektor WKH207 125A 500V Distribution Box DIN Rail Terminal Block JUNCTION BOX

Isolation of inlet lines and branch lines, the internal wiring is easy to identify, convenient wiring.
Integrated brass conductor, which has better conductivity, greater current carrying capacity.

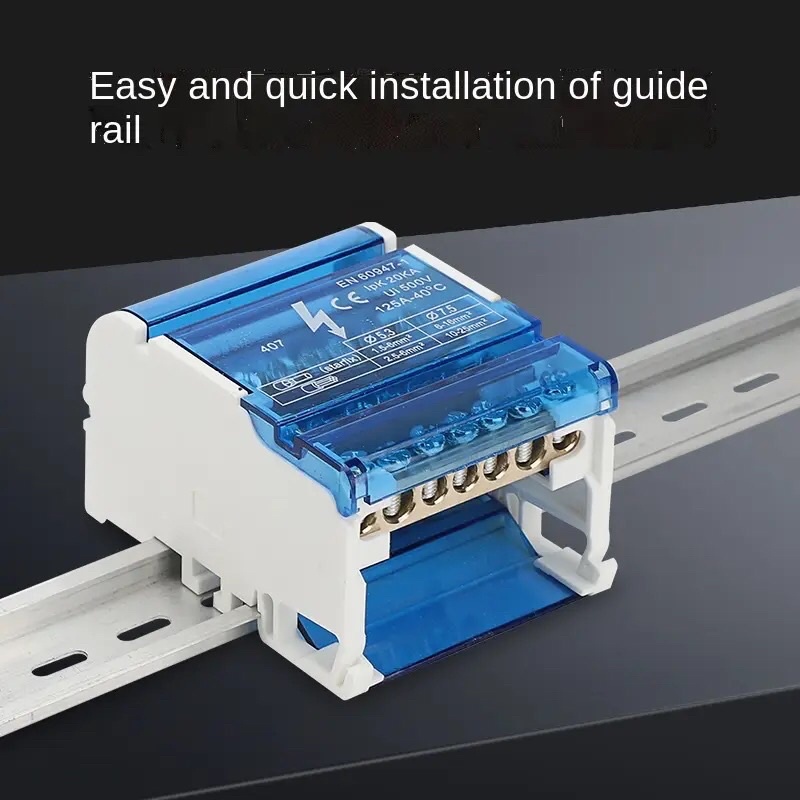

The bottom of the shell adopts the snap type installation, which is fast and convenient to fix the junction box to the guide rail.

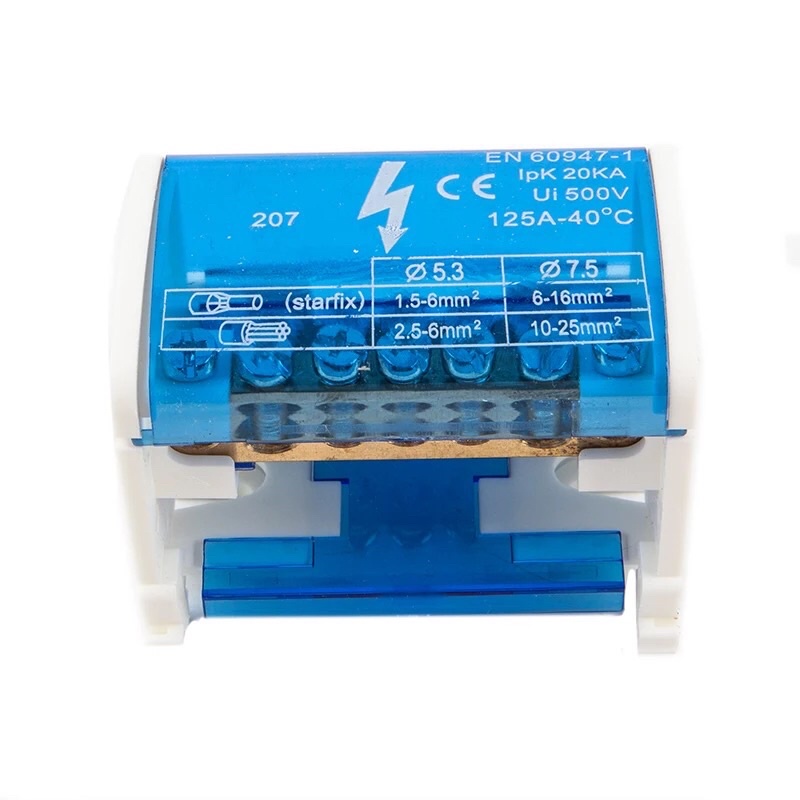

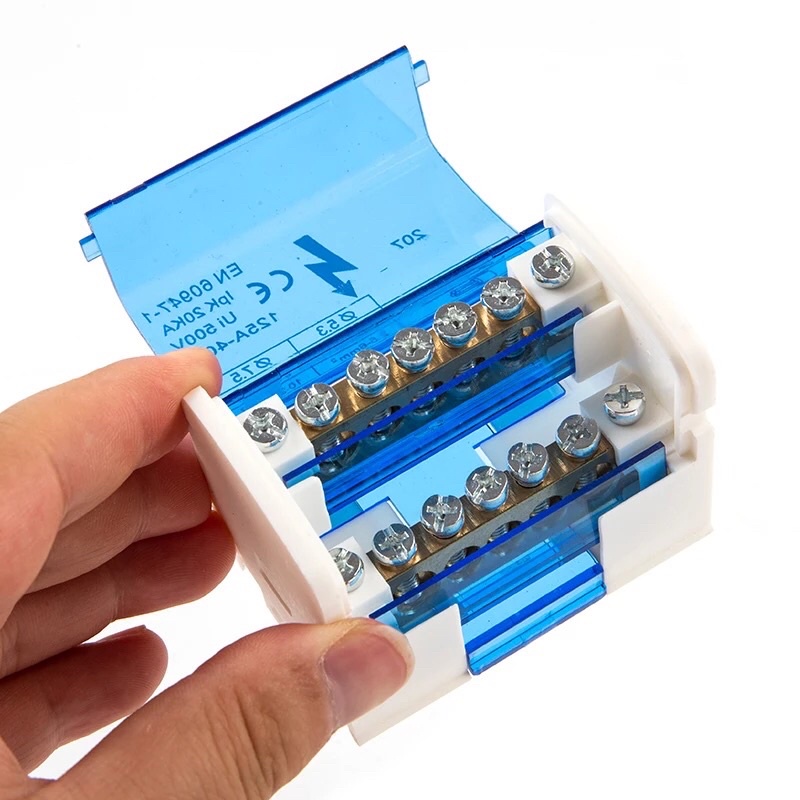

Transparent visual cover is easy to observe, more convenient for operation and checking when wiring maintenance.
Safety flame retardant and wear-resistant materials, high quality screw fastening head, convenient and has longer service life.
The product is generally used for power distribution cabinet, distribution box, and various high voltage cabinet units, etc.

Product Name: Terminal Junction Box

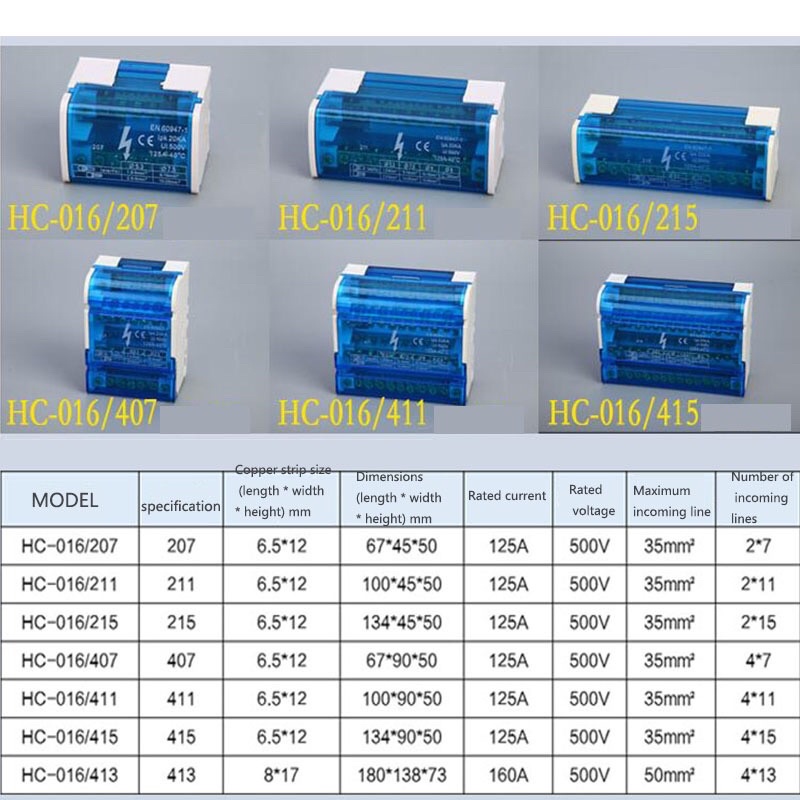

Model NO. NHC01-207 211 215 407 411 415

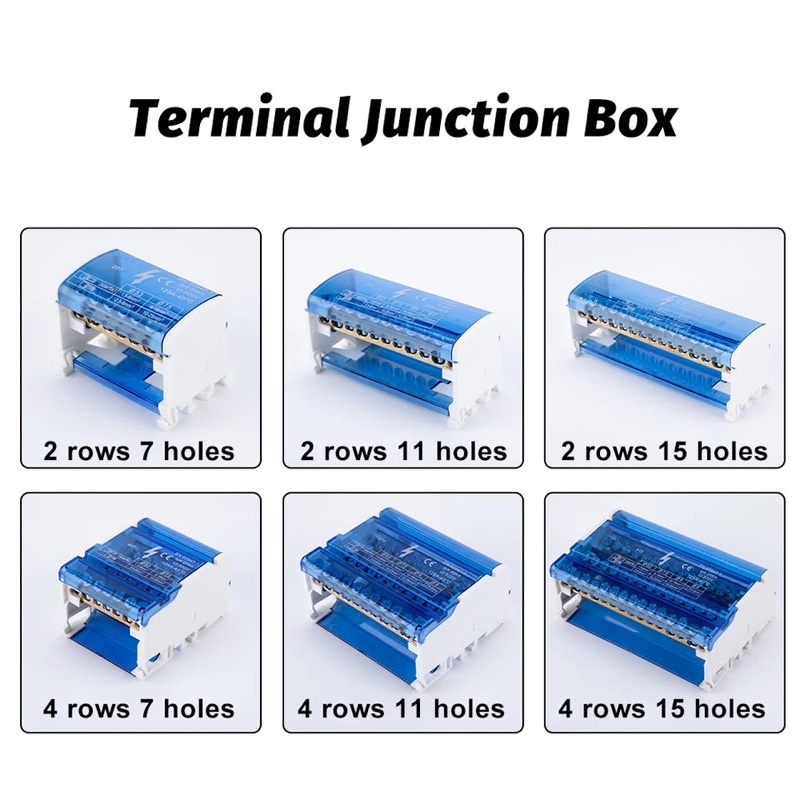

Quantity of Hole：2x7 2x11 2x15 4x7 4x11 4x15

Color: Blue and White

Material: Flame resistant Nylon PA66, brass conductor

Rated Voltage/Current: 500V/125A

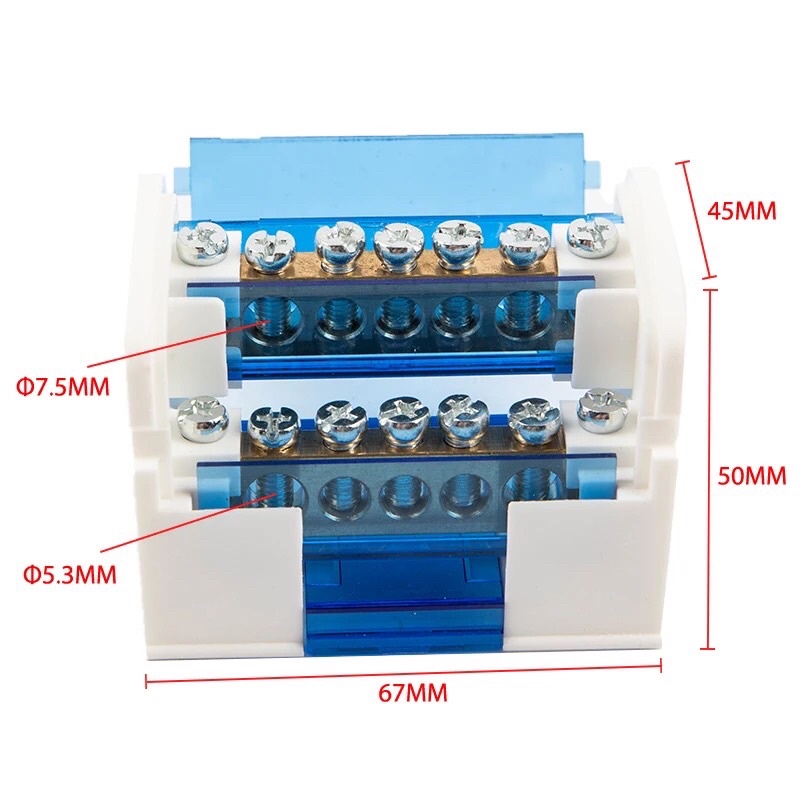

Dimension for Brass Conductor: 6.5*12mm

Connection method: Screw connection

Mounting Type: DIN Rail NS 35
