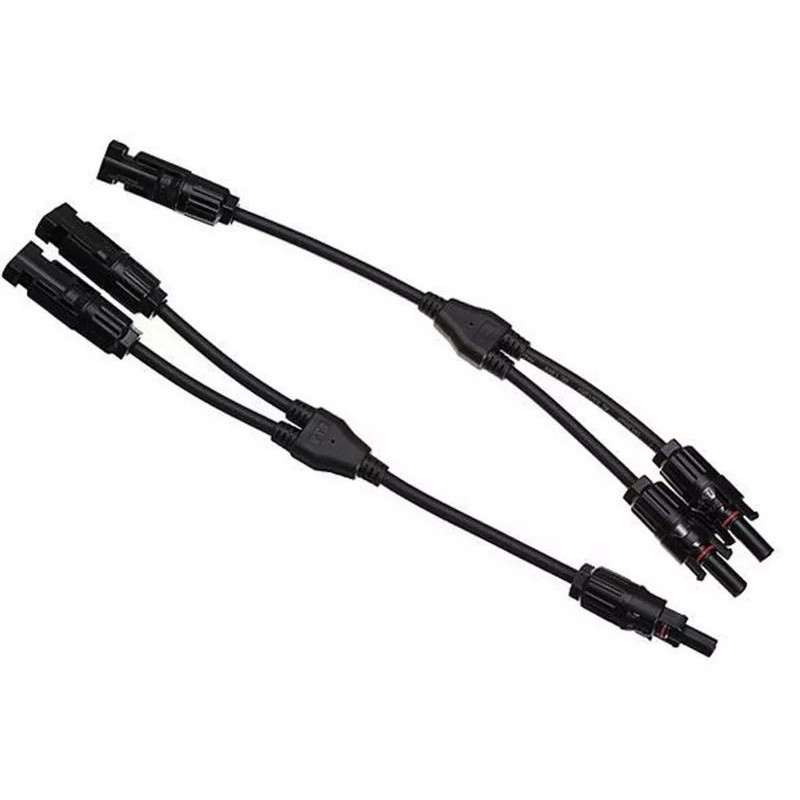

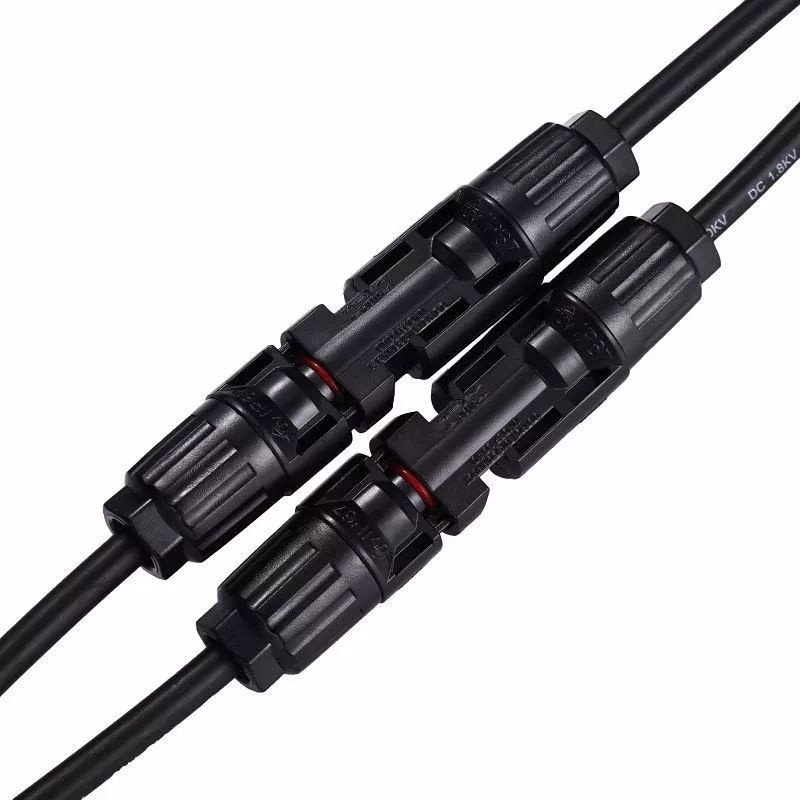

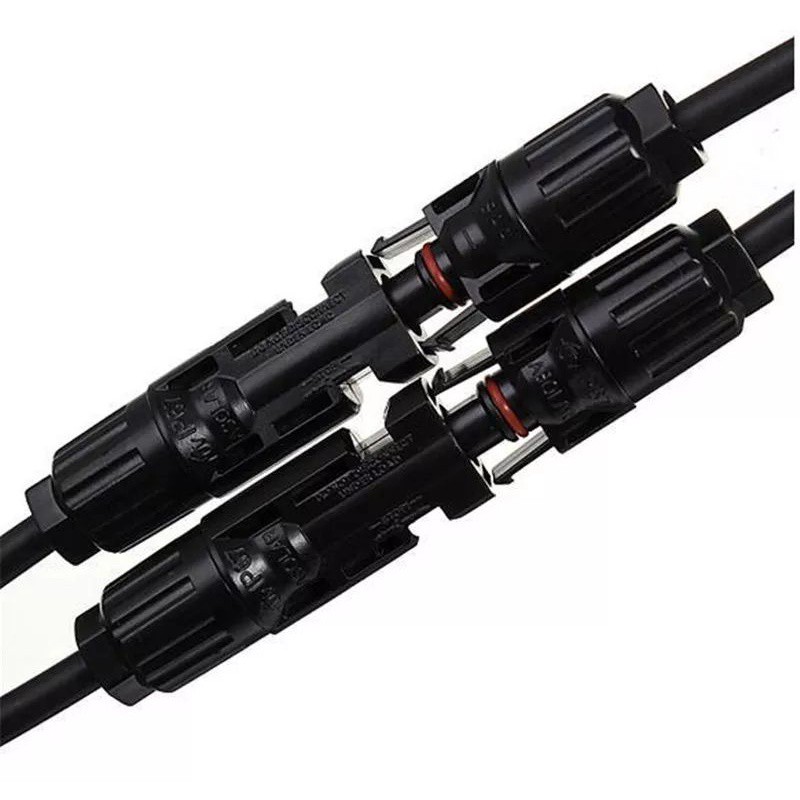

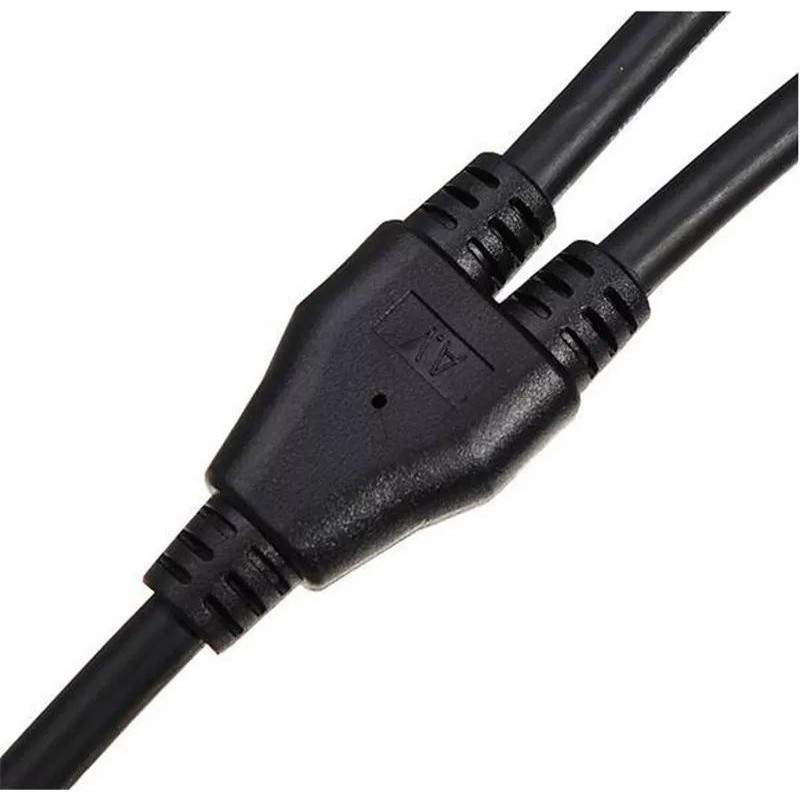

Konektor Solar Panel MC4 Cabang 2in1 MC4 Connector T2 2 in 1

Detail Konektor Solar Panel MC4 Cabang 2in1 MC4 Connector T2 2 in 1

Feature:

water proof and dust proof
Simple and quick installation
Compatible with all MC4 solar connectors
TUV approved and Rohs compliant
With excellent aging resistance and UV endurance.
It can be used in harsh environment.
It does not need extra instruments for the removal of plugs
Removal will not cause any harm to plugs.
Load capability with big current and high voltage
Good ability of resistance and machine shocking
Lower contact resistance
Created seal ,design of water proof and dust proof
Eligible plastic material has marvelous performances of high low
temperature,fireproof,anti-
Ultraviolet rays and applied to the long-time operation outside.


HARGA YANG TERTERA ((( HARGA 1 PASANG )))



Details:

Insulation material PPO
Rated current 30A
Rated voltage 1000Vt
Test voltage 6KV(50Hz,1Min)
Contact material Copper,Tin plated
Contact resistance 5m
Protection degree IP67
Safety class 2
Flame class UL94-V0
Insertion force 50N
Withdrawal force 50N
Ambient temperature range -40C~+90C
Pin dimensions 4.0mm
Suitable cable 2.5~6.0mm2 AWG14/12/10
