Detail KONEKTOR RJ45 cat6e COMMSCOPE connector lan rj cat6 isi 100pc

Merupakan Konektor CAT6 RJ45 dengan kualitas tinggi produk dari AMP COMMSCOPE. Konektor Original ini terbuat dari bahan kualitas bagus, sehingga awet dan tidak mudah patah untuk menghubungkan kabel dengan port yang menggunakan port RJ 45.

Connector asli ini akan terpasang di port RJ45 dengan sangat pasti dan mantab sehingga arus data di Network bisa berjalan pasti dan lancar.

Spesifikasi :
- Kemasan isi 100 pcs

Description:
Product Classification
Portfolio NETCONNECT®
Product Type Modular plug

Body Features
Conductor Type Solid | Stranded
Shield Material Stainless steel
Shield Plating Material Nickel

Configuration Features
Number of Positions 8
Keyed No

Contact Features
Contact Base Material Phosphor bronze
Contact Mating Area Plating Material Gold
Contact Mating Area Plating Thickness 50.00 µin | 1.27 µm
Number of Contacts Loaded 8

Dimensions
Cable Jacket Outside Diameter Range 0.201–0.236 in | 5.1–6.0 mm
Conductor Wire Size 26–23 AWG
Insulated Conductor Outside Diameter 0.035–0.043 in | 0.89–1.09 mm

Housing Features
Housing Material Glass filled polycarbonate

Industry Standards
UL Flammability Rating UL 1863

Packaging Features
Packaging Quantity 100

Product Type Features
Cable Type Round, shielded
Performance Category Category 6

Product Specifications
Connector Style Plug
Jack Type RJ45
Latch Style Standard
Shielded Yes

Termination Features
Termination Method to Wire/Cable Insulation Displacement Crimp (IDC)

Regulatory Compliance/Certifications
Agency Classification
RoHS 2011/65/EU Compliant

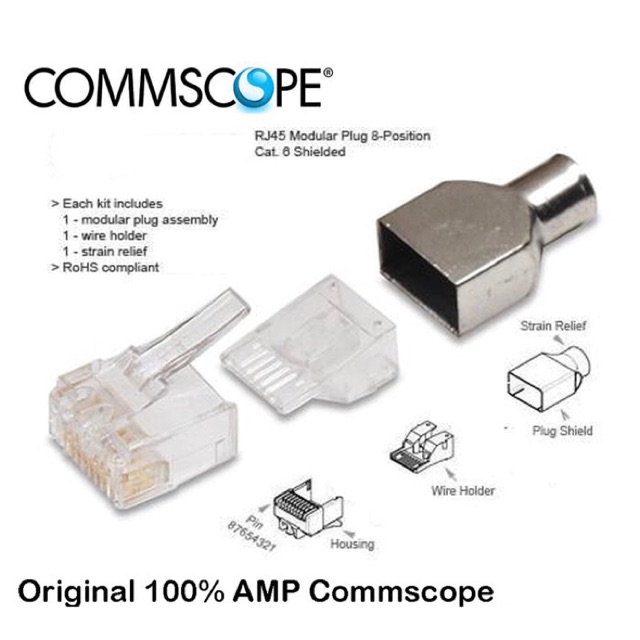

Gambar produk
