Detail konektor green HT3.96mm 6p tekuk L terminal block connector pair 3.96mm pitch 3.96 mm blok 6 pin p
Deskripsi Produk
Konektor/terminal elektronika, digita, audio, video, microprosesor, microcontroller untuk umum, hoby, pendidikan dan industri.
Spesifikasi :
Tegangan : 300V
Arus : 10A
Resistansi : 20m
Resistansi Isolasi : 5000M/1000V
Ketahanan Tegangan : AC1500V/1Min
Pitch Type : Right Angle
Material :
Model Number : HT3.96-6P
Pitch : 3.96mm
Tiang Penyangga :2P-12P
Sekrup :M2 Steel Zinc Plated
Penghubung : Phosphor Bronze Ni Plated
Kawat Kandang : Brass
Kerangka : PA66.UL94V-0
Mekanisme :
Jarak Temperatur : -40C150C
Suhu Solder : +250C setiap 5 detik
Panjang Jalur : 7-8mm

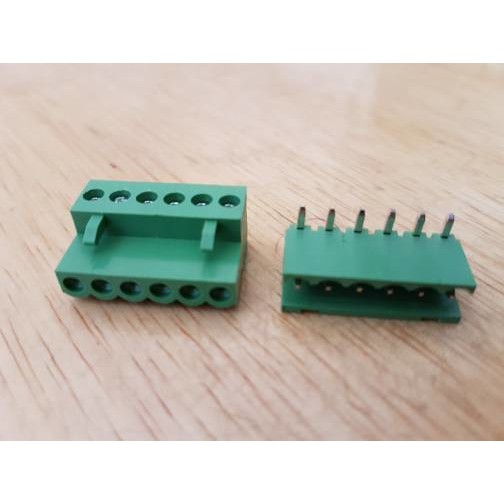

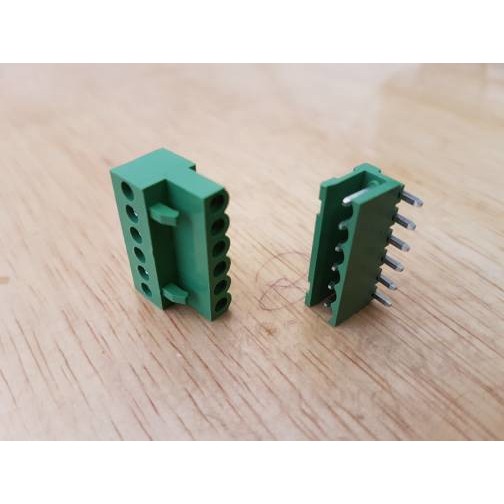

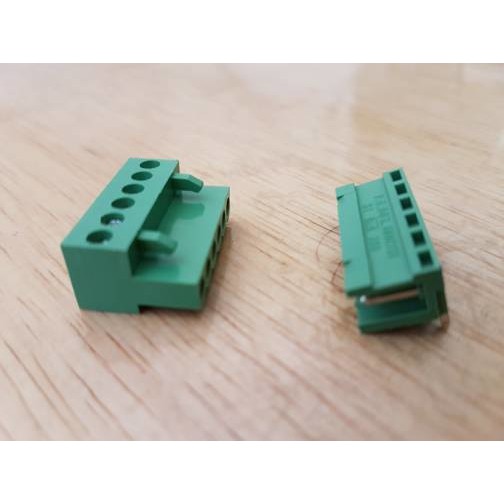

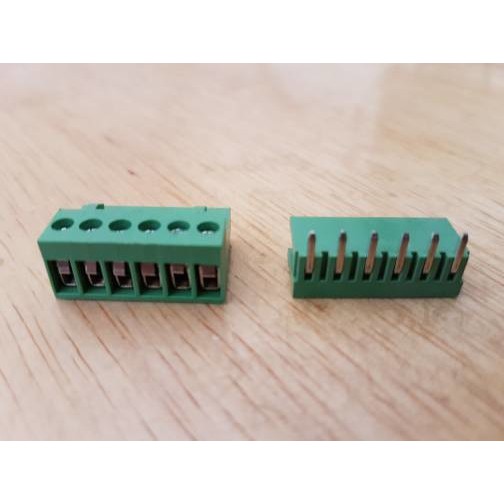

Gambar produk
