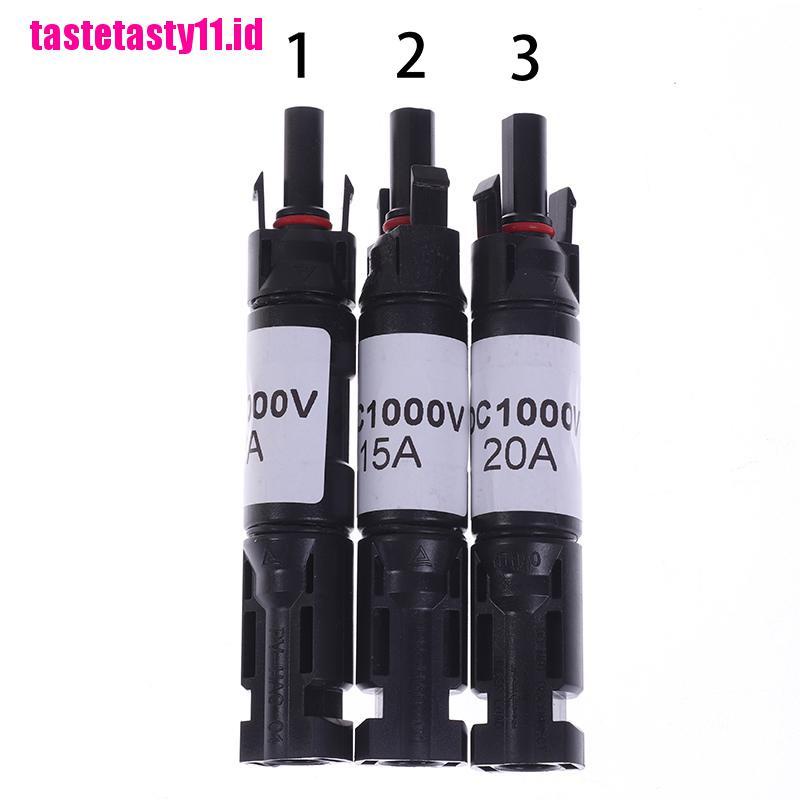

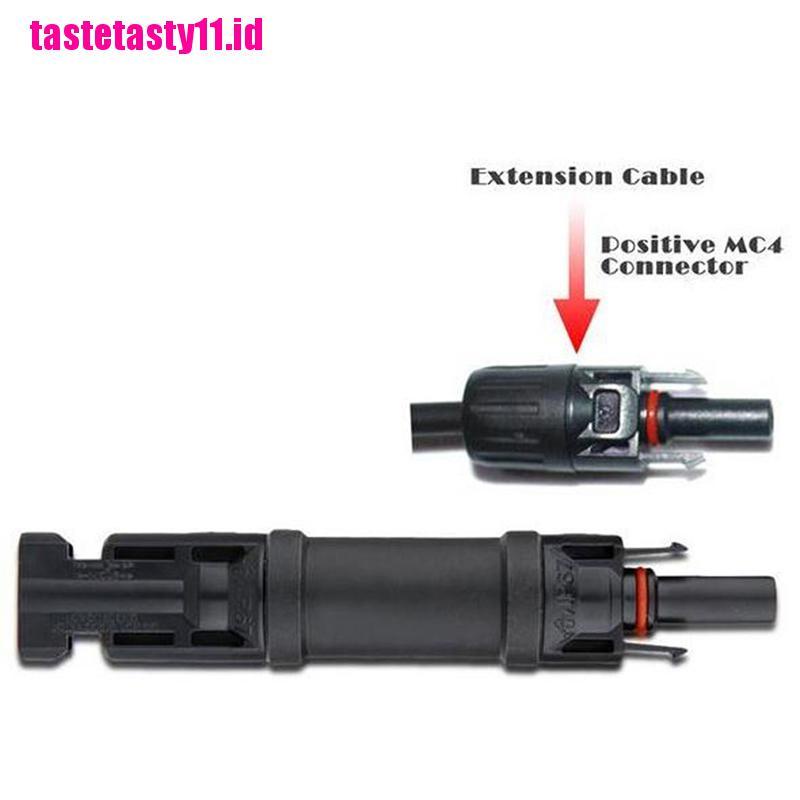

Konektor Dioda 10A 15A 20A DC Untuk Solar PV

Detail Konektor Dioda 10A 15A 20A DC Untuk Solar PV

Products details :
1.Connector adopts touch of reed with inne-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life.
Rated voltage: TUV 1000 DC
Test voltage: 6KV(50Hz,1Min)
Contact material: Copper, tin plated
Contact resistance: Less than 0.5 m ohm
Degree of protection: IP67
Pollution Degree: 2
Protection class: Class II
Flame calss: UL94-V0
Plug Force: less than 50N
Withdrawal force: more than 50N
Ambient temperature range: -40 ~ + 90.
Diode: 8 A ~ 15 A
Pin dimention: 4.0mm
Package included: 1Pc
