Konektor Coupler Stepper Motor Shaft Coupling OD CNC

Detail Konektor Coupler Stepper Motor Shaft Coupling OD CNC

Specifications:
Features:
- The structure is simple, easy to install, buffer, damping, convenient to disconnect.
- The size is complete and the surface is smooth.
- Story reversal characteristics are identical.
- The elastic connection, you can absorb vibration, compensate radial, angular and axial misalignment.
- Shaft coupler Often used to connect servo motor stepper motor,encoder screw driving machine platform etc.

Type: Flexible Shaft Coupling
Material: Aluminium
Size: 5mm x 8mm / 0.2 x 0.3in
Outside Diameter: 19mm / 0.75in
Length: 25mm / 0.98in
Weight: 17g / 0.6oz
Color: Silver
Main Dimensions:
- D1=5mm / 0.2in
- D2=8mm / 0.3in
- D=19mm / 0.75in
- L=25mm / 0.98in

Note: The size is refer to the hole, for example 8mm x 10mm is known as one head of the hole diameter is 8mm,the other is 10mm
Package Include:
1x Flexible Shaft Coupling

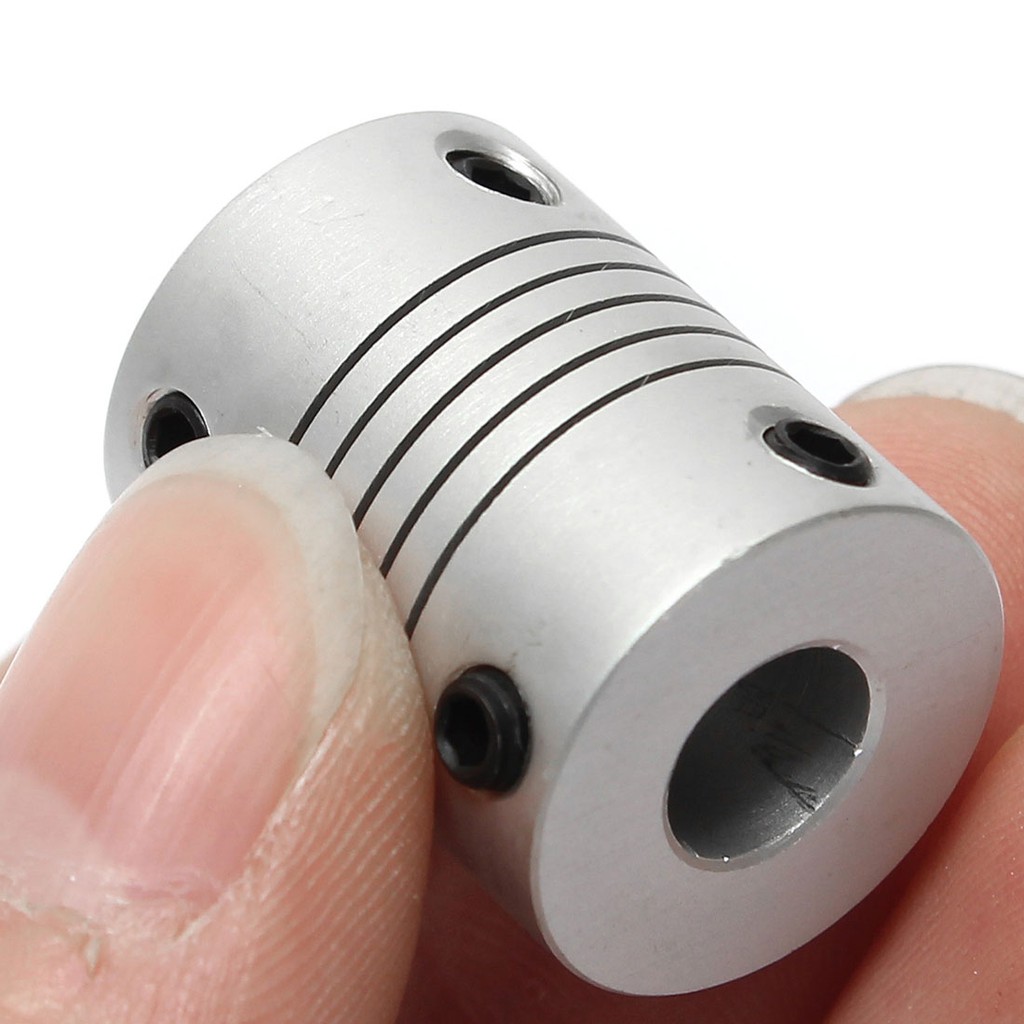

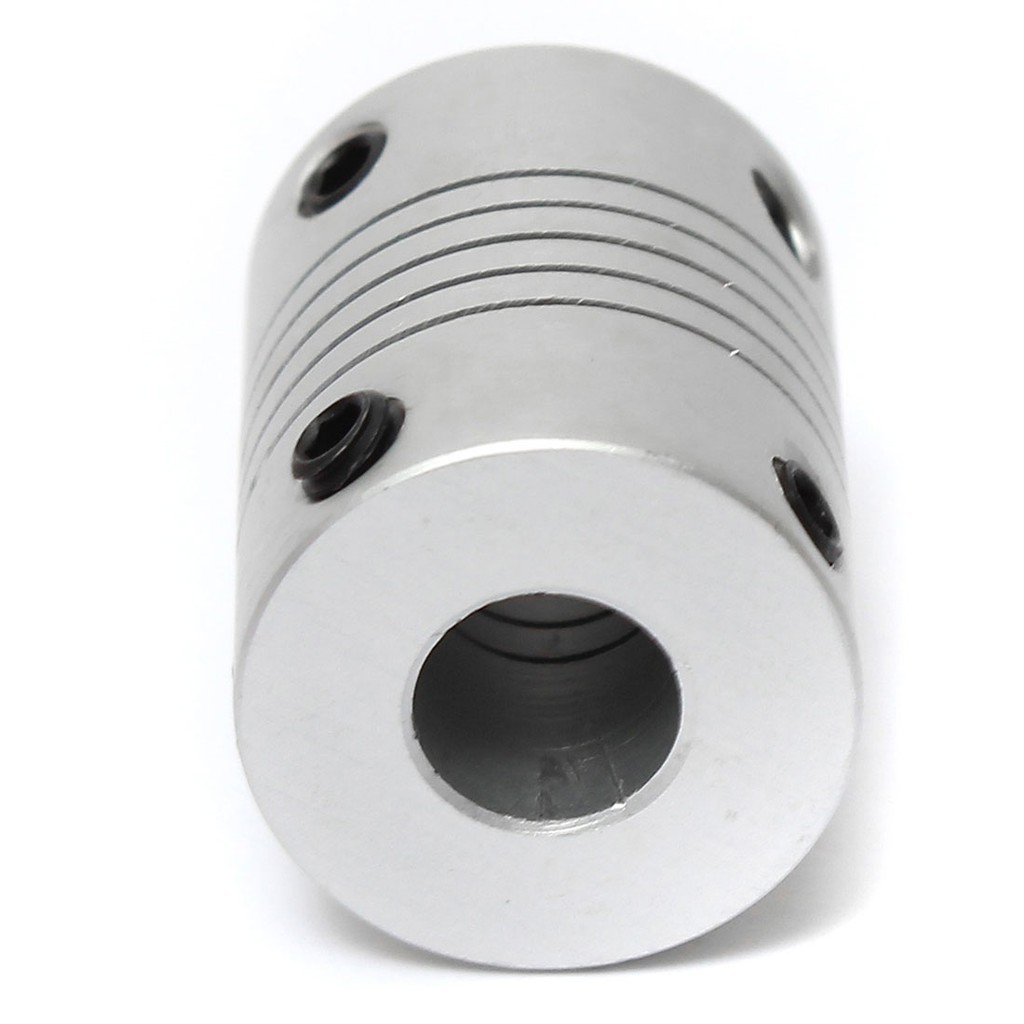

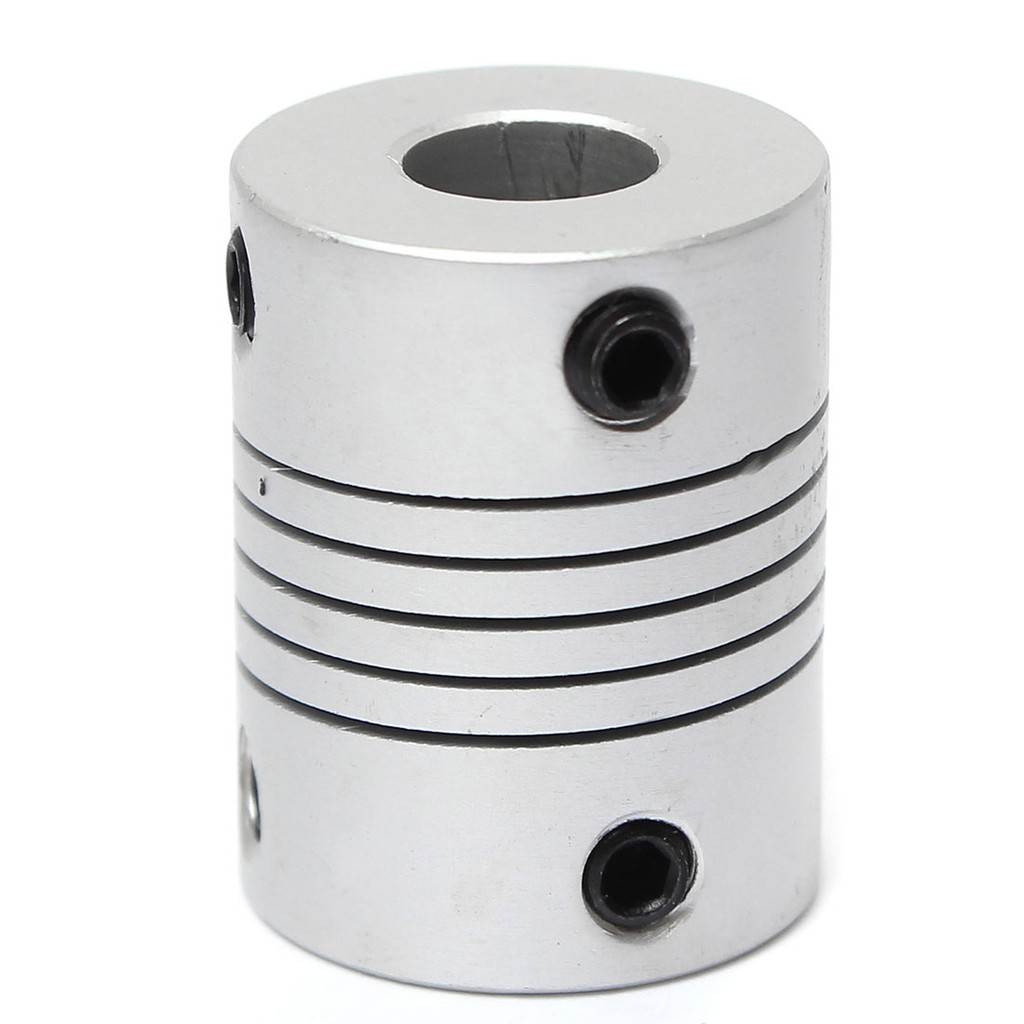

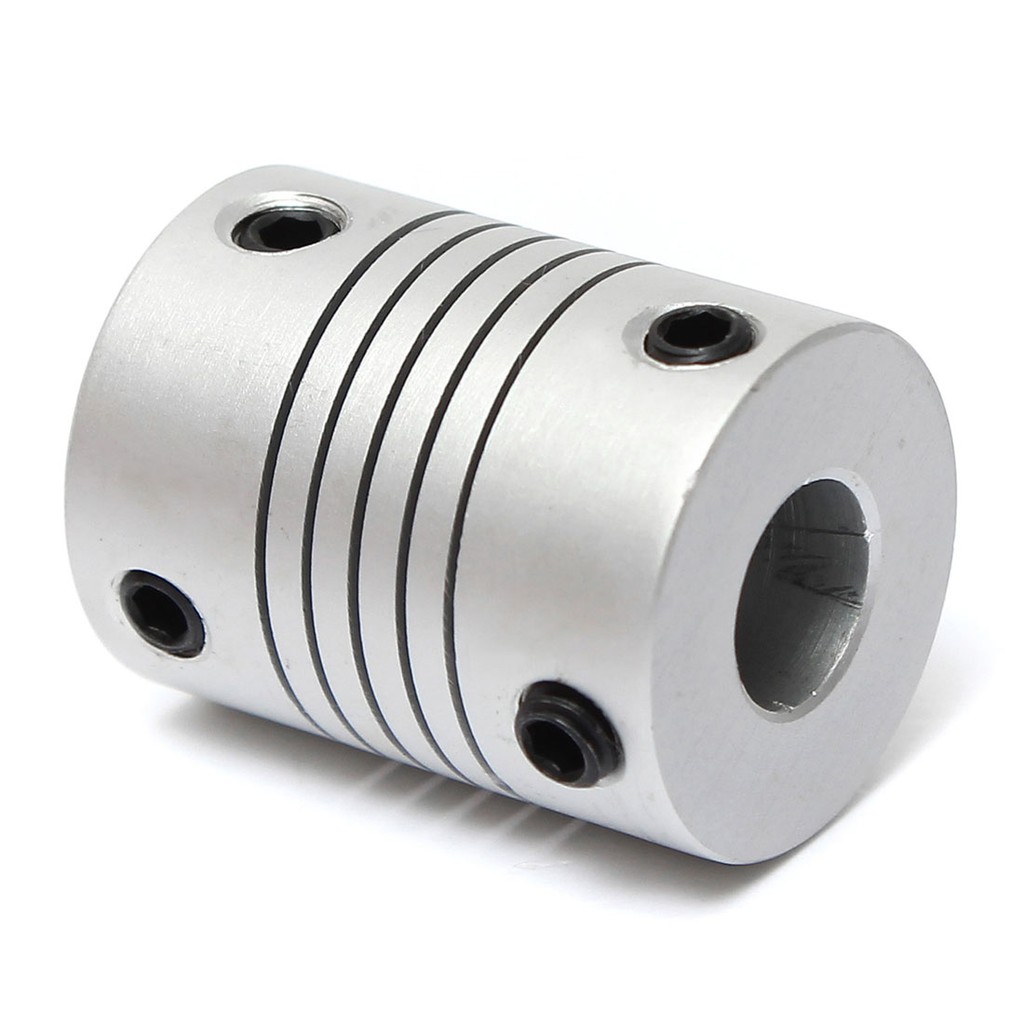

Gambar produk
