Detail Komponen speaker b&c 15ndl76 15 ndl76 neodymium 15inch
15" high efficiency Neodymium woofer.
SPECIFICATIONS
Nominal Diameter: 15", 381mm
Nominal Impedance: 8 ohms
Nominal Power: 500w rms, 1000w program
Freq. Response: 40 Hz-2.0 kHz
Sensitivity: 99 db 1w/1m
Voice Coil Diameter: 3", 76mm
MOUNTING INFORMATION
Overall Diameter: 15.47", 393mm
Baffle Hole Diameter: 13.93", 354mm
Number of Mounting Holes: 8
Mounting Hole BCD: 14.72", 374mm
Depth: 6.73", 171mm
T/S PARAMETERS
Fs: 37.0 Hz
Re: 5.3 ohms
Le: 1.5mH
Qms: 4.5
Qes: 0.24
Qts: 0.22
Vas: 195 L, 6.88 cuft
Xmax: 7mm
CONSTRUCTION
-Cast basket
-Neodymium magnet with vented voice coil
Happy Shopping

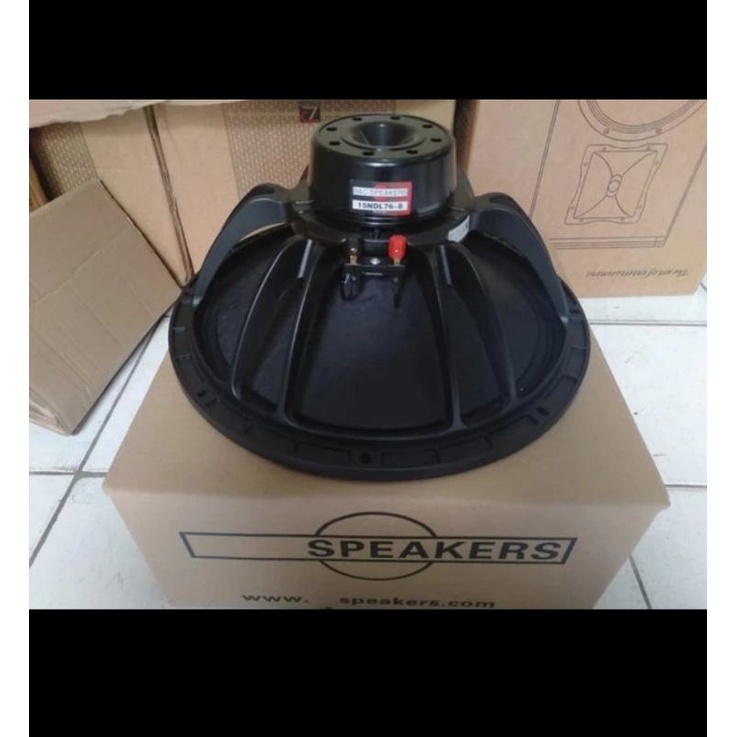

Gambar produk
