Kit Power Amplifier stereo 120 + 120 watt class d TPA 3116 D2

Detail Kit Power Amplifier stereo 120 + 120 watt class d TPA 3116 D2

Name: TPA3116D2 Digital Amplifier Board

Model: XH-M543

Tersedia 2 jenis Chip ;
- Ic Baru : 28 pin

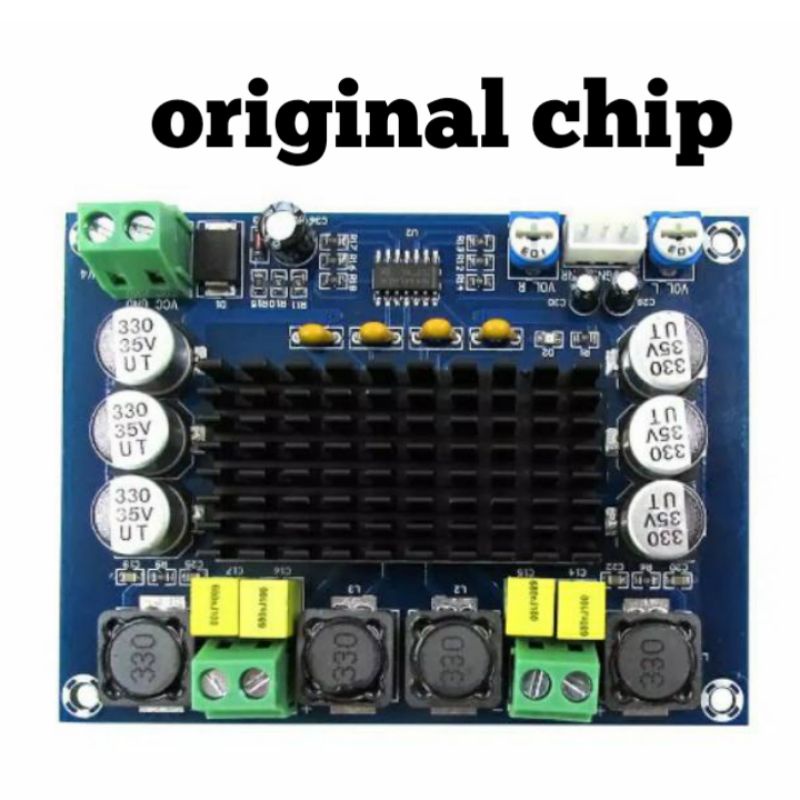

- Ic Original : 32 pin ( max 24 volt )

Chip type: TPA3116D2

Working voltage: DC12-26V

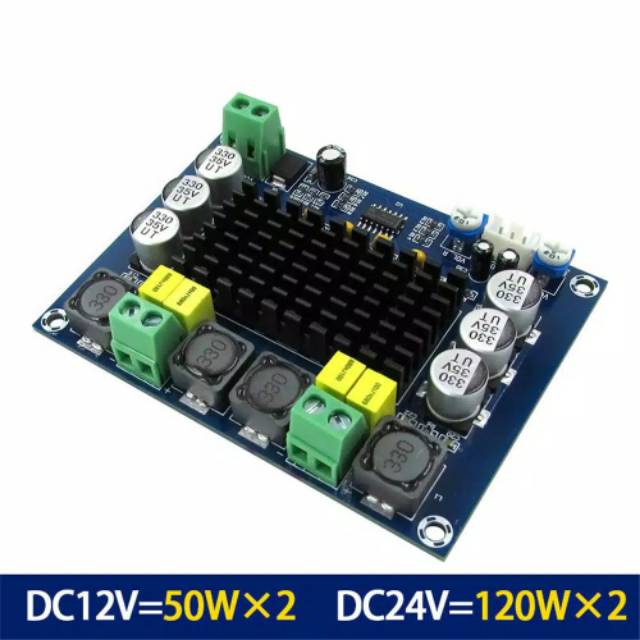

Output power: 120*2W MAX, DC12V, 2*50W,DC24V, 2*120W

Signal to noise ratio: 100db

Channel: Dual channel stereo

Size: 92 x 68 x 16mm

100W 24V, maximum rated current is 4.2A
The maximum is 100W, please try not to adjust to 100W
100W is the maximum amount, the current will follow the actual transfer to change, there is no fixed current

Included:
1 Board power TPA3116D2 2x120w stereo XH-M543.
3 in 1 kabel audio input.

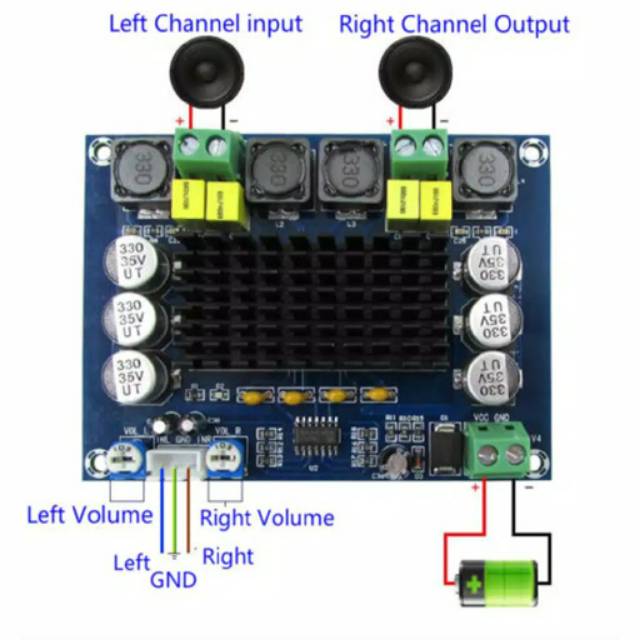

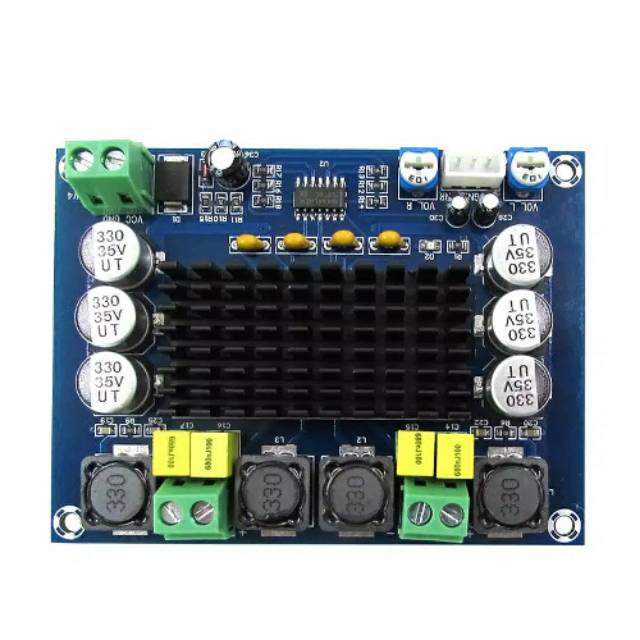

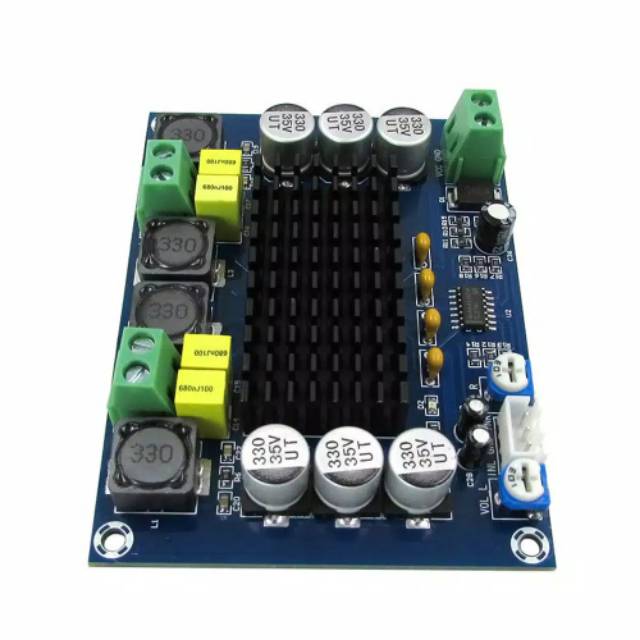

Gambar produk
