Detail Kit Modul Mp3 Bluetooth v 5.0 Plus Amplifier 2x3W Stereo 2*3W Mini

Kit Modul Mp3 Bluetooth v 5.0 Plus Amplifier 2x3W Stereo 2*3W Mini

6w Handsfree MP3 Player Decoder Board Bluetooth 5.0 Amplifier Mic FM Radio Module TF USB

Sepcification:
1. Microphone: Call function
2.TF: Connect TF memory card (maximum support 32GB)
3.AUX: audio input interface
4.DC 5V: Charging interface
5.ON/OFF: power switch
6.USB: Connect U disk (maximum support 32GB)
7.VOL-: Short press is to select the previous song; long press is to reduce the volume
8.PLAY/PAUSE: Short press is the switch between pause and play; long press is the FM FM automatic station
9.VOL+: Short press is to select the next song; long press is to increase the volume
10. MODE: USB / TF / FM / LINE IN / BLUETOOTH tone switching

Description
1. Master IC: AC5322B
2. Bluetooth IC: AC5322B Bluetooth version is version 5.0
3. Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
4. Power: 2*3W, connect 2 3W speakers
5. Radio FM frequency: 87.5-107.5 MHZ
6. Features: Support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / DC 5V

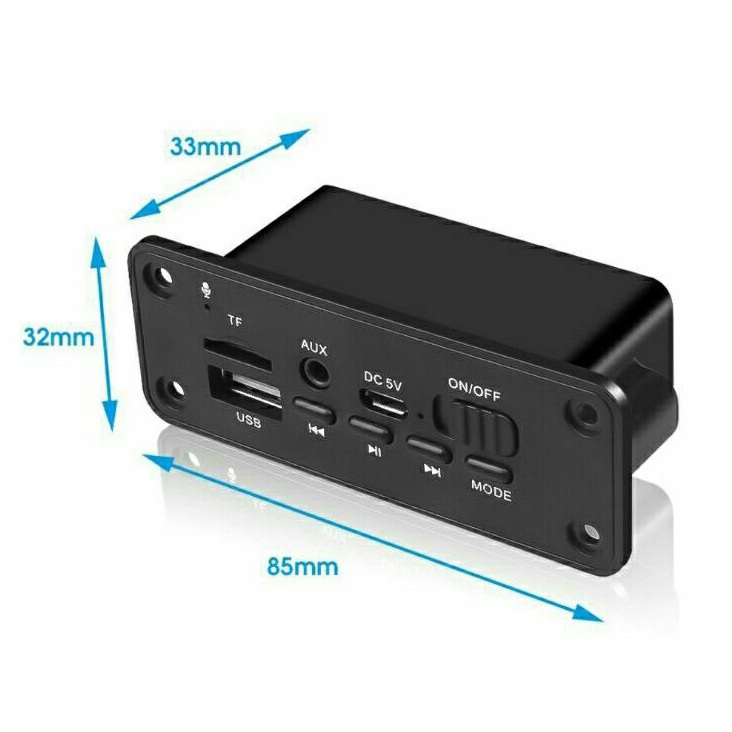

7. Panel size: 85 * 32 MM, the depth of the board is 33 MM
