Kit LM317 1.5A 40V DC-DC Buck Step Down Adjustable Regulator Voltage

Detail Kit LM317 1.5A 40V DC-DC Buck Step Down Adjustable Regulator Voltage

- Input DC 4.2 - 40V
- Output DC 1.2 - 37V
- Dimensi fisik 35mm x 17mm x tinggi (+/- 25mm)

catatan ;
-. Tegangan output lebih rendah dari tegangan input.
-. Putar trimpot untuk mengatur tegangan output.

Informasi lain mungkin dibutuhkan:

Output Current : 1.5A ( minimum ), 2.2A ( typical value )
Input-output voltage difference (VI-VO): 40Vdc ( max )
Adjustable output voltage range : 1.2 ~ 37V
Working temperature : -55 ° C to + 150 ° C
Current output : 1.5A
Voltage Input : 4.2 ~ 40 V
Operating temperature : 0 ° C ~ 125 ° C
Characteristic frequency : 100 (MHz)
Module size : 35.6 (mm) x16.8 (mm)

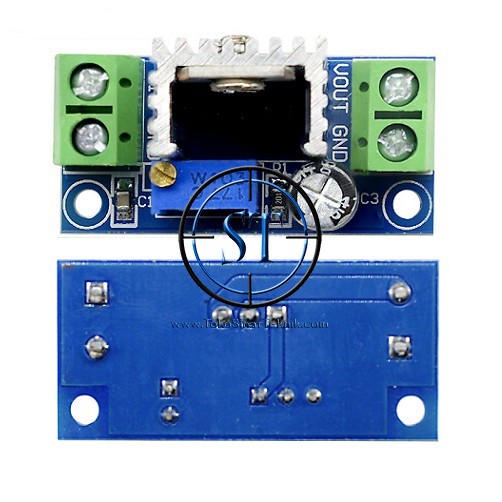

Gambar produk
