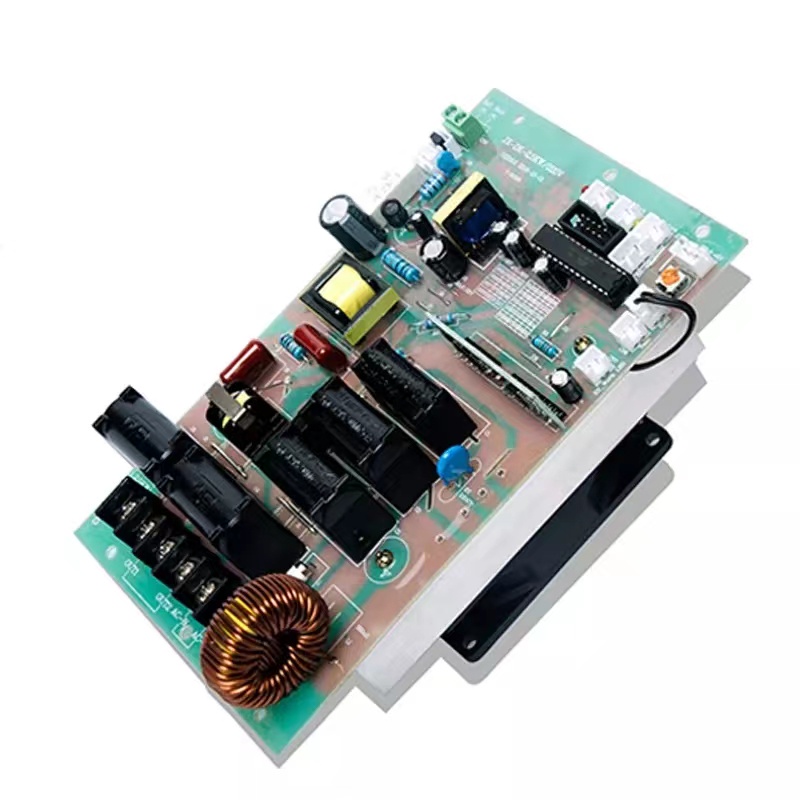

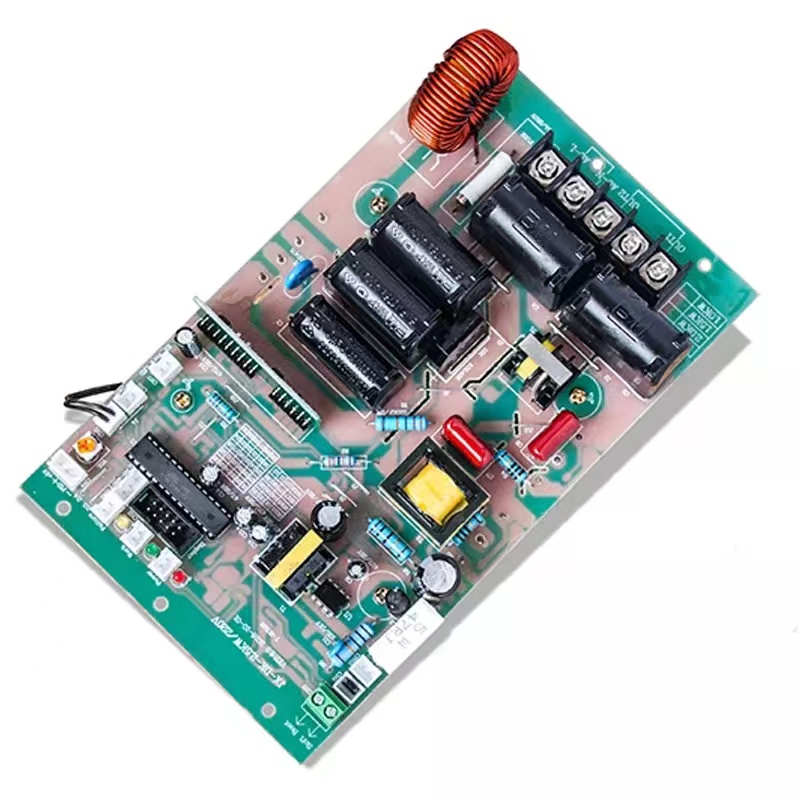

**PAPAN KONTROL PEMANAS INDUKSI ELEKTROMAGNETIK 220V 2500W MODUL PEMANAS INDUKSI** Perhatian : KHUSUS YANG AHLI DI BIDANG NYA, PRODUK SUDAH DI TES PABRIK SEBELUM PENGIRIMAN
Spesifikasi : • Rated Power : 2.5KW • Rated Voltage : AC 220V / 50Hz • Input Voltage Range : 100V - 260V , 210-260V constant power output • Work Environment Temperature : -20 ° C ~ 50 ° C • Work Environment Humidity : ≤ 95 % • Power Adjust : 20 % -100 % stepless adjustment ( ie : between 0.5-2.5KW ) • Thermal Transfer Efficient : ≥ 95 % • Effective Power : ≥ 85 % • Work Frequency : 5-40KHz • Main Circuit Structure : Half - Bridge Series Resonance • Control System : Digital Phase - Locking Automatic Tracking Control Based on AVR Microcontroller • Application Mode : Open Application Platform • Display : Programmable Digital Display • Start Time : < 1S • Instantaneous Over Current Protection Time : ≤ 2uS • Power Overload Protection : 130 % Instant protection • Soft Start Mode : 1. With full electrical isolation soft start heating / stop mode 2. With 12V and 24V input enable / stop modes • Supports PID Regulation Power : Identify 0-5V input voltage • Support 0 -150° C Load Temperature Detection : Accuracy of ± 1 ° C • Adaptation Coil Parameters : 4mm2 , Length 20-23m , Inductance 100-150uH • Coil and Load Distance ( insulation cotton thickness ) : When rounded 20-25mm , When the plane is 15-20mm , When the oval is 10-15mm . When super - elliptical less than 10mm
Catatan : Produk ini digunakan dengan risiko keselamatan pribadi atau persyaratan keselamatan khusus lainnya di butuhkan untuk pengoperasian!
Produk Ready Stok Silahkan Checkout Sekarang Juga Sebelum Kehabisan!! Beli 220V 2500W MODUL PEMANAS INDUKSI ini hanya di toko kami dengan harga terbaik karena komponen serta kualitas produk original tidak diragukan lagi.
