KIS3R33S KIS-3R33S DC 7V-24V To 5V 3A Step down converter modules

Elektronik > Elektronik Lainnya > KIS3R33S KIS-3R33S DC 7V-24V To 5V 3A Step down converter modules
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail KIS3R33S KIS-3R33S DC 7V-24V To 5V 3A Step down converter modules

Hi #RekanEasyWare ...
EasyWare Part#: EP000753

FITUR :
- DIY Mobile Power Supply, 5V output for charging Phone, MP3, MP4, PSP, etc
- Modules nature: non-isolated Buck
- With Overcurrent Protection
- Rectification: Non-synchronous rectification
- Note: Please connect right as the printed : N-,IN+,OUT-,OUT+ ,or else the Module will be burned

SPESIFIKASI :
- Input voltage: DC 7- 24V
- Output voltage: DC 5V
- Output current: 3A (max)
- Conversion efficiency: 96% (MAX)
- Switching frequency: 340KHz
- Output ripple: 30mV (max)
- Load regulation: ± 0.5%
- Voltage regulation: ± 2.5%
- Operating Temperature: -40 °to +85 °

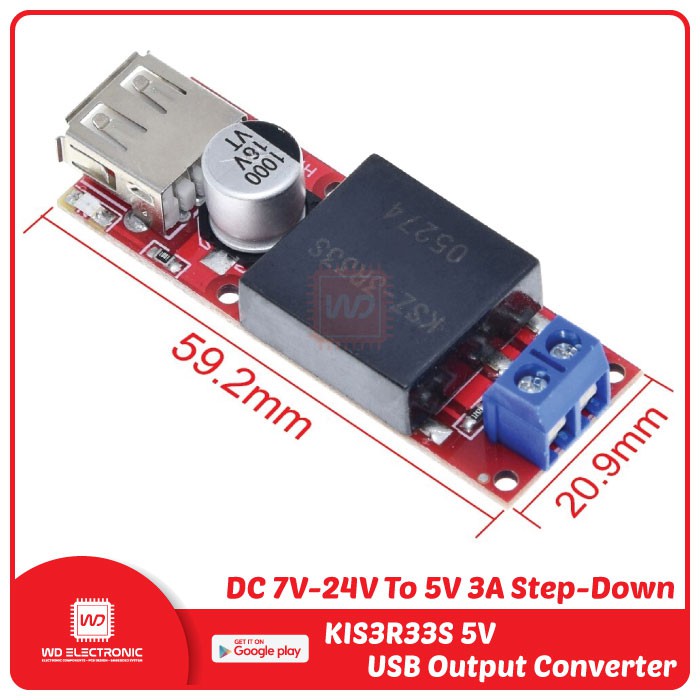

- Size: 6.2 x 2.1 x 1 cm

KELENGKAPAN :
- 1pcs KIS3R33S Step Down 3A 5V USB
