KIPAS BEARING HINGSPED DC 48V 15000rpm 15wat ukuran 6cm tebal mantap....

Detail KIPAS BEARING HINGSPED DC 48V 15000rpm 15wat ukuran 6cm tebal mantap....

Video perkenalan produk KIPAS BEARING HINGSPED DC 48V 15000rpm 15wat ukuran 6cm tebal mantap..... Sumber: Shopee.

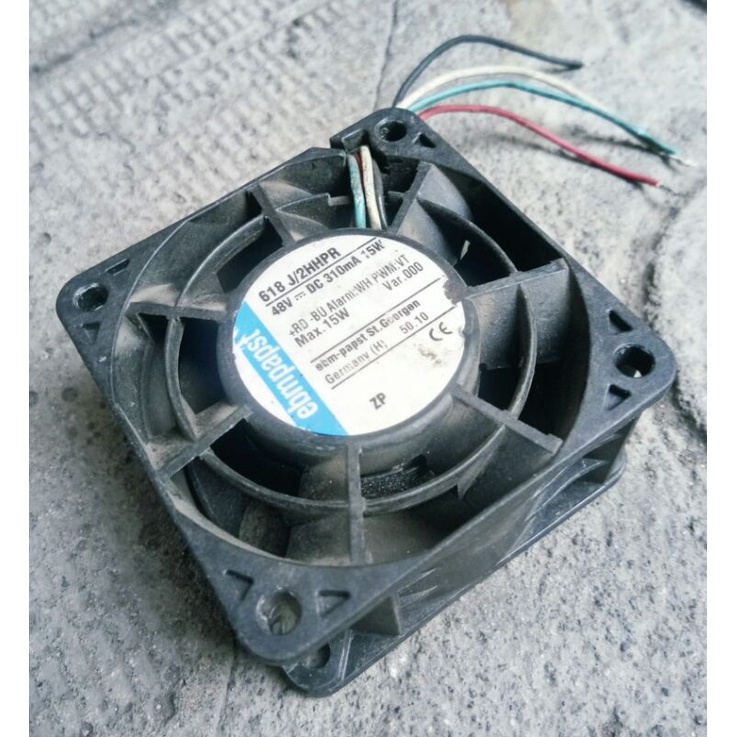

DC AXIAL FAN
Model 618 J/2 HHP
Brand ebmpapst Germany

– Material: Housing: GRP1) (PBT)
Impeller: GRP1) (PA)
– Direction of air flow: Exhaust over struts
– Direction of rotation: Clockwise,
looking towards rotor
– Connection: Via single wires AWG 24,

– Possible special versions:
(See chapter DC fans - specials)
- Speed signal
- Go / NoGo alarm
- Alarm with speed limit
- External temperature sensor
- PWM control input
- Analog control input
- Moisture protection

Air Flow 82 m3/h
Air Flow 48.3 cfm
Nominal Voltage 48Vdc
Range Voltage 38 ~ 58 Vdc
Current 310mA
Sound Pressure level 62 dB (A)
Sound Power level 7.6 Bel (A)
Power Consumption 15 watt
Nominal Speed 15.000
Termination 4 wire ( + red , - Blue , tacho White , and PWM black )
cara kerja nya : kabel mereh sendiri kabel putih sama hijau di gandeng hitam gak kepakai soal nya banyak yg kurang faham cara kerjanya
Dimension 60 x 60 x 32 mm
Dual ball bearing
3 blade fan
kispas ini tahan dgn percikan air
- redy setock

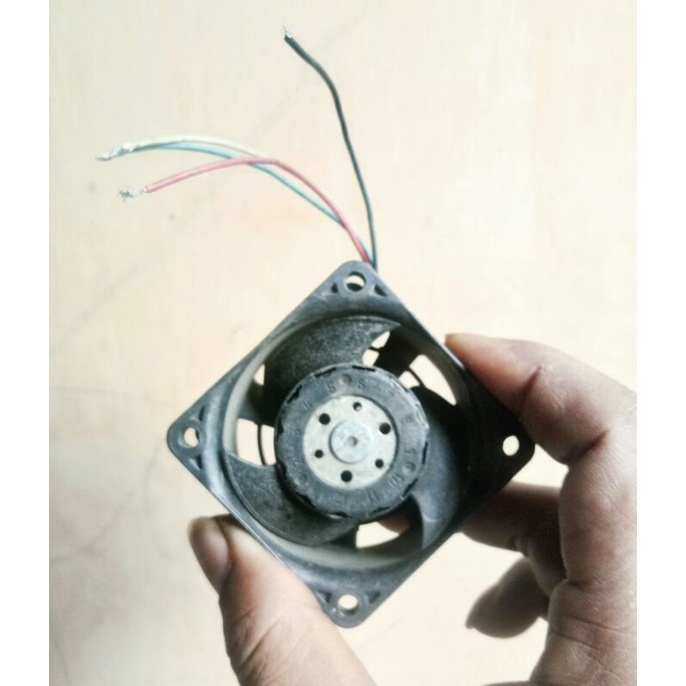

Gambar produk
