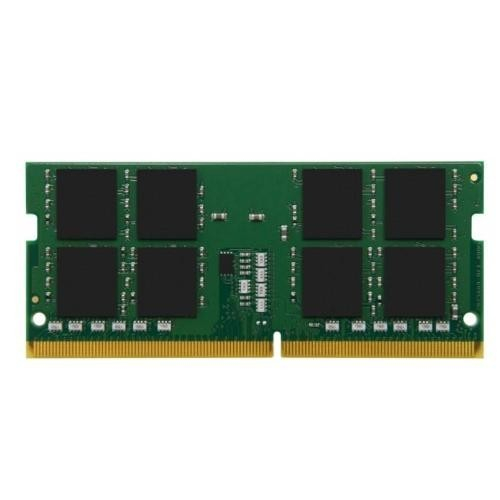

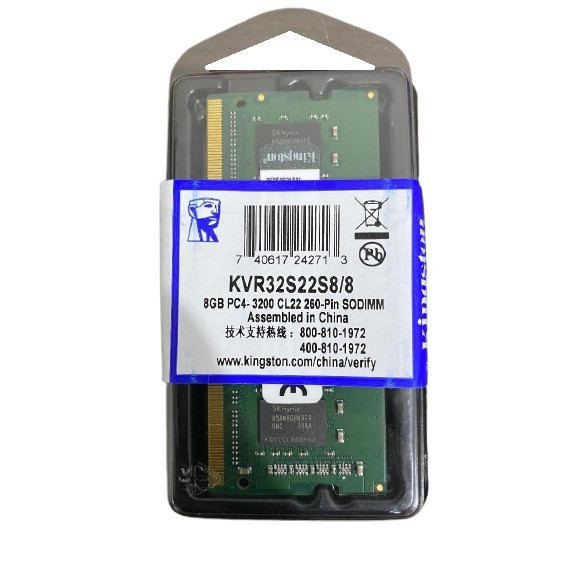

KVR32S22S8/8 8GB 1Rx8 1G x 64-Bit PC4-3200 CL22 260-Pin SODIMM
Memory Size: 8GB Memory Technology: DDR4 SDRAM Memory Voltage: 1.20 V Number of Modules: 1 x 8 GB Memory Speed: 3200 MHz
CL(IDD) : 22 cycles Row Cycle Time (tRCmin) : 45.75ns(min.) Refresh to Active/Refresh : 350ns(min.) Command Time (tRFCmin) Row Active Time (tRASmin) : 32ns(min.) UL Rating : 94 V - 0 Operating Temperature : 0C to +85C
• Power Supply: VDD = 1.2V Typical • VDDQ = 1.2V Typical • VPP = 2.5V Typical • VDDSPD = 2.2V to 3.6V • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals • Low-power auto self refresh (LPASR) • Data bus inversion (DBI) for data bus • On-die VREFDQ generation and calibration • Single-rank • On-board I2 serial presence-detect (SPD) EEPROM • 16 internal banks; 4 groups of 4 banks each • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) • Selectable BC4 or BL8 on-the-fly (OTF) • Fly-by topology • Terminated control command and address bus • PCB: Height 1.18” (30.00mm) • RoHS Compliant and Halogen-Free
