Kingston HyperX Predator RGB 3200MHz 16GB (2x8GB) PC25600- HX432C16PB3AK2/16

Detail Kingston HyperX Predator RGB 3200MHz 16GB (2x8GB) PC25600- HX432C16PB3AK2/16

MOHON UNTUK CEK STOK TERLEBIH DAHULU
GARANSI RESMI LIFETIME PT.NJT

HX432C16PB3AK2/16
16GB (8GB 1G x 64-Bit x 2 pcs.)
DDR4-3200 CL16 288-Pin DIMM Kit
Continued >>
FEATURES
HyperX HX432C16PB3AK2/16 is a kit of two 1G x 64-bit (8GB)
DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8,
memory module, based on eight 1G x 8-bit FBGA components
per module. Each module kit supports Intel® Extreme
Memory Profiles (Intel® XMP) 2.0. Total capacity is
16GB. Each module has been tested to run at DDR4-3200 at a
low latency timing of 16-18-18 at 1.35V. The SPDs are
programmed to JEDEC standard latency DDR4-2400
timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold
contact fingers. The JEDEC standard electrical and
mechanical specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Maximum Operating Power
UL Rating
Operating Temperature
Storage Temperature
17 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
TBD W*
94 V - 0
0o
C to +70o
C
-40o
C to +85o
C
XMP TIMING PARAMETERS
•JEDEC: DDR4-2400 CL17-17-17 @1.2V
•XMP Profile #1: DDR4-3200 CL16-18-18 @1.35V
•XMP Profile #2: DDR4-3000 CL15-17-17 @1.35V
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.4V to 3.3V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• HyperX Infrared Sync working distance 18mm
• Factory preset RGB wave lighting effect
• Height 1.661” (42.20mm)

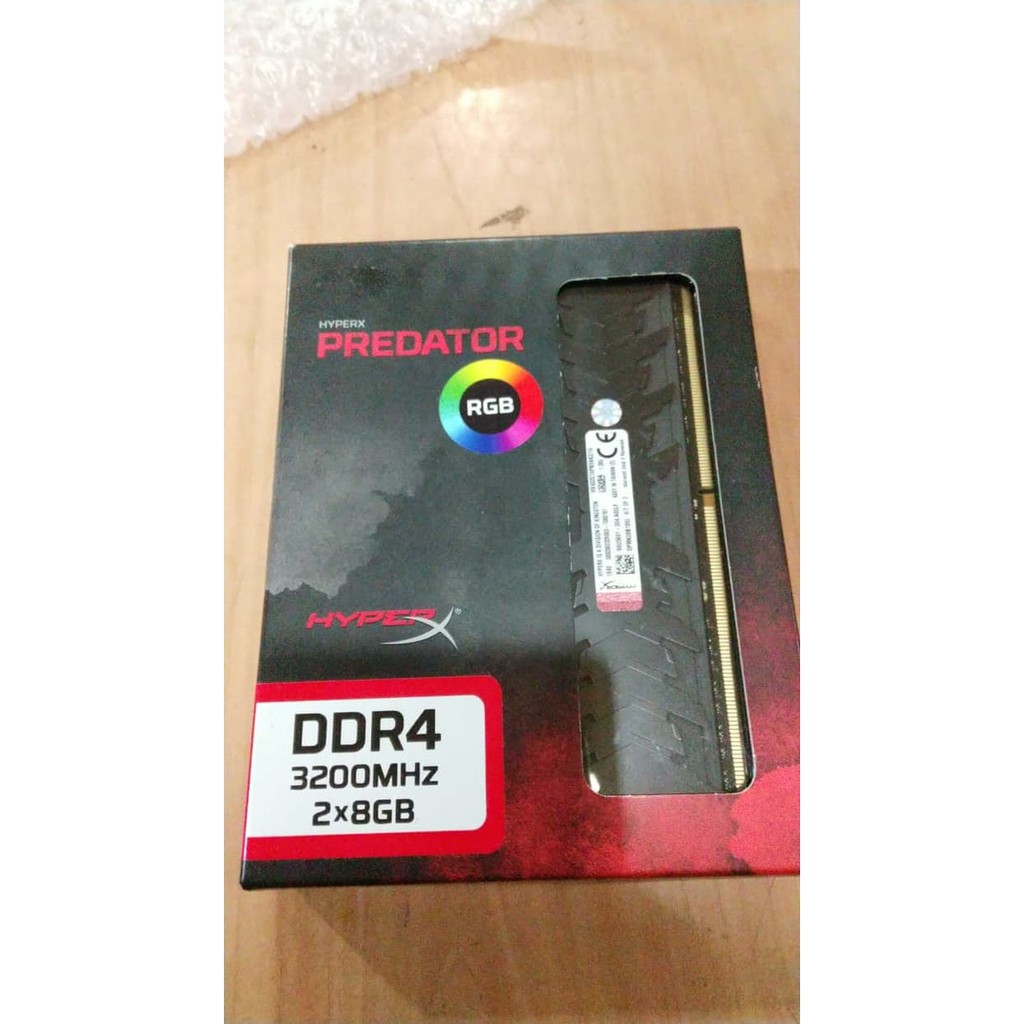

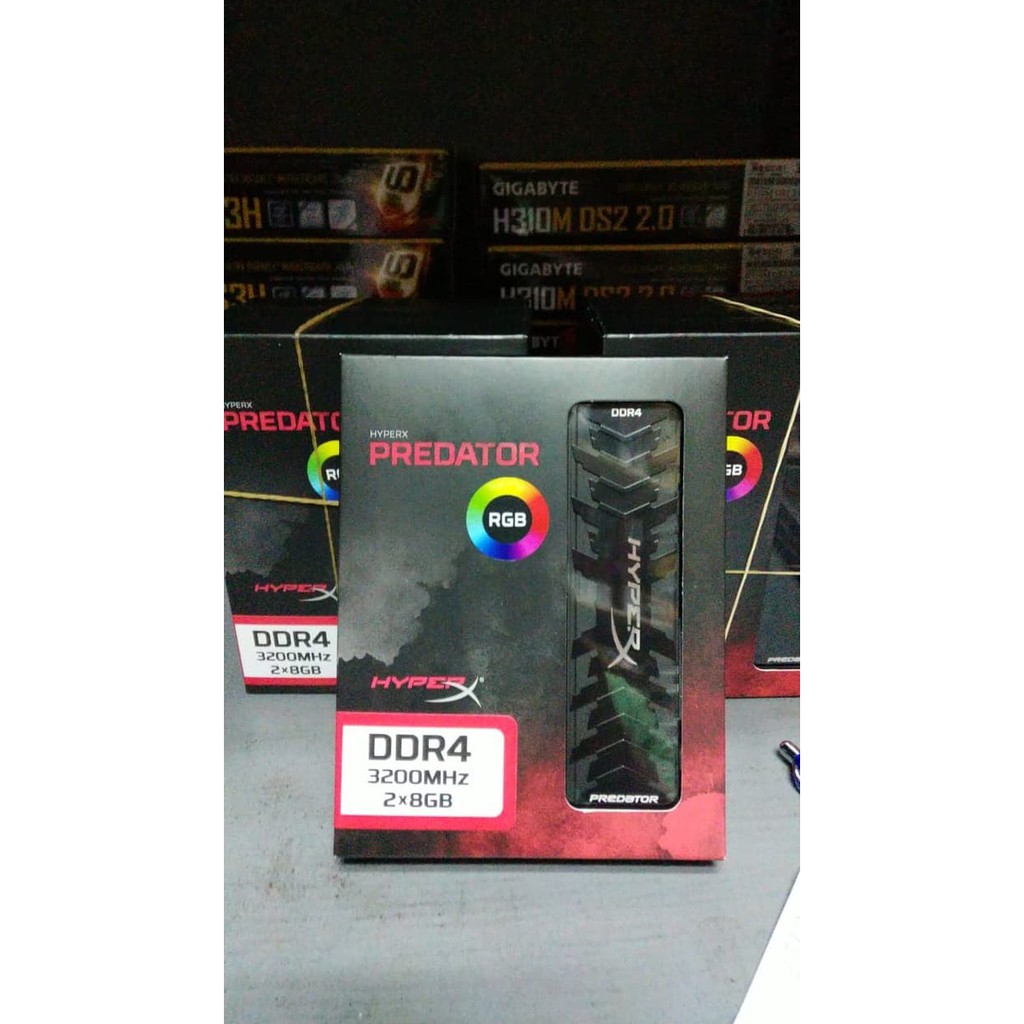

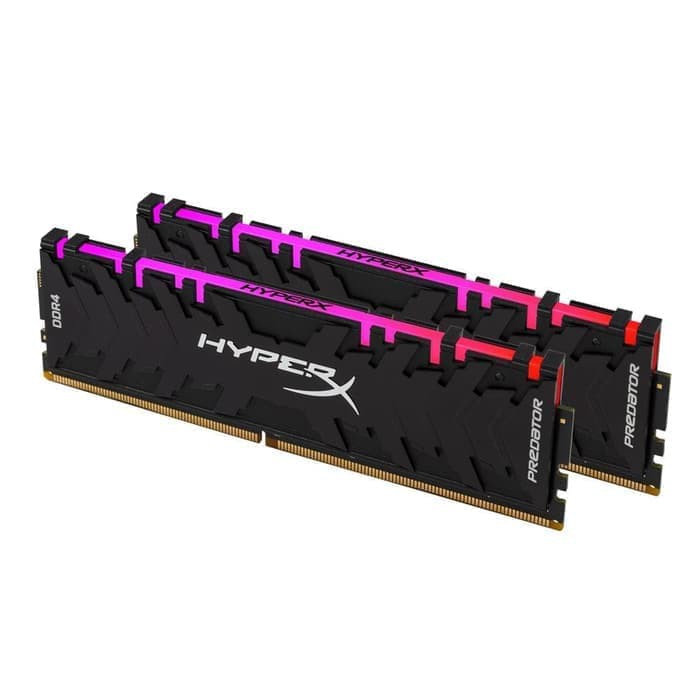

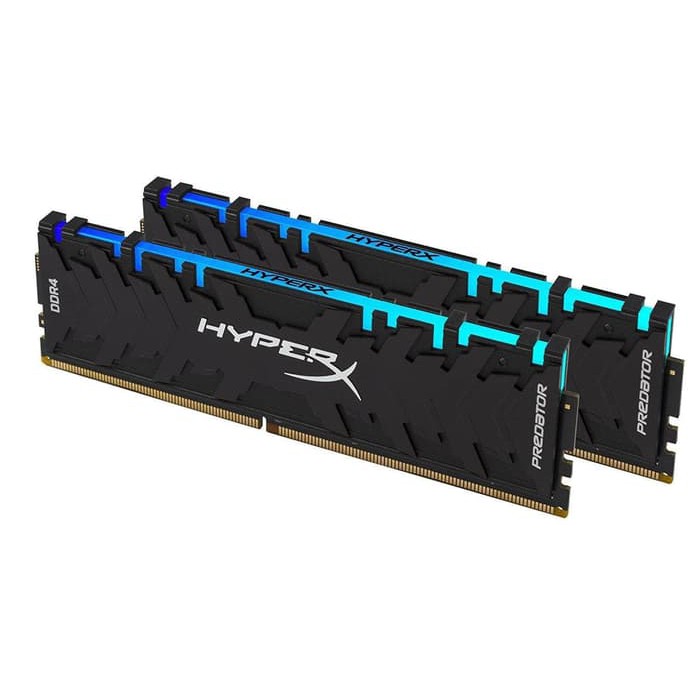

Gambar produk
