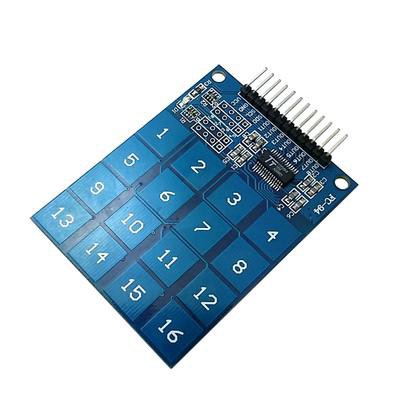

Detail KEYPAD TTP229 16 CHANNEL SWITCH FOR ARDUINO
Spesifikasi: - Operating voltage 2.4V - 5.5V. - Built-in regulator with external enable / disable option. - Operating current @VDD= 3V : At low power mode typical 2.5uA. At fast mode typical 9.0uA. - Sensitivity can adjust by the capacitance (0~50pF) outside for each touch pad. - Provides Fast mode and Low Power mode selection by pad option (LPMB pin). - Provides direct mode or toggle mode CMOS output or open drain output. - Active high or active low by pad option (TOG/OD/AHLB pin). Provides 2 output pins TPQ0D, TPQ2D that have no diode protection, active low.tduino - Have the maximum on time 120sec / 64sec / 16sec / infinite by pad option (MOT1, MOT0 pin); After power-on have about 0.5sec stable-time, during the time do not touch the key pad, and the function is disabled. - Auto calibration for life, and the re-calibration period is about 4.0sec, when key has not be touched. - PCB board size: 49.3mm x 64.5mm
