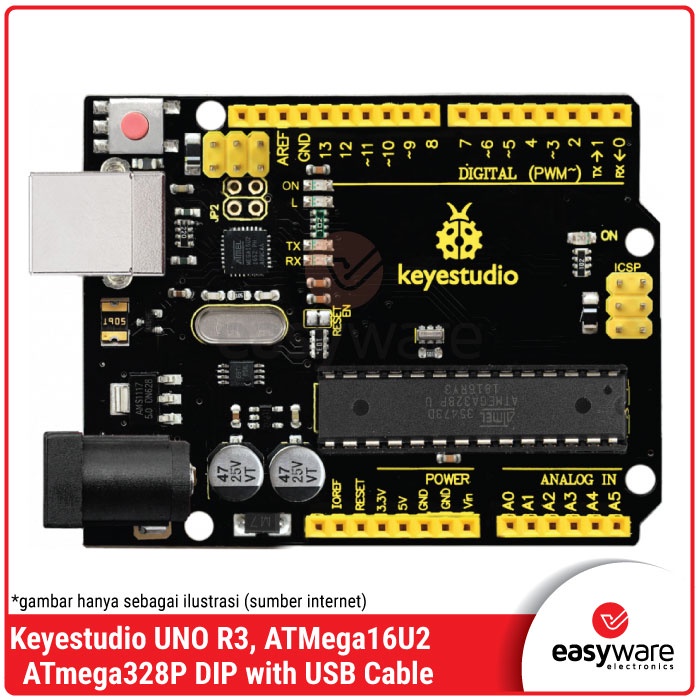

Keyestudio UNO R3 DIP ATmega16U2 with cable like arduino uno r3 board

Detail Keyestudio UNO R3 DIP ATmega16U2 with cable like arduino uno r3 board

Hi #RekanEasyWare ...
EasyWare Part#: EP000637

*** Keyestudio merupakan sebuah brand teknologi yang fokus dibidang robotik dan microcontroller. Kami menjamin bahwa produk dari Keyestudio memiliki kualitas lebih baik dari clone biasa. Kami bisa bilang ini lebih baik dari brand RobotDyn. Brand ini juga dilengkapi dengan tutorial setiap produknya. Chat kami jika ingin meminta datahseetnya. Terima kasih ***

keyestudio Uno R3 is a microcontroller board based on the ATmega328 (datasheet), fully compatible with ARDUINO UNO REV3.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, 2 ICSP headers and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Note that the two ICSP headers are separately used to program the firmware to ATMEGA16U2-MU and ATMEGA328P-PU, but generally the two chips have been programmed well.
The Uno R3 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 programmed as a USB-to-serial converter.
The UNO is the best board to get started with electronics and coding. If this is your first experience tinkering with the platform, the UNO is the most robust board you can start playing with.

Features :
- 1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board.
- Stronger RESET circuit.
- Atmega 16U2 replace the 8U2.

Package :
- 1x UNO R3 board
- 1x 50cm usb cable type a

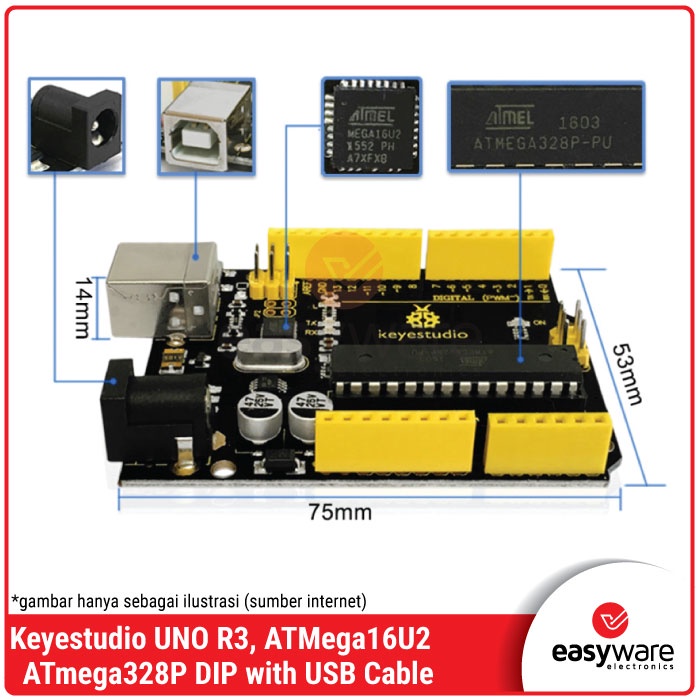

Gambar produk
