Keyestudio NANO CH340 Board with cable like Arduino Nano V3 CH340G

Detail Keyestudio NANO CH340 Board with cable like Arduino Nano V3 CH340G

Hi #RekanEasyWare ...
EasyWare Part#: EP000635

*** Keyestudio merupakan sebuah brand teknologi yang fokus dibidang robotik dan microcontroller. Kami menjamin bahwa produk dari Keyestudio memiliki kualitas lebih baik dari clone biasa. Kami bisa bilang ini lebih baik dari brand RobotDyn. Brand ini juga dilengkapi dengan tutorial setiap produknya. Chat kami jika ingin meminta datahseetnya. Terima kasih ***

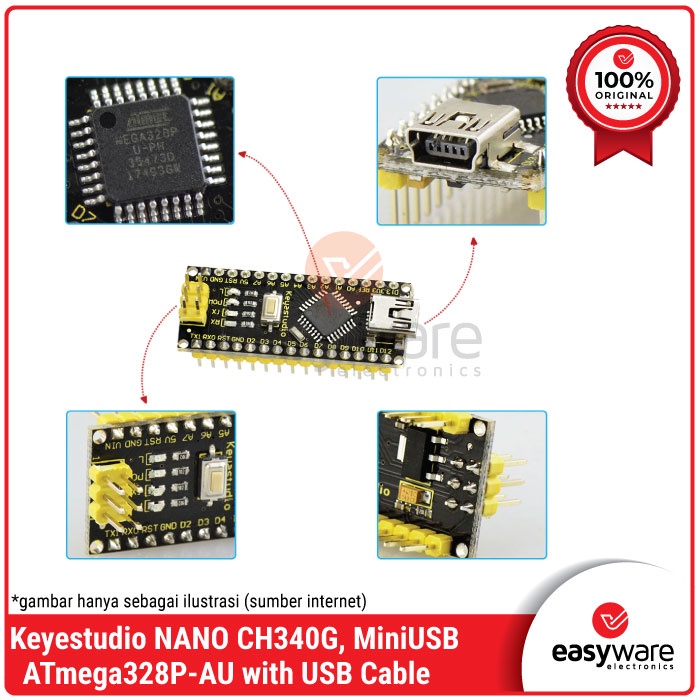

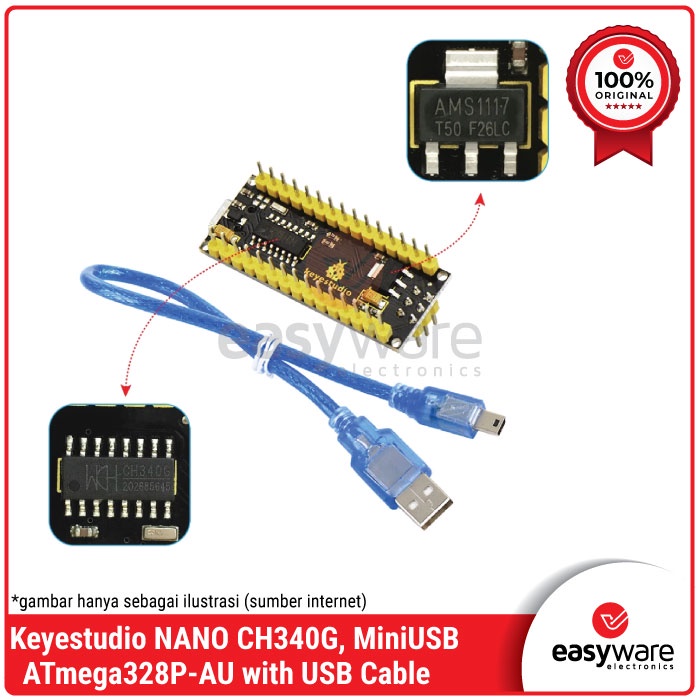

The processor core of Keyestudio Nano CH340 is atmega328p-au. It is as same as the official Arduino Nano in addition to driver file and USB to serial chip (CH340G). It also has a 14 digital input / output interfaces (6 of which can be used as PWM output), 8 analog input interfaces, 1 16MHz crystal oscillator, 1 mini USB port, 1 ICSP interface, and a reset button.
The ICSP interface is used to burn firmware to Atmega328P-Au. Since this chip we burn firmly in front of the factory, it is generally not available. When using the Mini USB cable, we can use the VIN GND (DC 7-12V) to power.
What’s more, you can burn the firmware for Atmega328P-Au through the built-in ICSP port. The firmware of this chip is burnt well before delivery, therefore, you don’t need to burn the firmware.
The power can be supplied through USB cable, port 5V , GND（DC 5V), as well as Vin GND (DC 7-12V).

Spesifications :
- Microcontroller: ATmega328P-AU
- Operating Voltage: 5V
- Input Voltage (recommended): DC 7-12V

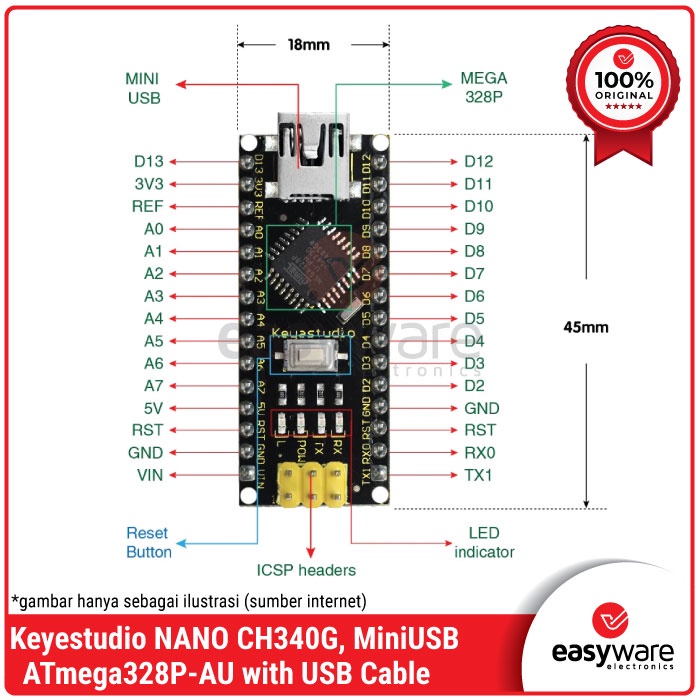

- Digital I/O Pins: 14 (D0-D13) (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6 (D3, D5, D6, D9, D10, D11)
- Analog Input Pins: 8 (A0-A7)
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32 KB of which 2 KB used by bootloader
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- LED_BUILTIN: D13

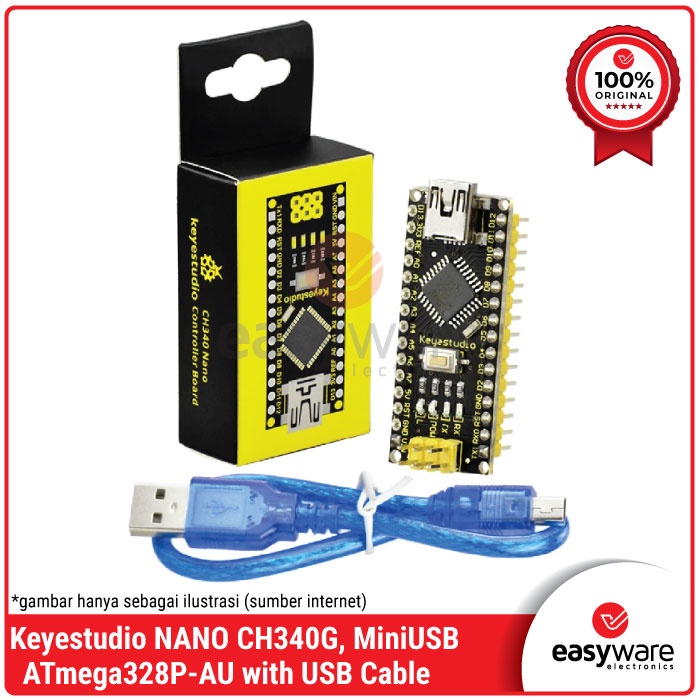

Package :
- 1x Board

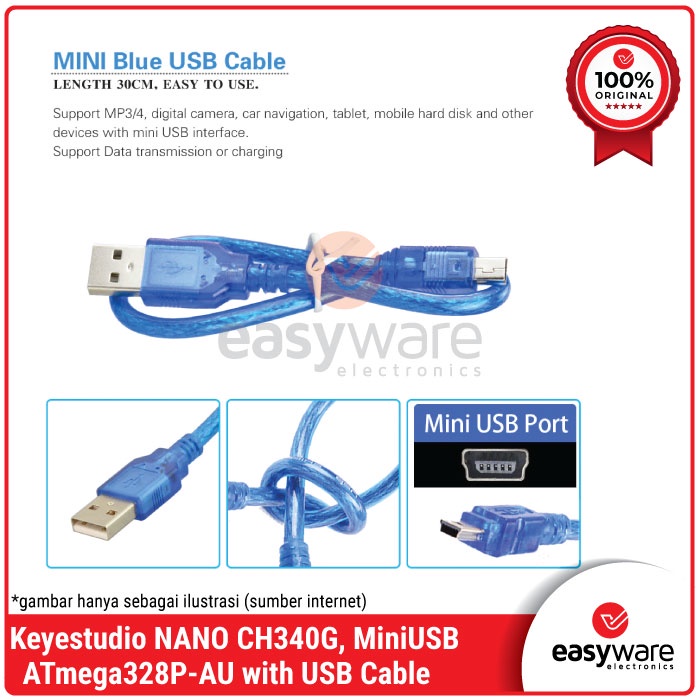

- 1x Cable
