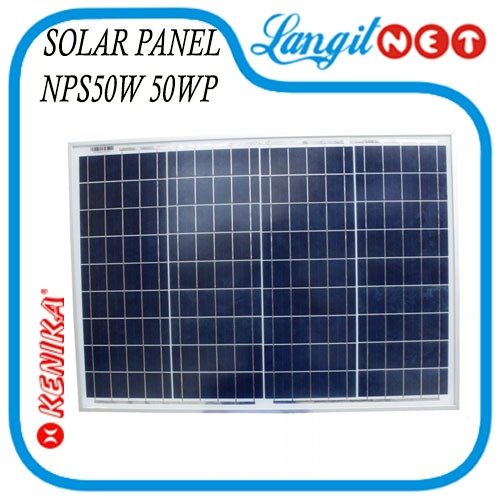

KENIKA NPS50W SOLAR PANEL 50WP POLICRYSTALLINE

Detail KENIKA NPS50W SOLAR PANEL 50WP POLICRYSTALLINE

VIDEO PRODUK : youtube.com/watch?v=HJ4qtG8UON0

Tipe Polycrystalline ini mempunyai kelebihan yaitu tetap dapat menyerap energi matahari dengan baik dikala kondisi cahaya matahari kurang / mendung dibandingkan dengan panel jenis Monocrystalline.

Electrical Characteristics
* STC :
- Maximum Power (Pmax) : 50Wp
- Maximum Power Voltage (Vmpp) : 18.0V
- Maximum Power Current (Impp) : 2.78A
- Open Circuit Voltage (Voc) : 22.5V
- Short Circuit Current (Isc) : 3.01A
* NOCT :
- Maximum Power (Pmax) : 37Wp
- Maximum Power Voltage (Vmpp) : 16.8V
- Maximum Power Current (Impp) : 2.21A
- Open Circuit Voltage (Voc) : 21.2V
- Short Circuit Current (Isc) : 2.39A

Electrical Characteristics :
- Power Tolerance(Positive : 5%
- Module Efficiency STC : 15.55%
- Operating Temperature Range : -40to +85
- Maximum System Voltage : 715V
- Series Fuse Rating : 12A
- Temperature Coefficient of Isc : 0.055%/
- Nominal Operating Cell Temperature(NOCT) : 452?

Mechanical Characteristics
- Cell Type : Polycrystalline 156.75x156.75mm
- Cell Number : 36 (4x9)
- Front Glass : 3.2 mm, High Transmission, Low Iron,Tempered Glass
- Frame Type : Anodized Aluminium Alloy
- Junction Box Protection Class : IP 67 Rated
- Connector Type ; MC4
- Output Cables : 2.5 mm , Length: 900 mm

Gambar produk
