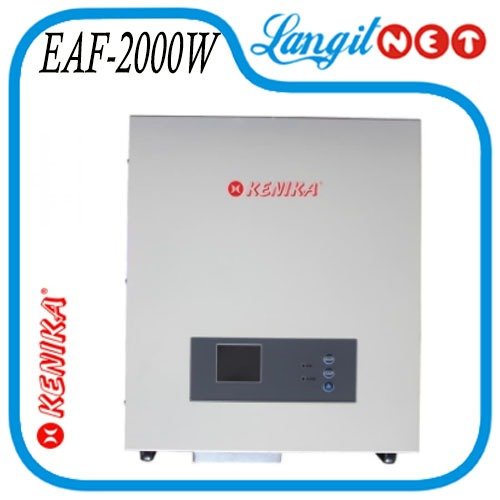

KENIKA EAF-2000W SOLAR INVERTER MPPT 48V 2000W HYBRID OFF-GRID

Detail KENIKA EAF-2000W SOLAR INVERTER MPPT 48V 2000W HYBRID OFF-GRID

VIDEO PRODUK :
youtube.com/watch?v=5IGR8bqNITA

PV INPUT
- Max. Input Voltage (Voc): 150 Vdc
- Optimum Operating Voltage (Vmp): 65 120 Vdc
- Max. Charging Current: 50 A
- Recommended PV Configuration: 2800 W

AC INPUT
- AC Input Range (Bypass Mode): 0 132 Vac / 0 264 Vac (High-End Limit)
- Rated Input Voltage: 100 Vac / 110 Vac / 115 Vac / 120 Vac or 200 Vac / 220
Vac / 230 Vac / 240 Vac 25%
- Rated Input Frequency: 50 Hz / 60 Hz 5% / 10% / 15% (Settable)
- Max. Charging Current: 20A

INVERTER OUTPUT
- Output Voltage: 100 Vac / 110 Vac / 115 Vac / 120 Vac 2% or 200 Vac / 220
Vac / 230 Vac / 240 Vac 2% (Settable)
- Rated Output Power: 2000 W
- Power Factor: 1
- Rated Output Frequency: 50 Hz / 60 Hz 1%
- Waveform: Sinusoidal
- Max. Efficiency (Resistive Load): 85%
- Sleep Mode: Settable (< 3% Load) Access in 2 Min
- Output Voltage Harmonic: 3% (Linear Load)

BATTERIES
- Charging Current: 5 50 A Settable
- DOD: 9.6 13.0 Vdc / Cell (Settable), 10.8 Vdc / Cell (Default)
- EOD: 9.6 11.5 Vdc / Cell (Settable), 10.2 Vdc / Cell (Default)
- Equalizing Charge Voltage: 13.6 15.0 Vdc / Cell (Settable), 14.1 Vdc / Cell
(Default)
- Floating Charge Voltage: 13.2 14.6 Vdc / Cell (Settable), 13.5 Vdc / Cell
(Default)
- Restoration Point of Overvoltage: 62.0 Vdc

OTHERS
- Transfer Time: 3 6 ms (Typical); 10 ms (Max.)
- Overload (Linear Load): 105% for 5 mins, 110% for 2 mins, 125% for 1 mins,
150% for 10 s, 180% for 1 s
- ECO Mode (Optional): Load < 3% (Settable), Yes / No Settable
- No-Load Shutdown (Optional): Load < 3% 50%, Yes / No Settable
- Load Adaptation: Inductive Load: 30%; Capacitive Load: 50%; Resistive
Load: 100%
- Protections: Output Overload Short-Circuit Overdischarge Overchange
Battery Reverse Polarity PV Reverse Polarity
- Lightning Protection: Class III
- Communications: RS232 / USB / RS485; SNMP / Wi-Fi / GPRS (Optional)
- Standards: IEC62040, IEC / EN 61000

Gambar produk
