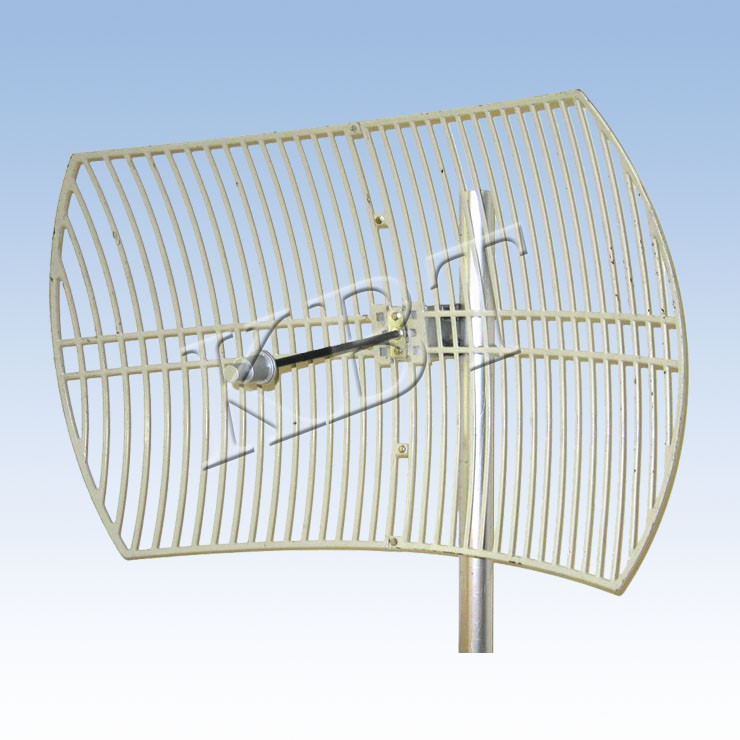

Detail Kenbotong TDJ-5800SPL9 5GHz Parabolic Antenna Grid 30dBi

Overview Of Kenbotong Antenna Antena Grid KBT 5,8Ghz 30dBi TDJ-5800SPL9

Applications:
* 5.8GHz WLAN,WiFi system
* 5.8GHz band
* Support IEEE802.11a,g
* Long-distance transmission
* Point to point system
* Wireless bridges

Features:
* High gain, Low VSWR
* Aluminum die cast reflector
* Low wind loading
* UV stable coat finish
* Vertical or horizontal polarization
* Supplied with down-tilt & swivel bracket

Specifications
Model : TDJ-5800SPL9
Frequency Range-MHz : 5725-5850
Bandwidth-MHz : 125
Gain-dBi : 30
Vertical Beamwidth- : 6
Horizontal Beamwidth- : 4
F/B Ratio-dB : =25
VSWR : =1.5
Impedance-O : 50
Polarization : Vertical or Horizontal
Maximum Power-W : 100
Connector : N Female
Dimensions-m : 0.60.9
Weight-Kg : 4.5
Mounting Mast Diameter-mm : ?40 to 50
