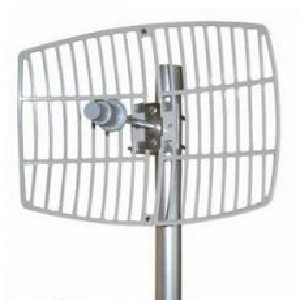

Kenbotong TDJ-5800SPL6 5GHz Wifi Parabolic Antenna Grid 27dBi

Komputer & Aksesoris > Komponen Network > Wireless Adapter & Kartu Network > Kenbotong TDJ-5800SPL6 5GHz Wifi Parabolic Antenna Grid 27dBi
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Kenbotong TDJ-5800SPL6 5GHz Wifi Parabolic Antenna Grid 27dBi

TDJ-5800SPL6 5GHz Wifi Parabolic Antenna
antenna Grid 27dbi 5.8ghz

Applications: Features:
* WLAN,WiFi systems
* Long-range Directional Applications
* Point to Point/Point to Multi-point Systems
* Wireless Bridges
* Wireless Video Systems * High gain
* Superior performance
* Aluminum Die Cast Grid
* UV stable light gray powder coat finish
* All weather operation
* Easy to assemble

Specifications
Model
TDJ-5800SPL6
Frequency Range-MHz
5725-5850
Bandwidth-MHz
125
Gain-dBi
27
Vertical Beamwidth-°
9
Horizontal Beamwidth-°
6
F/B Ratio-dB
≥25
VSWR
≤1.5
Impedance-Ω
50
Polarization
Vertical or Horizontal
Maximum Power-W
100
Connector
N female
Dimensions-m
0.4×0.6
Weight-Kg
2.4
Mounting Mast Diameter-mm
Ф40 to 50

Gambar produk

Kenbotong TDJ-5800SPL6 5GHz Wifi Parabolic Antenna Grid 27dBi
Kenbotong TDJ-5800SPL6 5GHz Wifi Parabolic Antenna Grid 27dBi
Kenbotong TDJ-5800SPL6 5GHz Wifi Parabolic Antenna Grid 27dBi
Kenbotong TDJ-5800SPL6 5GHz Wifi Parabolic Antenna Grid 27dBi
