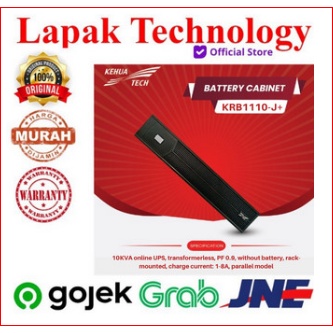

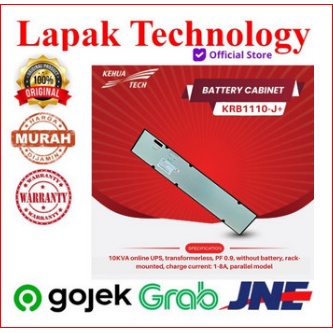

KEHUA Tower UPS Baterai KRB1110-J+

Detail KEHUA Tower UPS Baterai KRB1110-J+

Green Power:
● AC/AC efficiency up to 95%, less operation cost and
more energy saving
● Output power factor up to 1.0 (optional), more powerful to
connect more critical loads
● Input PF >0.99 and THDi <5%, less power pollution and
lower TCO

Flexible Rear Panel Configuration:
● Dry contact kits and SNMP are optional
● Selectable output sockets
● External battery pack port available

User-friendly and Easy-shift LCD Display:
● Intelligent RS232+USB+EPO
● ECO function
● Selectable output sockets
● Rack and tower convertible
● Suitable for vertical/horizontal installation
● External battery bank, rack kits (optional)+

INPUT
Voltage (Vac) : 80-275
Frequency (Hz) : 50/60± 10% (50/60Hz auto-sensing)
Power Factor : ≥0.99
THDi : <5%

OUTPUT
Capacity (VA) : 10000
Max. AC/AC Efficiency : 95,5%
Power Factor : 0.9 (1.0 optional)
Voltage (Vac) : 208/220/230/240±1% (settable on display panel)
Frequency (Hz) : 50/60±0.2% (battery mode)
THDv : THD <2% (linear load), THD < 5% (nonlinear load)
Transfer Time (ms) : 0

BATTERY
Voltage (Vdc) : 192/240
Battery Type : without battery
Charger Current (A) Max. : 1/8

GENERAL
- Communication Interface : RS232, EPO, USB (slot) (SNMP, RS485+dry contact are optional in slot)
- LCD Display : AC input & output voltage, frequency, load level, battery level, temperature;
AC mode, battery mode, bypass mode, and fault
- Alarm : Low battery, abnormal AC input, UPS failure, etc.
- Protection : Low battery, overload, short-circuit and over temperature, etc.
- Noise (dB) : < 50
- Working Temperature (°C) : -5~40
- Relative Humidity : 0~95%, no condensation
- Dimension (W×D×H) mm (standard) : 438×413×2U (UPS)+ 438×413×2U (Batt. pack)
- Dimension (W×D×H) mm (long backup) : 438×413×2U
- Weight (kg) : 7.2+13/8

NOTE :
- 2 Year Warranty for UPS
- 1 Year Warranty for battery

Gambar produk
