katrol - electric winch 12V 12000lbs - derek mobil elektrik

Detail katrol - electric winch 12V 12000lbs - derek mobil elektrik

performance : DC 12V / 24V
single line rated pull : 12000lb (5443kg)
Motor : 6.0hp / 4.5kw, series wound
control : remote switch 12ft (3.7m) lead
gear train : 3 stage planetary
gear reduction ratio : 265:1
clutch : sliding ring gear
breaking action : automatic in the drum
drum size : diameter 2.52 (+- 64mm) lenght 8.82 (+-224mm)
cable : 88ft of 3/8 +-diameter (27m of 9.5mm diameter)
fairlead : 4way roller fairlead
remote control : included
battery : recommended 650cca minimum for winching
battery leads : 2 gauga , 73 (1.83m)
nw/gw : 34kg / 36kg
overall dimentions : LxWxH 213.x6.3x8.6 (552x160x218mm)
Mounting bolt pattern 10 +- 0.015x4.5 +- 0.010 +- (254x114.3 mm)
meas : 61x19.5x48.5 (1pcs)

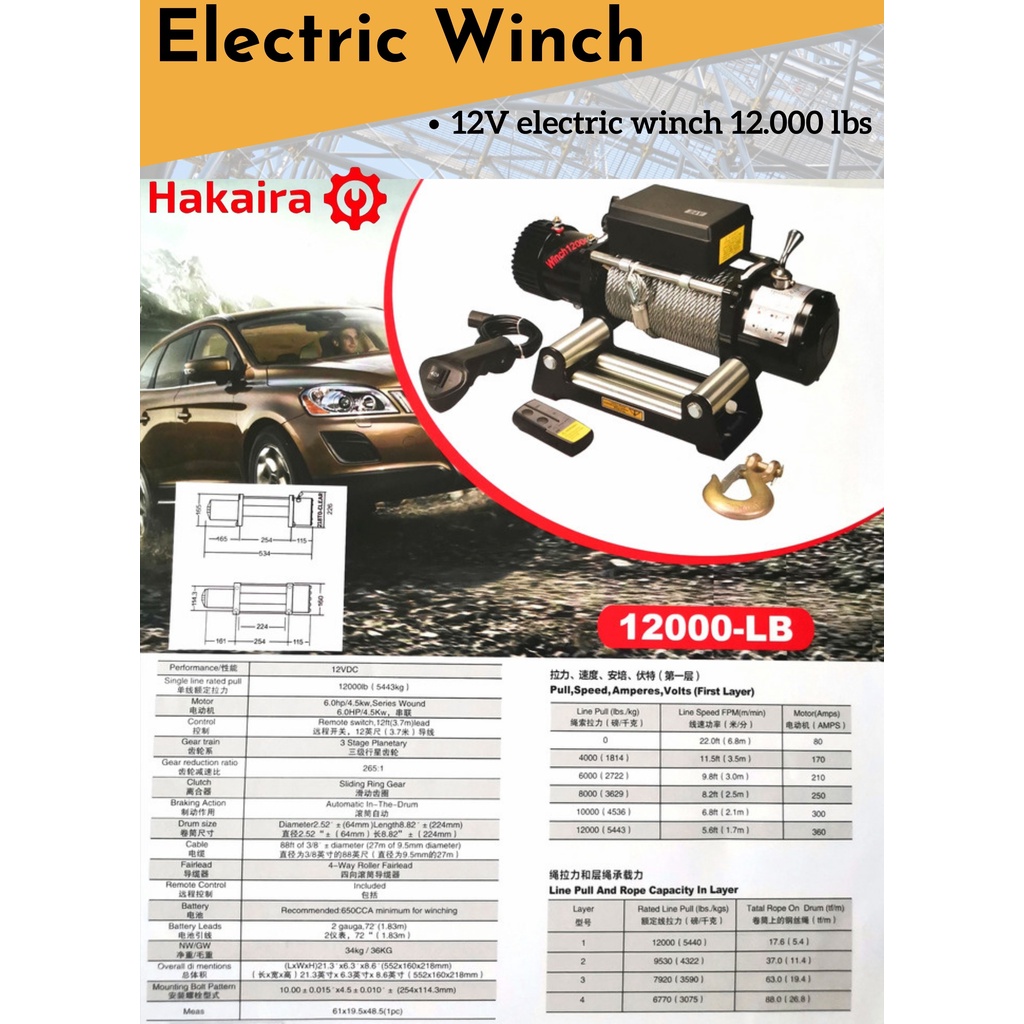

Gambar produk
