Kamera CCTV Indoor DAHUA Audio HAC-HDW1240TRQP-A-DIP 2MP AUDIO

Detail Kamera CCTV Indoor DAHUA Audio HAC-HDW1240TRQP-A-DIP 2MP AUDIO

Deskripsi CAMERA DAHUA + AUDIO 1080P HAC-HDW1240TL-A
Garansi 3 tahun

SPESIFIKASI CAMERA
Image Sensor 1/2.7" CMOS
Effective Pixel 1920 (H)1080 (V), 2MP
Electronic Shutter Speed

PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s

Minimum Ilumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
IR Distance Up to 30m
IR On/Off control Auto/Manual
IR LEDs 1
Pan/Tilt/Rotation Range Pan: 0 360
Tilt: 0 78
Rotation: 0 360
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8mm; 3.6mm
Max. Aperture F1.85/F2.0
Angle of View 2.8mm: 118 103 59 (diagonalhorizontalvertical)
3.6mm: 103.8 87.5 47 (diagonalhorizontalvertical)
Iris Type Fixed iris
Close Focus Distance 0.5m / 0.9m
DORI Distance 2.8mm: D:37m, O:15m, R:8m, I:4m
3.6mm: D:53m, O:21m, R:11m, I:5m
Video
Resolution 1080P (); 720P (1280720); 960H (960 576/960480)
Frame Rate

CVI:
PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fps
AHD: PAL: 1080P@25fp; 720P@25fps
NTSC: 1080P@30fp; 720P@30fps
TVI: PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fps

CVBS: PAL: 960H
NTSC: 960H

Day/Night Auto switch by ICR
BLC Mode BLC / HLC / DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR YES
Mirror Off/On
Privacy Masking Off/On (8 Area, Rectangle)
Certification
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Port Built-in mic (-A)
Power
Power Supply 12V30% DC
Power Consumption Max 3.6W (12V DC, IR on)
Environment
Operating Temperature -40C to +60C (-40F to +140F); Storage Temperature -40C to +60C (-40F to +140F); Protection Grade IP67
Structure
Casing Inner core: metal+plastic;
cover: plastic
Dimensions 97.0m

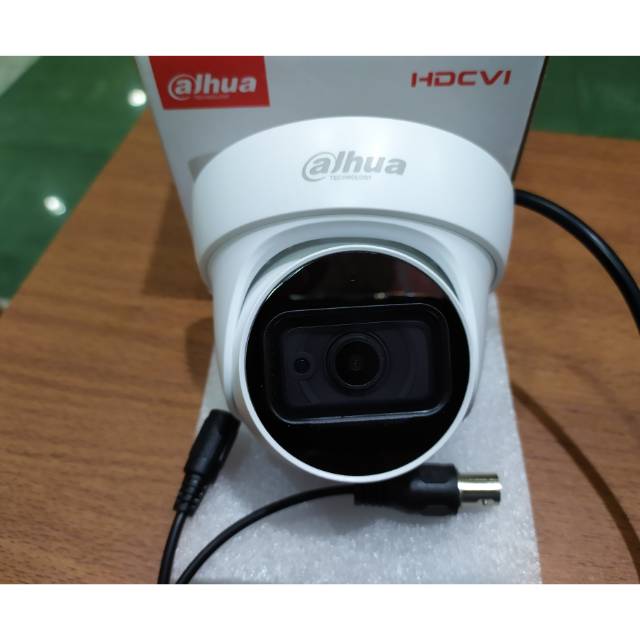

Gambar produk
