Kamera CCTV HIKVISION 5MP Outdoor DS-2CE17H0T-IT1F

Detail Kamera CCTV HIKVISION 5MP Outdoor DS-2CE17H0T-IT1F

CAMERA CCTV OUTDOOR HIKVISION DS-2CE17HOT-IT1F 5MP
 High quality imaging with 5 MP, 2560 × 1944 resolution
 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 Up to 30 m IR distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)
 Garansi HIKVISION 2TAHUN SERVICE DAN SPARE PART

Specification
Camera
Image Sensor 5 MP CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
Resolution 2560 (H) × 1944 (V)
Min. illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
2D DNR Yes
Interface
Video Output TVI/AHD/CVI/CVBS
General
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Max. 4.3 W
Protection Level IP67
Material Front Cover: Metal
Main Body: Plastic
IR Range Up to 30 m
Communication HIKVISION-C
Dimensions 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
Weight Approx. 330 g (0.73 lb.)

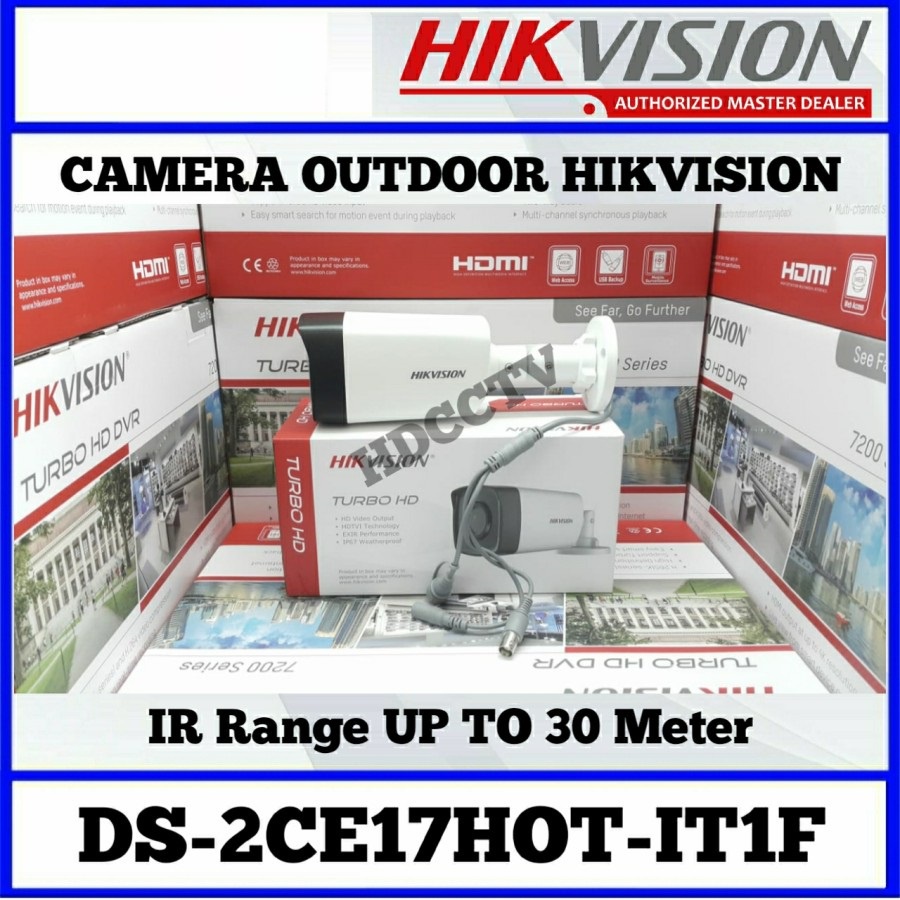

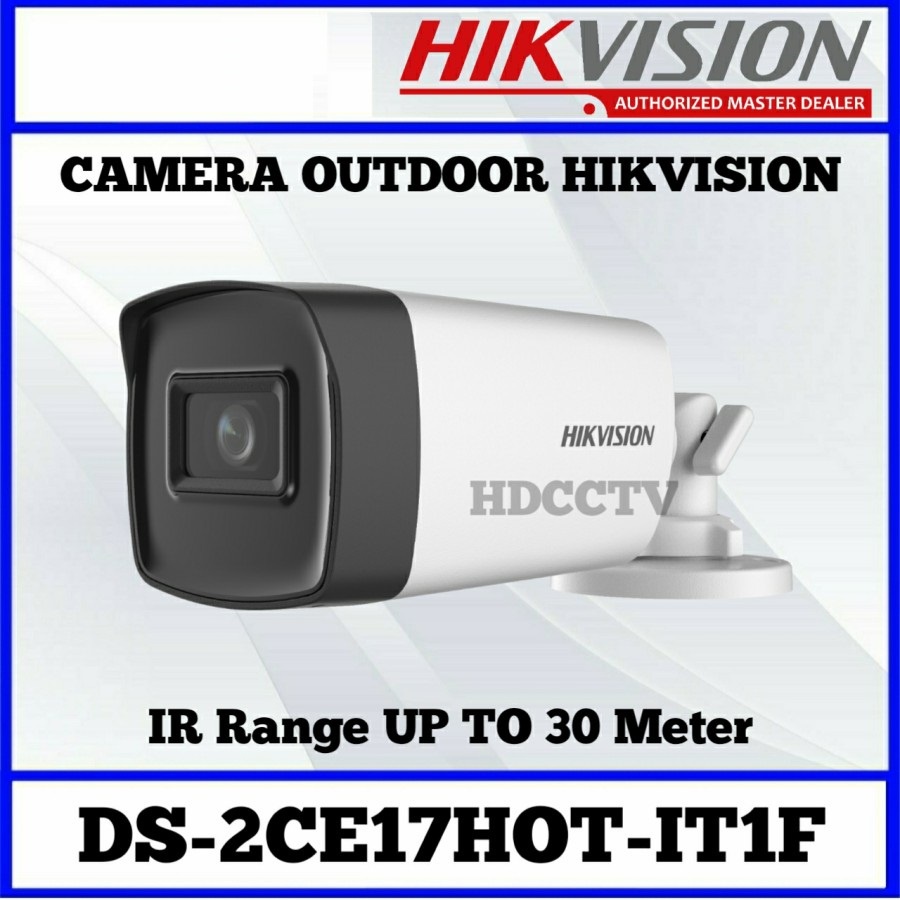

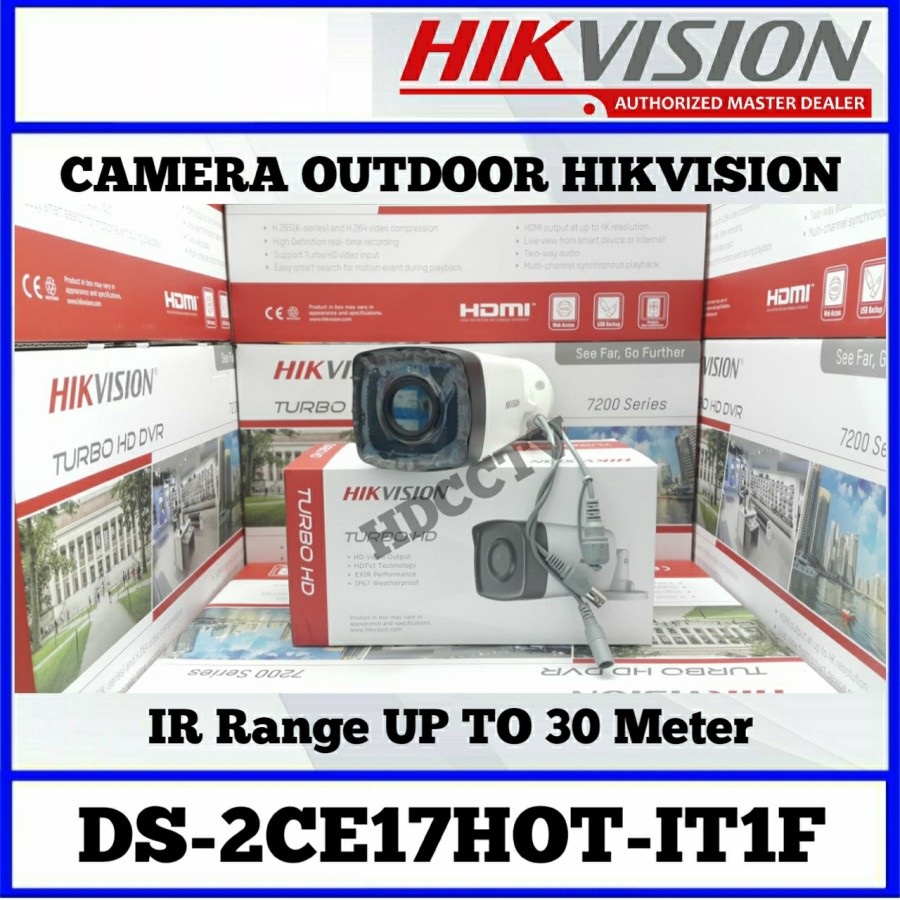

Gambar produk
