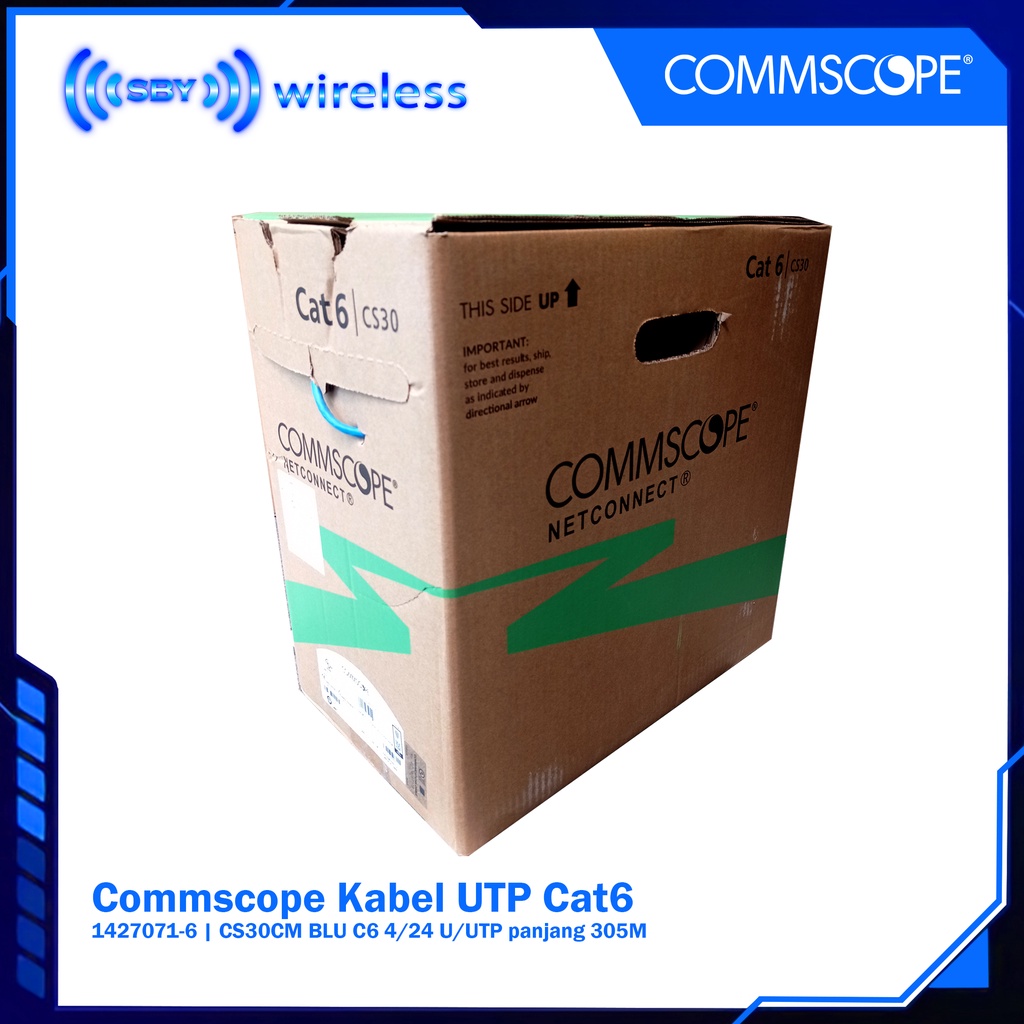

Kabel UTP CAT6 Commscope 1427071-6 | CS30CM BLU C6 4/24 U/UTP RIB 305M

Detail Kabel UTP CAT6 Commscope 1427071-6 | CS30CM BLU C6 4/24 U/UTP RIB 305M

Kabel UTP Category 6 merk COMMSCOPE AMP Original berkualitas tinggi.
Panjang kabel 1000feet (305m).

Product Details COMMSCOPE AMP UTP Cable Cat 6 :
1427071-6 | CS30CM BLU C6 4/24 U/UTP RIB 305M

Copper Cable, category 6, 4 pair, UTP, CM rated, 24 AWG, 305 m reel in
box, blue


Product Classification
Regional Availability : Asia
Portfolio : NETCONNECT®
Product Type : Twisted pair cable
harga normal silahkan WA Marketing 081362222657
Beli langsung bisa ke alamat :
Surabaya Wireless
RUKO , Jalan Dukuh Kupang XX No. 54A , Surabaya
General Specifications
Product Number : CS30CM
ANSI/TIA Category : 6
Cable Component Type : Horizontal
Cable Type : U/UTP (unshielded)
Conductor Type, singles : Solid
Conductors, quantity : 8
Jacket Color : Blue
Pairs, quantity : 4
Transmission Standards :
ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Dimensions
Cable Length : 304.8 m | 1000 ft
Diameter Over Conductor : 0.978 mm | 0.038 in
Diameter Over Jacket, nominal : 5.588 mm | 0.22 in
Conductor Gauge, singles : 24 AWG

Electrical Specifications
Characteristic Impedance : 100 ohm
dc Resistance Unbalance, maximum : 5 %
9.38 ohms/100 m | 2.859 ohms/100 ft
dc Resistance, maximum 9.38 ohms/100 m | 2.859 ohms/100 ft
Delay Skew, maximum 45 ns
Dielectric Strength, minimum 1500 Vac | 2500 Vdc
Mutual Capacitance at Frequency 5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 68 %
Operating Frequency, maximum 250 MHz
Operating Voltage, maximum 80 V
Propagation Delay, maximum 536 ns/100m @250MHz

Remote Powering
Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the
safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2,
CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications :
Conductor Material Bare copper
Insulation Material Polyolefin
Jacket Material PVC
