KABEL UTP AMP/COMMSCOPE CAT6

Detail KABEL UTP AMP/COMMSCOPE CAT6

UTP Cable cat 6 AMP/COMMSCOPE

COMSCOPE 1427071-2 TE AMP Cable Kabel UTP Cat. 6 Warna Biru
COMSCOPE TE AMP UTP RJ45 Cat. 6 up to 1000 Mbps data rates
Filler Polyethylene
Electrical Characteristics
Impedance 100 15%, 1 MHz to 250 MHz
Propagation delay 536 ns/100 m max. @ 250 MHz
Skew 45 ns/100 m max. @250 MHz
Mutual capacitance 5.6 nF max/100 m
Conductor resistance 66.58 max/1000 m
Mechanical Characteristics
Bend radius The minimum bending radius is 8x outside diameter during installation and 4x
the outside diameter after installation 1"
Operating temperature -20C to 60C
Storage temperature -20C to 80C
Approvals
UL File Number E138034
ETL Certificate RT-001
RoHS Compliant

AMP NETCONNECT Category 6 (CAT6) cables exceed TIA/EIA-568-B.2-1 and ISO/IEC 11801:2002
Class E, IEC61156-5, IEC60332-1-2, EN50288-6-1 and EN50173-1 performance requirements, They
comply with all of the performance requirements for current and proposed applications such as
Gigabit Ethernet, 100BASE-Tx, token ring, 155 Mbps ATM, 100 Mbps TP-PMD, ISDN, analog
(Broadband, Baseband) and digital video and analog and digital voice (VoIP). The cable is available in
white, gray, and blue, and packaged as reel-in-box.

Materials :
Conductors 24 AWG solid bare copper
Insulation Polyethylene, 0.037 in nom dia
Jacket FR PVC,CM
Filler Polyethylene
Electrical Characteristics
Impedance 100 15%, 1 MHz to 250 MHz
Propagation delay 536 ns/100 m max. @ 250 MHz
Skew 45 ns/100 m max. @250 MHz
Mutual capacitance 5.6 nF max/100 m
Conductor resistance 66.58 max/1000 m
Mechanical Characteristics
Bend radius The minimum bending radius is 8x outside diameter during installation and 4x
the outside diameter after installation 1"
Operating temperature -20C to 60C
Storage temperature -20C to 80C
Approvals
UL File Number E138034
ETL Certificate 3162341CRT-001
RoHS Compliant

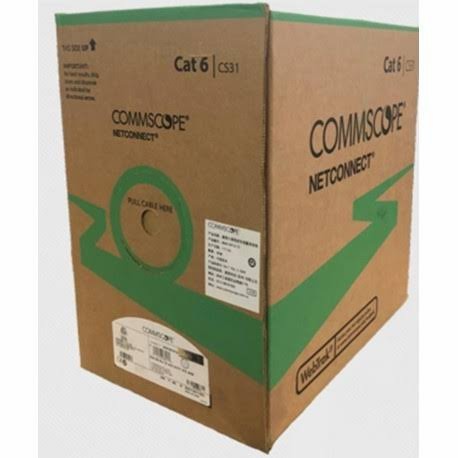

Gambar produk
