KABEL TESTER LAN TELP CABLE NF-388 NOYAFA MULTI PURPOSE NF388 WIREMAP

Detail KABEL TESTER LAN TELP CABLE NF-388 NOYAFA MULTI PURPOSE NF388 WIREMAP

JUAL : KABEL TESTER LAN TELP CABLE NF-388 NOYAFA MULTI PURPOSE NF388 WIREMAP

LAN TESTER ORIGINAL MERK NOYAFA

Features :

Single board computer software watchdog design and reliable operation.
With 8 remote identifiers, more easy to work.
Large screen to display test result clear, simple and easy use.
Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection
Verify RJ45 and BNC conductors and locate the wiring or connection error.
Measure cable length and determine the distance of open circuit.
Automatically time-delay shut off and backlight display function.


Spec :

NF-388
Port: RJ45, RJ11, BNC, USB
Test length: RJ45
Wiremap Type: RJ45, BNC Cable
Tracking Type: RJ45, RJ11, BNC, USB
LED Flash and Loud Speaker

Transmitter ( Emiter ) Unit spec :
Indictor: LCD 53x25 mm, with back light
Tone frequency: 225 Hz
Max. distance of transmission: 2 km
Max. distance of cable map: 300m
Max. working current: Less than 70mA
Tone mode: 2 Tone adjustable
Max. signal voltage: 15Vp-p
Function and faults LCD display: LCD display ( wiremap, Tone, short, No adapter, Low battery )
Cable map indication: LCD (#1-#8)
Shielded indication : LCD ( #9)
Voltage protection: AC 60V/DC 42V
Power : Baterai Kotak DC 9V
size :185x80x32mm

Receiver Unit spec :
Frequency: 225kHz
The Max. working current: Less than 70mA
Ear jack: 1
LED illumination: 2
Power : Baterai Kotak DC 9V
size :160x70x40mm

Remote Identifier (Wiremap) unit spec :
Compatible connectors: RJ11, RJ45, Coacial, USB
Remote units: 8
size : 107x30x24mm

Note :
Penting Untuk Diketahui :
Saat test kabel untuk kedua ujung kabel harus dialat tester
Jangan ada salah satu kepala kabel masih dikomputer atau
Alat switch hub modem / router atau alat apapun yang mempunyai
Arus listrik yang akan mengakibatkan kerusakan pada tester “Terima Kasih”
NB : Jangan digunakan pada alat yang mengandung arus listrik,
Bila konsleting tidak ada garansi.

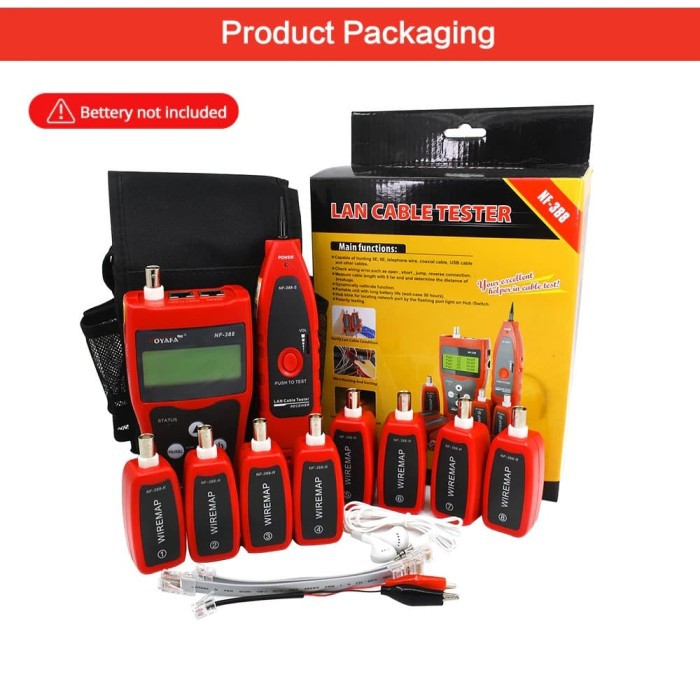

isi paket :

1 x Transmitter
1 x Receiver
8 x Wiremap
1 x Earphone
1 x Kabel Lan
1 x Kabel telp
1 x Kabel telp - aligator
1 x Manual
1 x Bag / Pouch
Tidak Dapat Baterai 9V

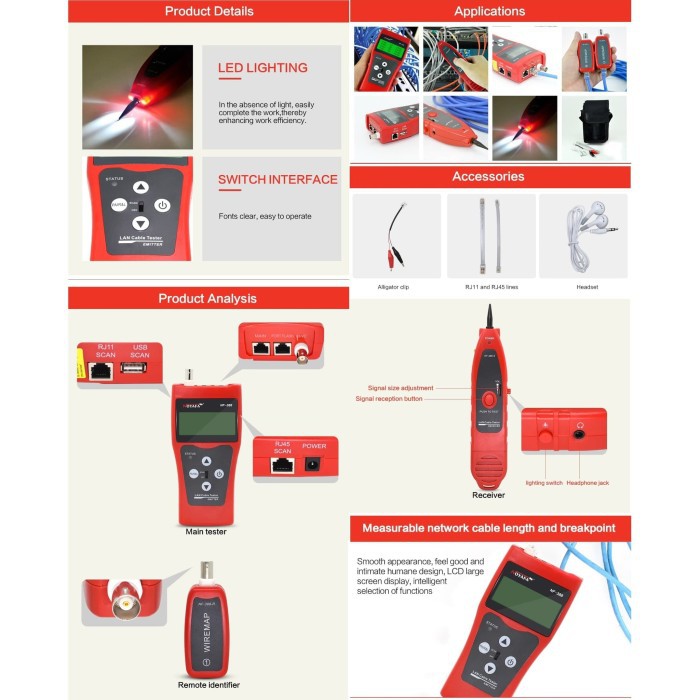

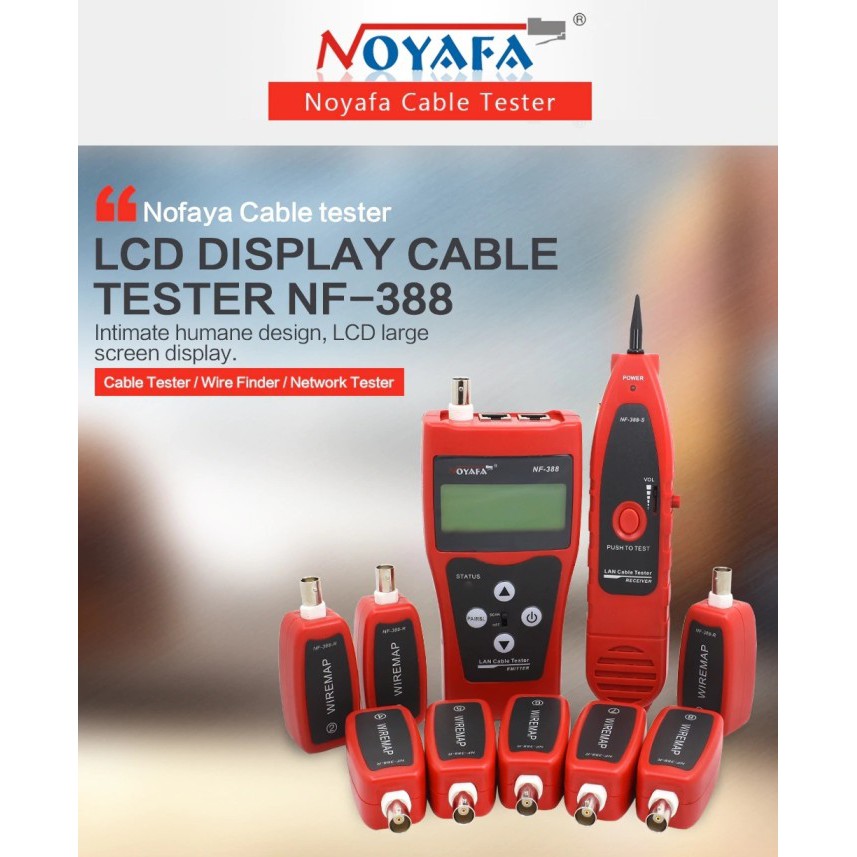

Gambar produk
