Kabel STP / FTP Cat5e Commscope ,219413-2 | CS24CM WHT C5E 4/24 F/UTP RIB 305M

Detail Kabel STP / FTP Cat5e Commscope ,219413-2 | CS24CM WHT C5E 4/24 F/UTP RIB 305M

Kabel STP / FTP Cat5e Commscope
Panjang 305 meter
Kabel STP/ FTP Category 5e merk AMP Commscope .
Panjang kabel 1000feet (305m). warna putih, ada kabel kawat grounding dan shield alumunium foil

Detil Specification:
219413-2 | CS24CM WHT C5E 4/24 F/UTP RIB 305M

Product Classification
Regional Availability : Asia | EMEA
Portfolio : CommScope®
Product Type : Twisted pair cable

General Specifications
ANSI/TIA Category : 5e
Cable Component Type : Horizontal
Cable Type : F/UTP (shielded)
Conductor Type, singles : Solid
Conductors, quantity : 8
Jacket Color : White
Pairs, quantity : 4
Transmission Standards : ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

Dimensions
Cable Length : 304.8 m | 1000 ft
Diameter Over Jacket, nominal : 6.096 mm | 0.24 in
Conductor Gauge, singles : 24 AWG

Electrical Specifications
Operating Voltage, maximum : 80 V
Remote Powering
Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications
Conductor Material : Bare copper
Insulation Material : Polyolefin
Jacket Material : PVC
Shield (Tape) Material : Aluminum/Polyester

Environmental Specifications
Operating Temperature : -20 °C to +60 °C (-4 °F to +140 °F)
EN50575 CPR Cable EuroClass Fire Performance : Eca
Flame Test Method : CM

Regulatory Compliance/Certifications
Agency Classification
CENELEC EN 50575 compliant, Declaration of Performance (DoP) available
ROHS Compliant
CHINA-ROHS Below maximum concentration value

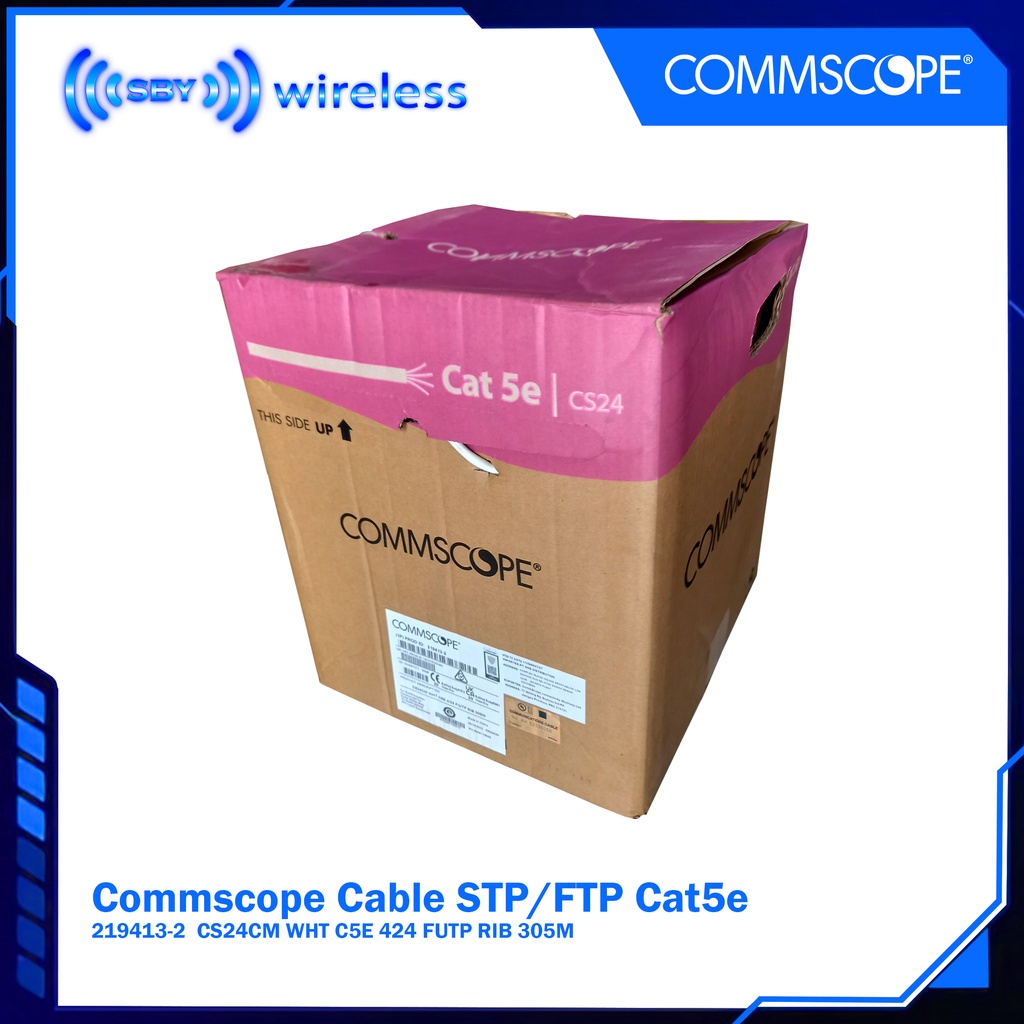

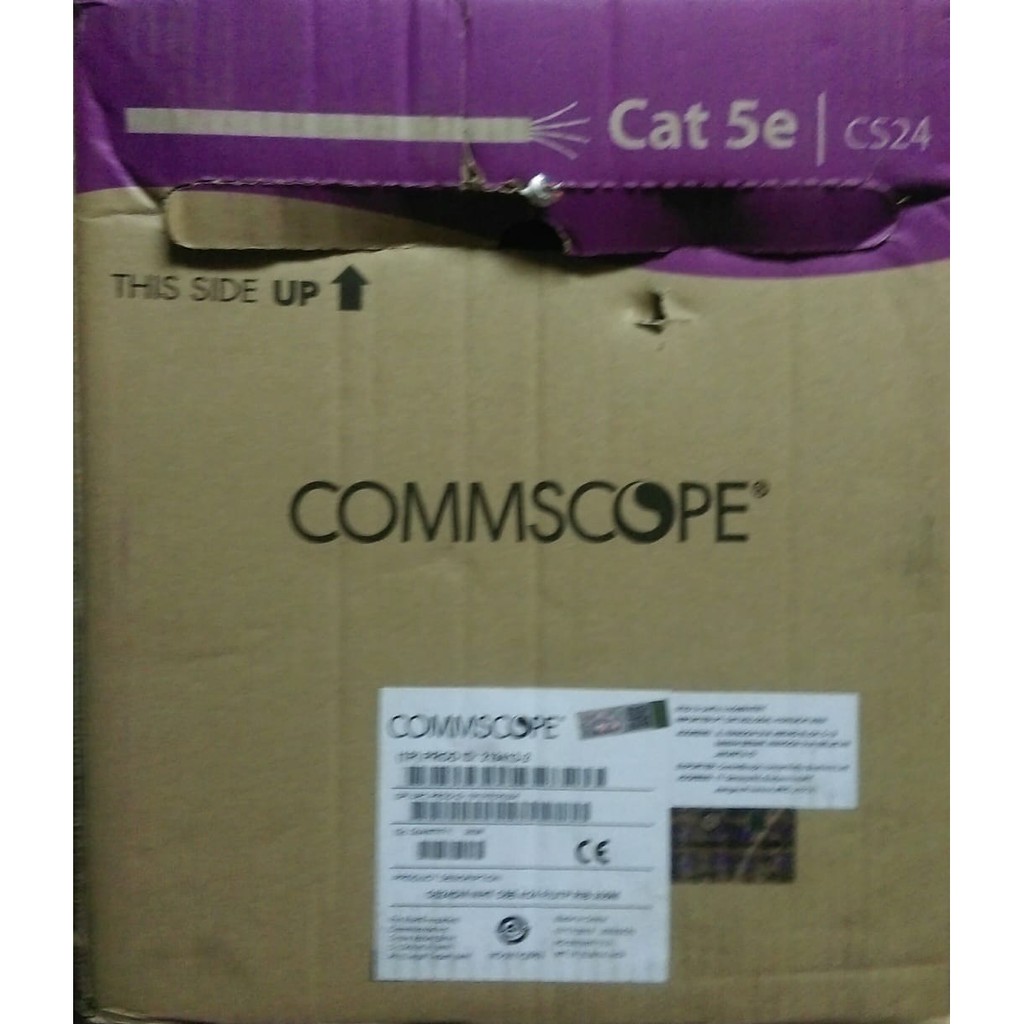

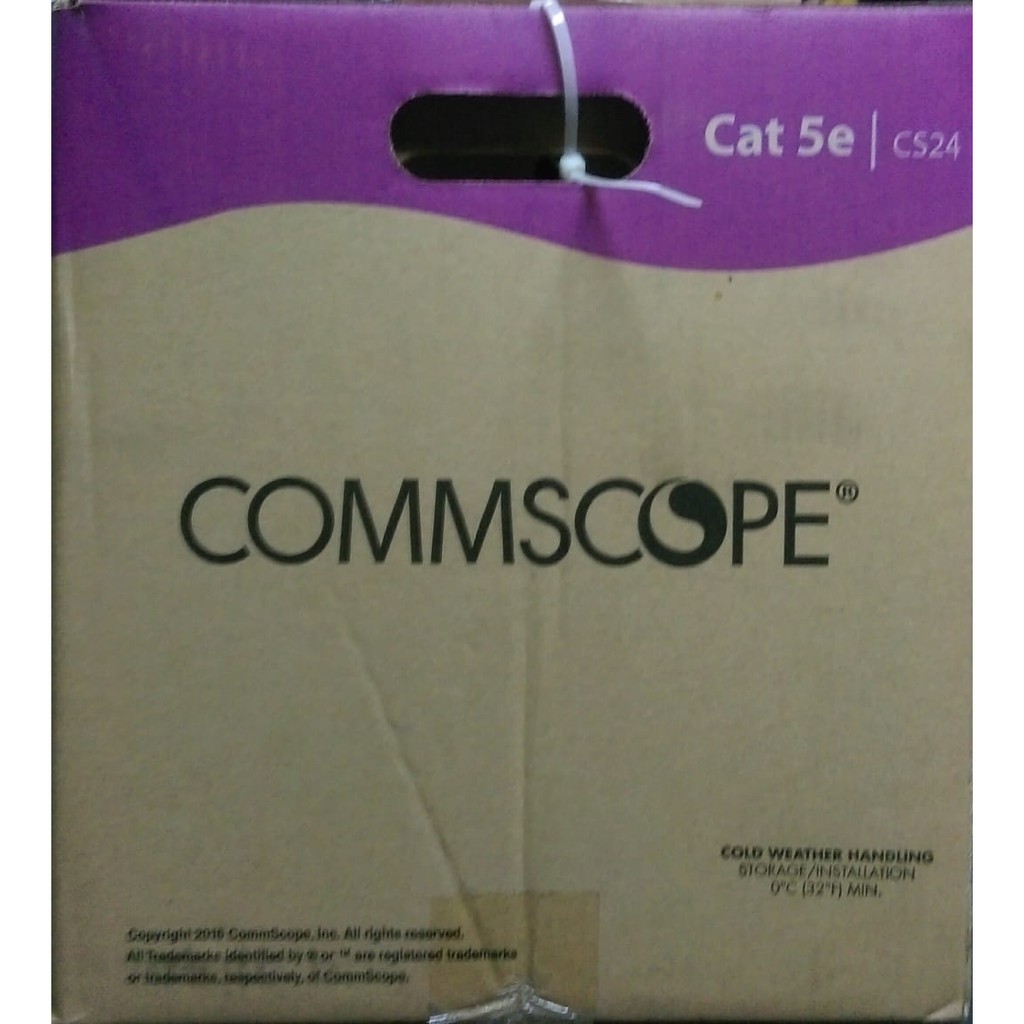

Gambar produk
