Kabel RG59+power 300meter Proview CCTV cable

Detail Kabel RG59+power 300meter Proview CCTV cable

Description:
Series RG59, 80%Shield braided coaxial cable are designed to support such technologies as extended bandwidth satellite service, high definition TV signals, CATV,CCTV and two-way cable modems. The shielding consists of an inner aluminum/ polyester foil bonded to the insulation, an aluminum
36 AWG braid.

Fitur singkat:
Conductor: Copper clad steel
AWG(mm): 20(0.81)
Dielectric Insulation: Foam PE
Diameter(mm): 3.66±0.1
Inner Shield: Aluminum Foil
Braid wire: 36AWG Aluminum 112*0.12
Weave cover(%): 80%
Out Shield: NO
Jacket: PVC New
Diameter(mm): 5.9±0.2

Power Cable
Conductor: Copper clad aluminium
AWG(mm): 7*0.37
Dielectric Insulation: Red&Black PE
Diameter(mm): 1.8±0.05mm
Shield Efficiency: 5-1000MHZ>90dB
Impedance(Ohm): “75±3“
Velocity of Propagation(%): 83

UV Stability
Voltage Rating: <80V
Structural Return Loss(dB): 5-1000>20, 1001-3000>16

======================================

Beli = No retur
Sebelum packing sudah test 100% normal

Bisa tambah packing bubble wrap
Supaya aman sampai tujuan

HAPPY SHOPPING

#kabel #cctvkabel #kabelcctv #cctvcable #rg59 #kabelrg59 #proview #kabelproview

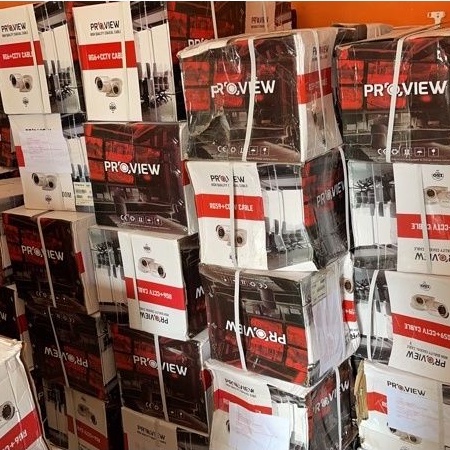

Gambar produk
