Kabel Lan RJ45 Cat5e STP Outdoor ORIGINAL BELDEN USA 305 Meter

Detail Kabel Lan RJ45 Cat5e STP Outdoor ORIGINAL BELDEN USA 305 Meter

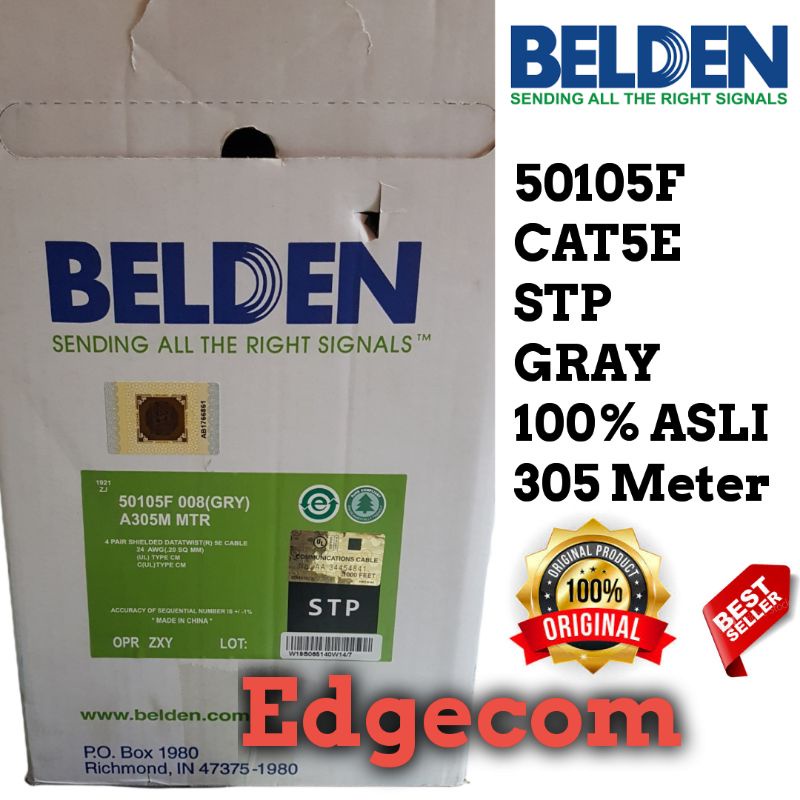

Kabel Belden STP OUTDOOR Panjang 305Meter (1000Feet) 1 Roll
Warna Abu-Abu

Kode : 50105F GRY

Industrial Ethernet cables used in interconnecting Industrial Ethernet Switches, IP controllers, media convertors,
distributed control system, programmable logic controller and transmitting industrial protocol data signals. These cables
are suitable for transmitting 1000BASETX Gigabit Ethernet, 100BASET Fast Ethernet, 100BaseVG ANYLAN, 155ATM,
622ATM, RS422, 250MHz Category 5e, EtherCAT. These are highly durable & ruggedized cables for both indoor and
outdoor.
General Reference Standards
11801 Category 5e, TIA/EIA 568C.2 Cat 5e
IEC 60332325, UL 1685, UL 1581, ICEA S 73532, IEC 603321
EU RoHS

Physical Characteristics
Conductor Size 24 AWG
Conductor Material Solid Bare Copper
Insulation Material PO Polyolefin
Number of Pairs 4 Pairs

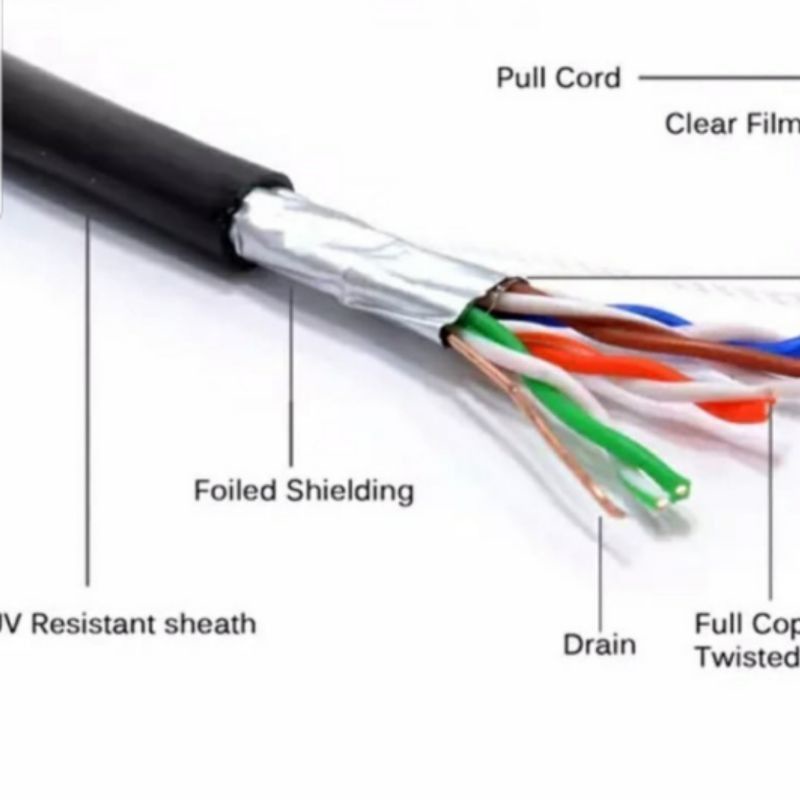

Shielding Aluminium Foil Polyester Tape with TC drain wire
Jacket Material PVC Polyvinylchloride
Suitability Indoor and Outdoor
UV/Sun Light Resistance Yes
Oil Resistance Yes
Operating Temperature Range 20C To +75C

Gambar produk
