Kabel LAN Commscope FTP Cat.6A 305m LSZH ORIGINAL | AMP cat.6

Detail Kabel LAN Commscope FTP Cat.6A 305m LSZH ORIGINAL | AMP cat.6

Untuk menghindari pembatalan, mohon menanyakan stok produk sebelum membeli.
Berat : 20kg, disarankan menggunakan ekspedisi JTR (JNE cargo) agar menghemat ongkir. Atau menggunakan ekspedisi pilihan pembeli. Dalam kota Surabaya, silakan Gosend/Grab
============================================

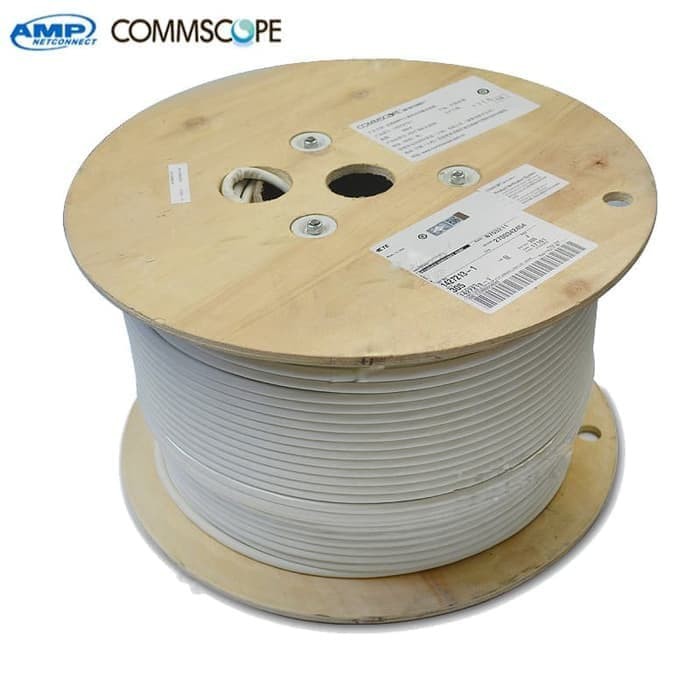

Kabel Commscope / AMP FTP Cat.6A 305m LSZH (ASLI)
Kabel COMMSCOPE FTP CAT.6A 305m
warna jacket = putih

info :
AMP by Tyco Electronic diakusisi oleh perusahaan COMMSCOPE USA pada Tahun 2016

1859218-2 | TE640Z1F-WTM2-AP
640 Series Copper Cable, category 6A, 4 pair, F/UTP, LSZH, 23 AWG, 1000 ft reel, white

https://www.commscope.com/catalog/cables/product_details.aspx?id=57726

Product Classification
Portfolio NETCONNECT"
Product Series 640 Series
Product Type Twisted pair cable
Regional Availability Asia | Australia/New Zealand | Latin America

Construction Materials
Jacket Material Low Smoke Zero Halogen (LSZH)
Conductor Material Bare copper
Insulation Material Polyolefin
Shield (Tape) Material Aluminum/Polyester

Dimensions
Cable Length 305 m | 1000 ft
Cable Weight 60.10 kg/km
Diameter Over Jacket, nominal 7.200 mm | 0.283 in

Electrical Specifications
ANSI/TIA Category 6A
Characteristic Impedance 100 ohm
Characteristic Impedance Tolerance 15 ohm
dc Resistance, maximum 66.58 ohms/km
Delay Skew, maximum 45 ns
Mutual Capacitance 5.6 nF/100 m @ 500 MHz
Nominal Velocity of Propagation (NVP) 72 %
Operating Voltage, maximum 300 Vac
Transmission Standards ANSI/TIA-568-C.2 | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Environmental Specifications
Smoke Test Method IEC 61034-2
Acid Gas Test Method IEC 60754-2
Flame Test Method IEC 60332-1
Operating Temperature -20 C to +60 C (-4 F to +140 F)
Safety Standard ETL | UL

General Specifications
Cable Type F/UTP (shielded)
Packaging Type Reel
Pairs, quantity 4
Cable Component Type Horizontal
Jacket Color White
Product Number 640Z
Conductor Gauge, singles 23 AWG

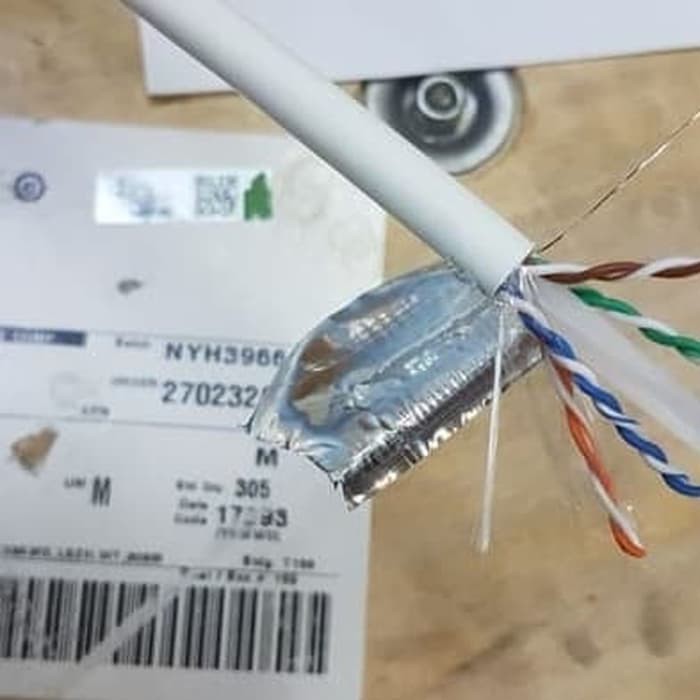

Gambar produk
