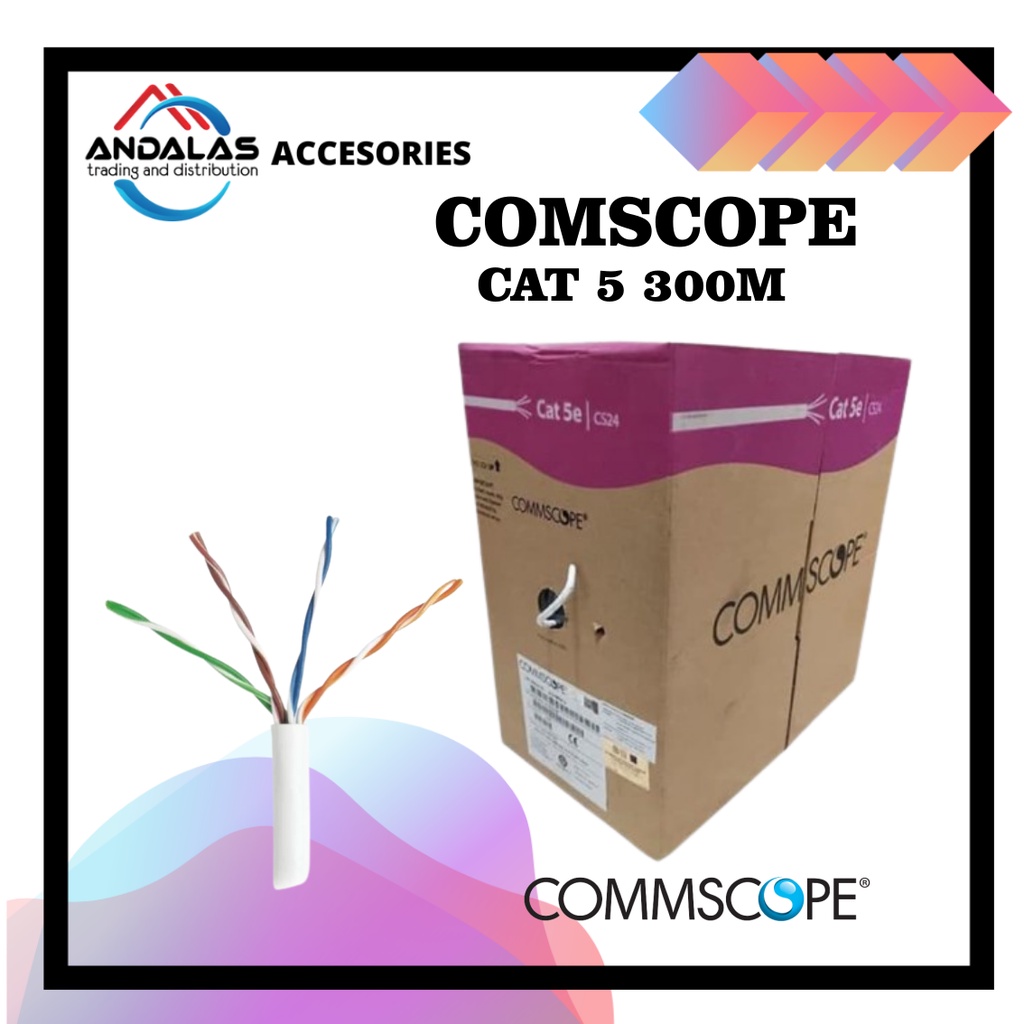

kabel lan commscope Cat 5 UTP INDOOR

Detail kabel lan commscope Cat 5 UTP INDOOR

Video perkenalan produk kabel lan commscope Cat 5 UTP INDOOR. Sumber: Shopee.

COMMSCOPE Enhanced Category 5e (Cat5e) cables exceed TIA/EIA-568-B.2 Enhanced Category 5
(Category 5e) and ISO/IEC 11801 Class D, IEC61156-5, IEC60332-1, EN50288 and EN50173-1 performance
requirements, providing extra headroom for a more robust cabling system. They comply with all of the performance
requirements for current and proposed applications such as Gigabit Ethernet, 100BASE-Tx, token ring, 155 Mbps
ATM, 100 Mbps TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and analog and digital voice (VoIP).

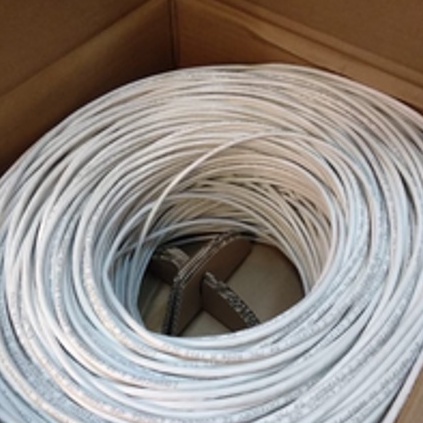

The cable is available in gray and packaged as reelex box.

Materials
Conductors 24 AWG solid bare copper
Insulation Polyethylene, 0.034 0.0036 in nom dia
Jacket PVC, 0.189 0.026 in nom dia
Electrical Characteristics
Impedance 100 15%, 1 MHz to 200 MHz
Propagation delay 538 ns/100 m max. @ 100 MHz
Skew 25 ns max
Mutual capacitance 5.6 nF max/100 m
Conductor resistance 9.38 max/100 m
Mechanical Characteristics
Bend radius The minimum bending radius is 8x outside diameter during installation and 4x the outside
diameter after installation 1"
Operating temperature -20C to 60C
Storage temperature -20C to 80C
ApprovalsJ

Gambar produk
