KABEL DMS-59 TO 2 VGA female

Detail KABEL DMS-59 TO 2 VGA female

Jual : KABEL DMS-59 TO 2 VGA female

Panjang : 20 - 22cm

The DMS-59 connector is used by ATI, NVIDIA, and Matrox for video cards sold in Lenovo Thinkcentres, Viglen Genies and Omninos, Dell, HP, and Sun computers.

Video Y Splitter Cable, DMS-59 pin to Dual VGA
For Dual Monitor setups or as a DMS-59pin to VGA Adapter
Consists of a Male DMS-59 pin to twin female VGA splitter

This cable will convert a DMS-59 video card to dual VGA

- Converts the DMS-59 port to standard VGA.
- Can be used with VGA & SVGA monitors, flat panels and projectors.
- The DMS-59 side is male and has 59 pins (3 rows of 15 and 1 row of 14 two pins).
- The VGA side is female for the 15 pin monitor cables.

DMS-59 is a 59-pin electrical connector generally used for computer video cards.
It provides two VGA outputs on a single connector. An adapter cable is needed for conversion from DMS-59 to DVI or VGA, and different types of adapter cables exist.
The connector DMS59 is four pins high and 15 pins wide, with a single pin missing from the top row, in a D-shaped shell, with thumbscrews.

The application for DMS-59 is to support a higher density of video displays, in a similar amount of connector space to a DVI connector.
DMS-59 supports two DVI Dual Link digital channels or two VGA analog channels from a single connector.
The compact size lets a half-height card support two high resolution displays, and a full-height card (with two DMS-59 connectors) up to four high resolution displays.


Package of Content : ( weight : 140 grams )
1 x MOLEX DMS-59 TO 2 VGA female Adapter Cable

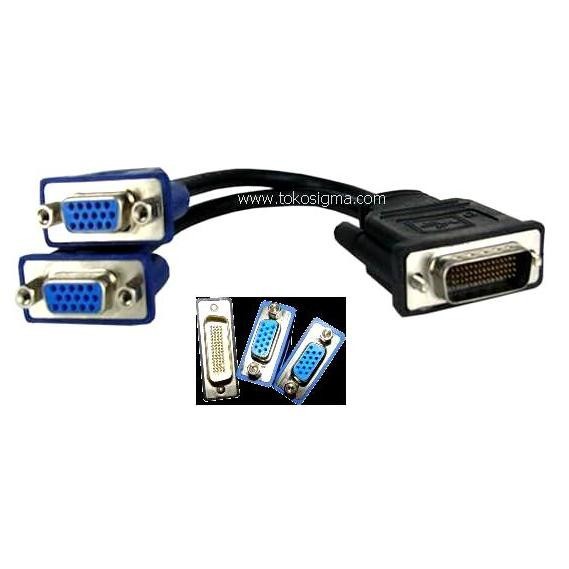

Gambar produk
