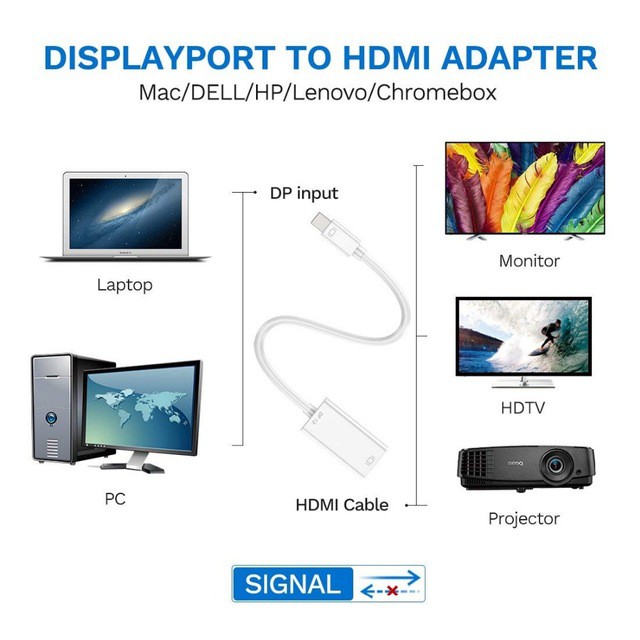

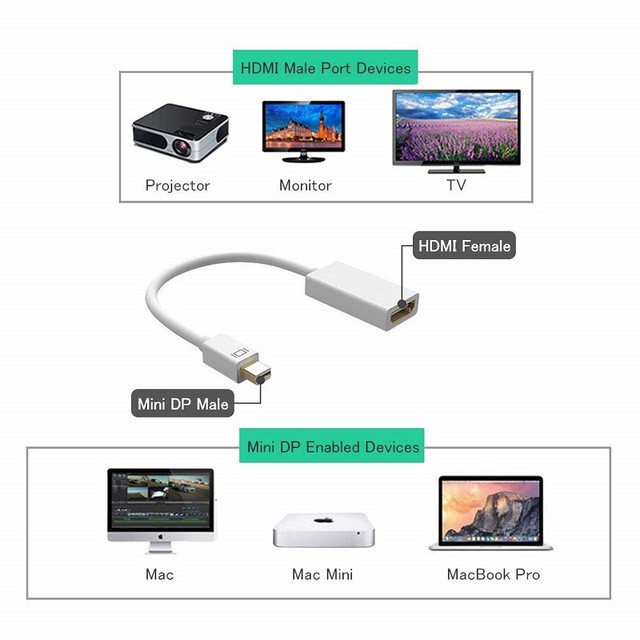

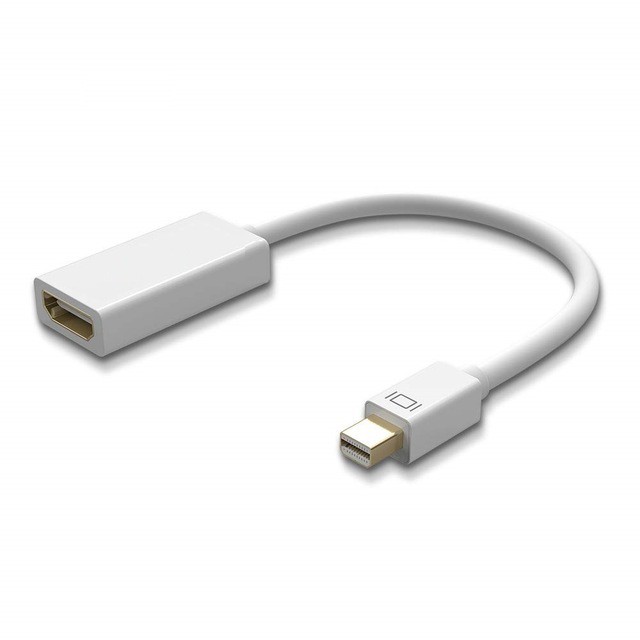

Kabel Converter Mini Display Port to HDMI

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Kabel Converter Mini Display Port to HDMI

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:Game Mod PrimeLihat semua produk Audio oleh Game Mod Prime

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail Kabel Converter Mini Display Port to HDMI

Electrical Specifications

• Voltage Rating: 30V
• Conductor Resistance: at 20°C max 30AWG 376.96Ω/km
• Insulation Resistance: 10M-KM Min at 20°C DC 500V(EIA-364-21)
• Dielectric Strength: AC 500V/1 minute no breakdown(EIA-364-20)
• Impedance: Pairs (differential mode) 100±50Ω
• Attenuation (Max): 5.02dB at 100~450MHz; 7.695dB at 1GHz; 12.595dB at 2GHz; 17.495dB at 3GHz; 22.395dB at 4GHZ; 27.295dB at 5GHz; 32.195dB at 6GHz; 37.095dB at 7GHz
• Return Loss (Min): 15.00 at 100~675MHz; 12.90 at 7GHz; 9.20 at 2GHz; 7.04 at 3GHz; 5.5 at 4GHz; 4.31 at 5GHz; 3.33 at 6GHz; 2.51 at 7GHz
• NEXT (MAX): -36dB at 0.1~1.35GHZ; -23.44dB at 2GHz; -20.80dB at 3 GHz; -18.93dB at 4GHz; -17.48dB at 5GHz; -16.29dB at 6GHz; -15.28dB at7GHz
• FEXT: -26dB / Cable at 100~7000MHz (Max)
