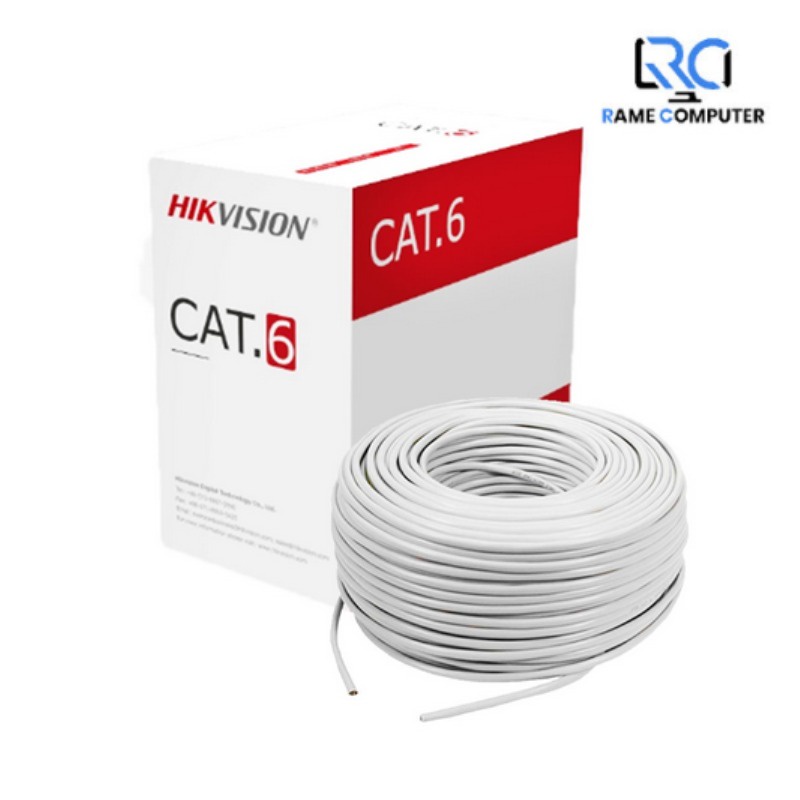

Kabel CCTV HIkvision DS-1LN6U-W/CCA CAT6 UTP Network Cable 305m

Detail Kabel CCTV HIkvision DS-1LN6U-W/CCA CAT6 UTP Network Cable 305m

Key Features:
- 305 m CAT6 UTP Network Cable (CCA,0.565 mm)
- 305 m cost-effective CAT6 CCA network cable
- Full diameter and full length
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance

Spesifikasi
General
Core Color: 1 Blue & White/ Blue 2 Orange & White/ Orange,3 Green & White/ Green 4 Brown & White/ Brown,
Packing: Carton
Carton Dimension: 41x41x24cm
Packing Length: (305±1.5)m
Rip-Cord: Yes
Drain Wire: No
Sheath Physical Properties:
Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%, Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
Electrical Characteristics (20℃)
1.0-100.0MHz Impedance(Ω) 100±15,100 - 250MHz Impedance(Ω) 100±25,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor Resistance Unbalance(%) max 2,
Conductor
Material: CCA（Copper content：27%）
Nom.O.D.(Mm): 0.585±0.01
Insulation
Material: Solid HDPE
Diameter: 1.05±0.05mm
Sheath
Thickness: 0.50±0.05 mm
External O.D.: 6.0±0.30 mm
Surface: Clean, Frap, Satiation
Material: FR-PVC(complies RoHS)
Color: White RAL9003
Surface Printing
Letter Height: 2.5±0.2mm
Color: Black
Print Error & Space: ≤±0.5%，1m

Gambar produk
