Detail KABEL Belden RG58 RG-58 RG 58 BELDEN 8219 Black Kabel Coaxial 20 AWG ASLI ORI roll 50ohm roll

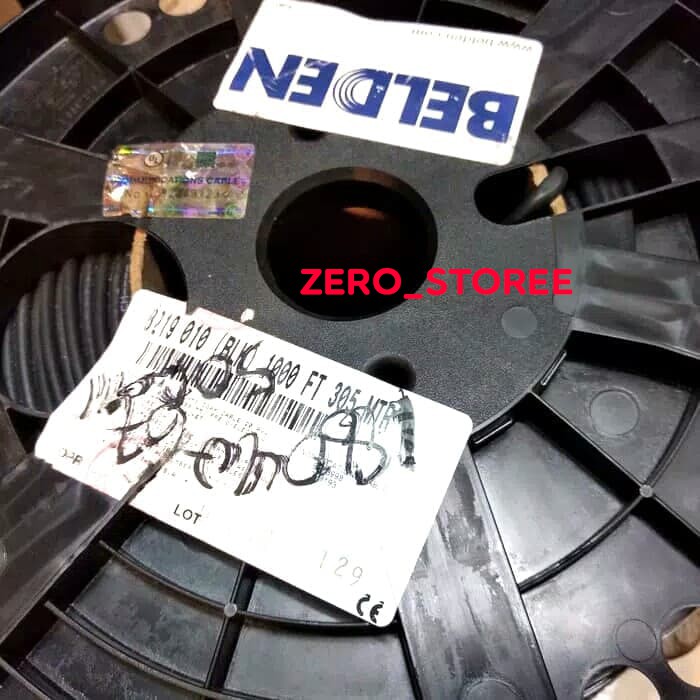

BARANG ORIGINAL RESMI ASLI BELDEN RG58 / 8219
HARGA UNTUK 1ROLL

Specification :
Cable Type : RG-58A/U
Dielectric Insulation : PE
Center Conductor Material : Copper
Center Conductor Diameter : 0.94 mm
Center Conductor Construction : Stranded
Nominal Core O.D. : 2.9 mm
Nominal O.D. : 4.95 mm
VOP : 73 %
Shield % : 96% braid
Nominal Capacitance (pF/ft) : 26.5
Loss @ 50 Mhz 3.1 dB
Loss @ 100 MHz 4.5 dB
Loss @ 400 MHz 10 dB
Loss @ 900 MHz 16.6 dB
Loss @ 1000 MHz 18.1 dB
Conductor Size AWG : 20 AWG
Impedance : 50 ohm
Jacket Color: Black
Jacket Material : PVC ( Polyvinyl Chloride)
No. of Strands x Strand Size : 19 x 32AWG
Lenght : 305 mtrs / bulk roLL
Mfg. Warranty : ORGINAL BELDEN
Strip Tool : #63427, 494357 or 46004
