KABEL BELDEN RG-58 8219 ORIGINAL 1 ROLL NEW

Elektronik > Elektronik Lainnya > KABEL BELDEN RG-58 8219 ORIGINAL 1 ROLL NEW
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail KABEL BELDEN RG-58 8219 ORIGINAL 1 ROLL NEW

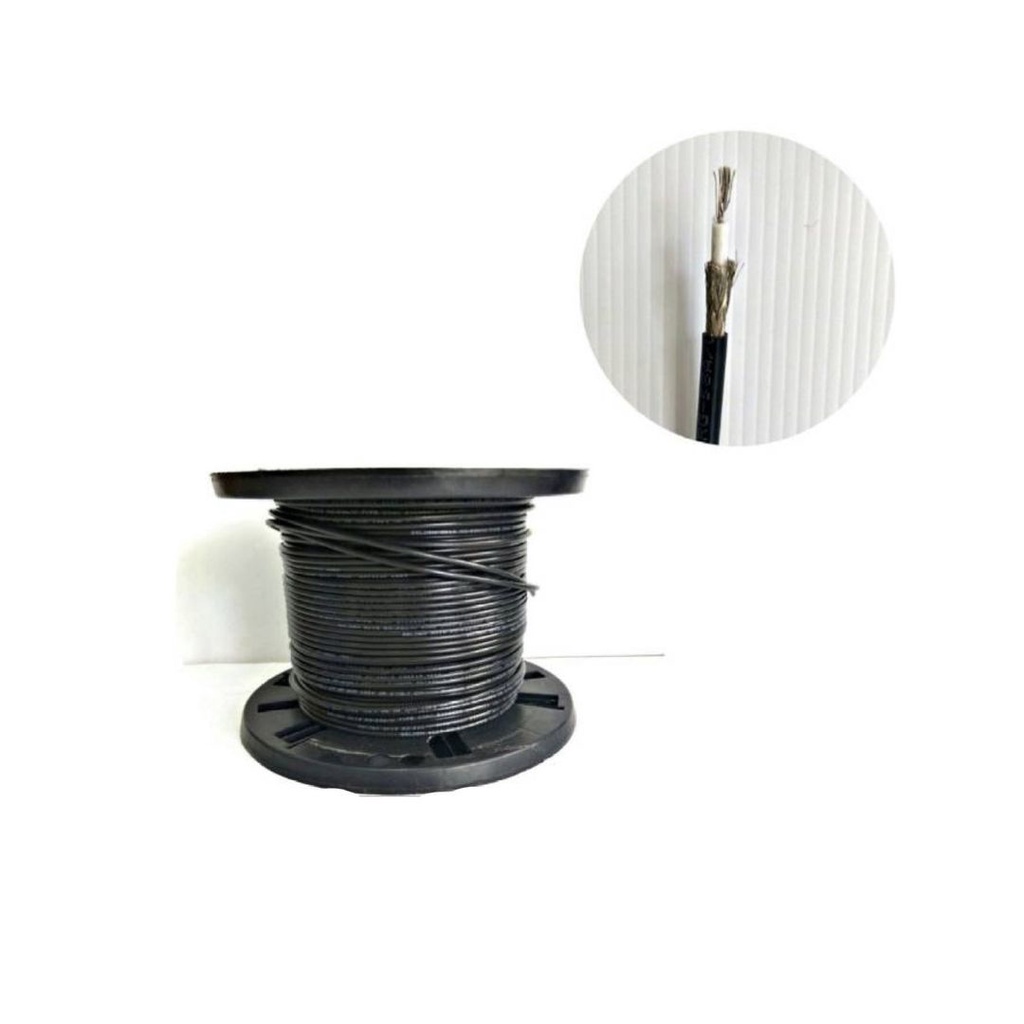

The Belden 8219 RG58/ A/ U coaxial cable ( black) features a 96 percent braided shield to prevent RF loss.
This 50 Ohm coax cable has a stranded center conductor.
The RG58 cable also has a foam polyethylene dielectric.
The black braided coax cable transmission line is MSHA approved.

Specification :
Cable Type : RG-58A/U
Dielectric Insulation : PE
Center Conductor Material : Copper
Center Conductor Diameter : 0.94 mm
Center Conductor Construction : Stranded
Nominal Core O.D. : 2.9 mm
Nominal O.D. : 4.95 mm
VOP : 73 %
Shield % : 96% braid
Nominal Capacitance (pF/ft) : 26.5
Loss @ 50 Mhz 3.1 dB
Loss @ 100 MHz 4.5 dB
Loss @ 400 MHz 10 dB
Loss @ 900 MHz 16.6 dB
Loss @ 1000 MHz 18.1 dB
Conductor Size AWG : 20 AWG
Impedance : 53.5 ohm
Jacket Color: Black
Jacket Material : PVC ( Polyvinyl Chloride)
No. of Strands x Strand Size : 19 x 32AWG

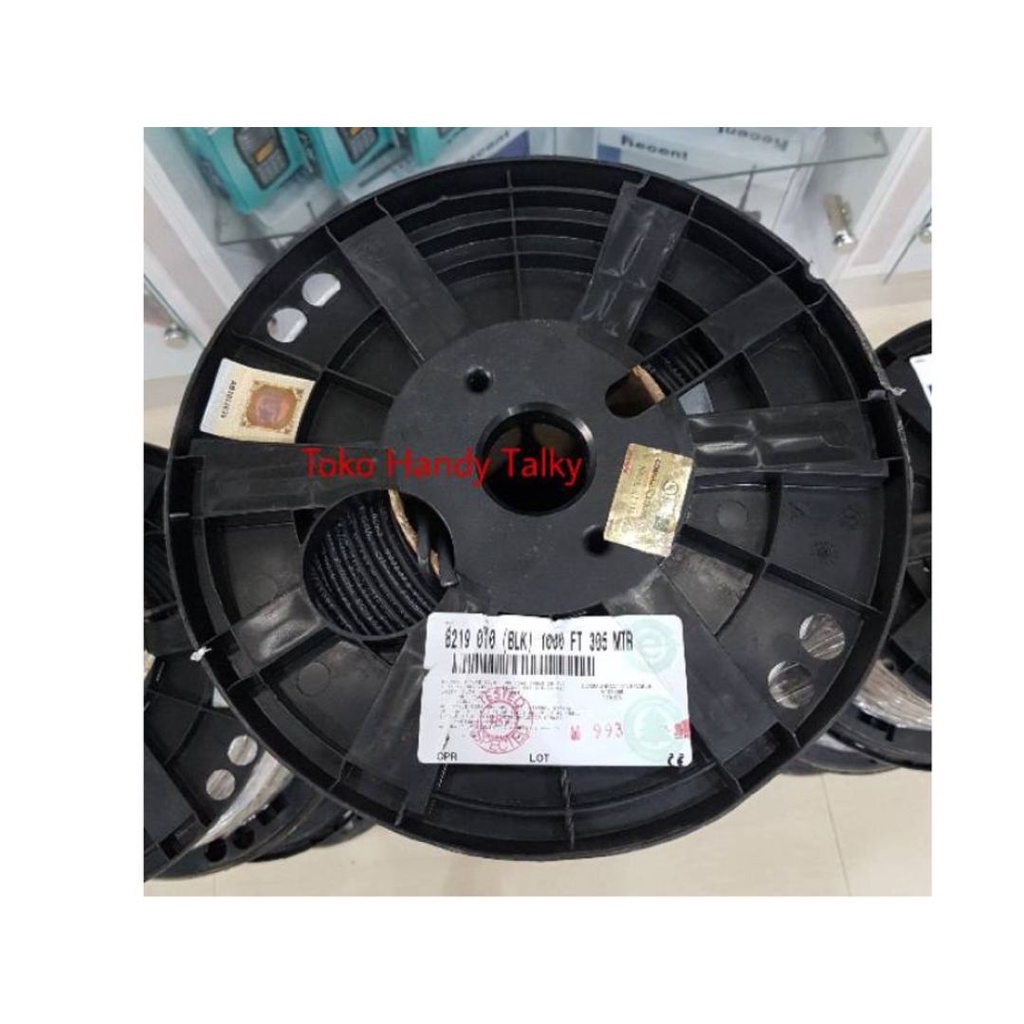

Lenght : 305 mtrs / bulk roLL
Mfg. Warranty : ORGINAL BELDEN
Strip Tool : 63427, 494357 or 460047

#kabelbelden #kabelrg58 #kabelcoaxial #kabelbeldenori
